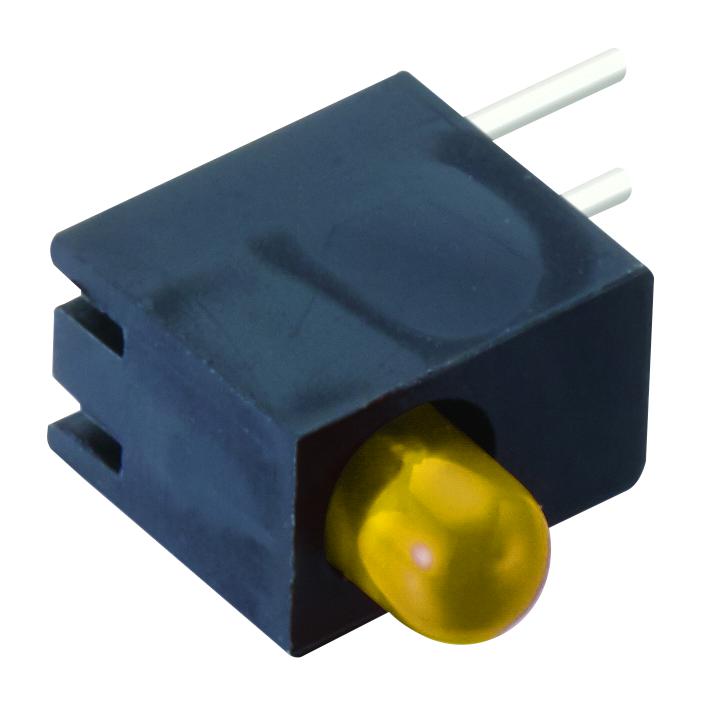

MULTICOMP PRO L514HYD Yellow LED
This 3mm round flangeless LED features GaAsP on GaP with a yellow diffused lens, emitting at 587 nm wavelength with a 50° viewing angle. Designed for high efficiency, it operates between -40°C to +85°C, offering a luminous intensity of 20 to 45 med at 20mA current. The LED has a forward voltage of 1.7 to 2.6 V, power dissipation up to 85 mW, and a maximum reverse voltage of 5 V. It is suitable for various illumination and indicator applications requiring reliable performance in compact size.
MULTICOMP PRO L514HYD Yellow LED Specifications:
- Diameter: 3.0mm
- Lens Colour: Yellow Diffused
- Peak Wavelength: 587 nm
- Viewing Angle: 50°
- Luminous Intensity: 20-45 med at 20mA
- Forward Voltage: 1.7-2.6 V
- Power Dissipation: up to 85 mW
- Peak Forward Current: 100 mA
- Recommended Operating Current: 20 mA
- Reverse Voltage: 5 V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
Buy the Buy Multicomp Yellow LED Part Number L514HYD Online
Purchase the reliable Multicomp yellow LED online today and enhance your electronic projects with a compact, efficient, and durable lighting component. The 3mm round, flangeless design offers a wide viewing angle of 50°, providing bright yellow illumination at 587 nm wavelength. Operating at 20mA, it ensures excellent brightness and low power consumption. Suitable for various indicator and illumination applications, this LED features a maximum reverse voltage of 5V and an operating temperature range of -40°C to +85°C. Order now for fast delivery and superior quality.
Buy Multicomp yellow indicator LED Part Number L514HYD now and enjoy reliable performance for your illumination projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO L514HYD?
You can click on the BUY or RFQ button to purchase L514HYD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part L514HYD?
You can download the L514HYD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of L514HYD?
MULTICOMP PRO
