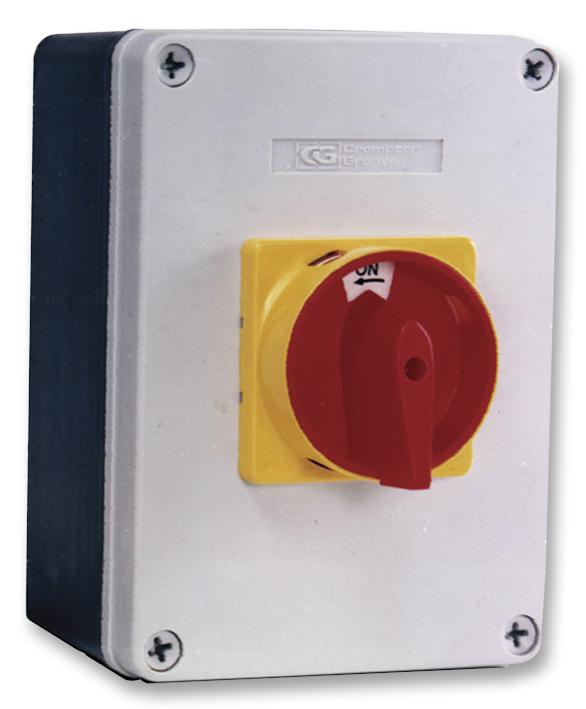

MULTICOMP PRO LB634P Industrial Switch Disconnector
The enclosed switch disconnector is a four-pole isolator rated for 63A, designed for safe switching and isolation in electrical systems. Compliant with IEC & EN 60947-1 and 3 standards, it features a rated operational voltage of up to 690V and a short circuit capacity of 30 kA. Suitable for industrial applications, it offers a compact design with mounting options, terminal configurations for 6 AWG wires, and easy dismantling for maintenance. Ideal for controlling power circuits in commercial or manufacturing environments, ensuring operational safety and compliance with international standards.
MULTICOMP PRO LB634P Industrial Switch Disconnector Specifications:
- Rated operational voltage Ue: IEC & EN 690 V, UL 600 V
- Rated impulse withstand voltage Uimp: 6 kV
- Rated uninterrupted current lu: 40 A
- Rated operational current le: AC-22A up to 690V 40 A, IEC & EN AC-21A up to 690V 63 A, AC-1 up to 690V 63 A
- Rated operational power AC-23A: 220-240V 22 kW, 380-440V 30 kW, 500-690V 45 kW
- UL Power Rating: 120V 5 hp, 240V 10 hp, 3 Phase DOL 480V 20 hp, 600V 30 hp, 120V 3 hp, 240V 5 hp
- Fuse rating, class J: 70 A, Rated fused short circuit current: 30 kA, Max fuse size: 63 A
- Terminal Specification: Single/multiple strand wire, American wire gauge 6 AWG, tightening torque 2 Nm
- Dimensions: 125mm mounting, knockouts for M25, overall size approximately 155mm x 90mm x 42mm
- Number of Poles: 4
- Mounting: Panel or enclosure mounting with specified dimensions
- Standards: IEC & EN 60947-1, 3, UL 508, UL short circuit ratings
Buy the Farnell Series Enclosed Switch Disconnector: LB634P
Purchase the Farnell LB634P industrial switch disconnector online today for reliable circuit isolation in demanding environments. Its robust four-pole design and high short circuit capacity ensure safety and compliance with international standards. Easy to install and maintain, this 63A rated isolator features terminal configurations suitable for 6 AWG wires, making it ideal for industrial power control applications. Ensure your electrical system operates safely and efficiently by ordering this high-quality switch disconnector now.
Buy Farnell LB634P now and experience unmatched reliability and performance with this high-capacity industrial switch disconnector.
Frequently Asked Questions
Where can I buy MULTICOMP PRO LB634P?
You can click on the BUY or RFQ button to purchase LB634P from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part LB634P?
You can download the LB634P datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of LB634P?
MULTICOMP PRO
