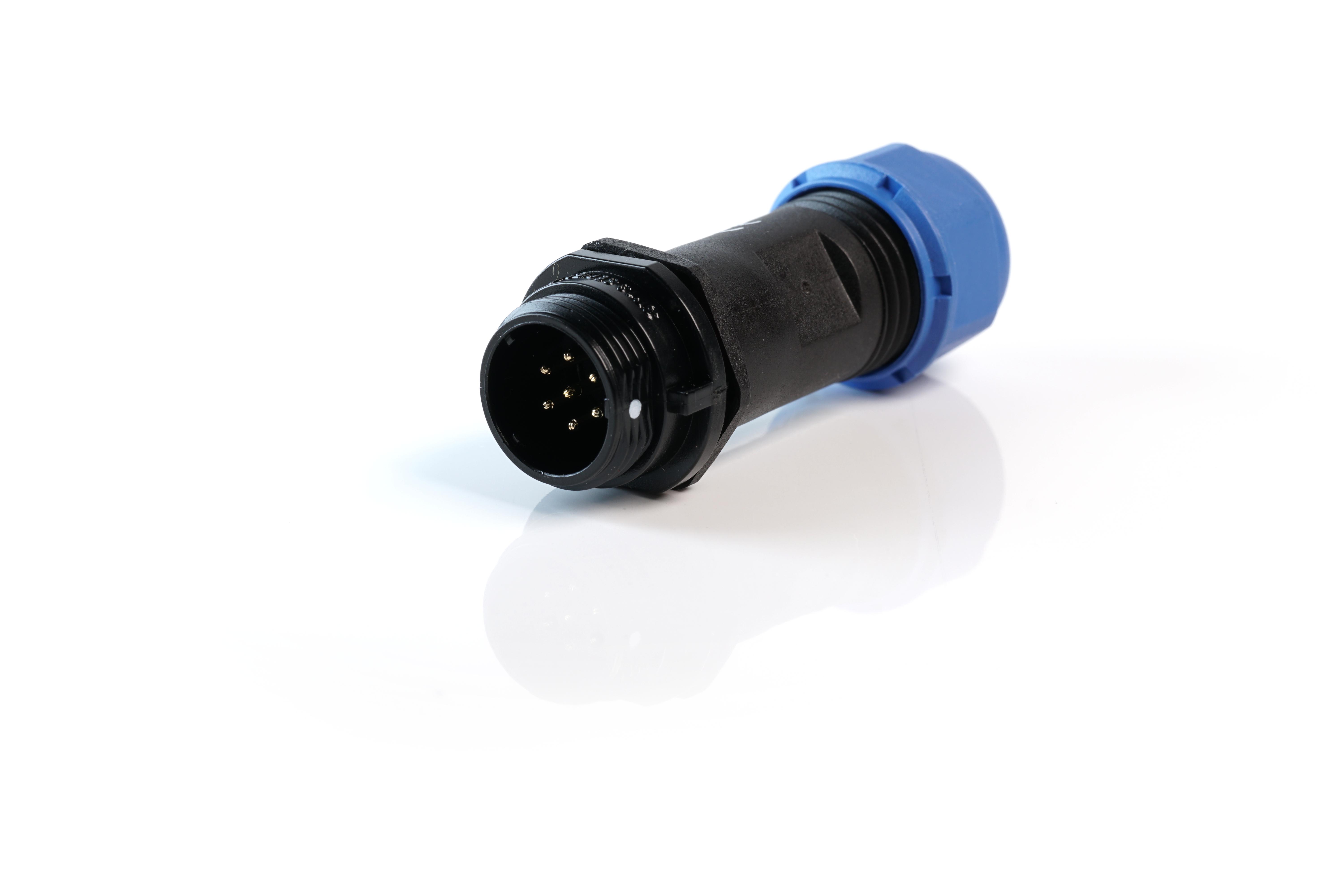

MULTICOMP PRO MP002524 Circular Connector
The MP-T13 IP68 series are durable connectors featuring threaded coupling and weather sealing for protection up to IP68 standards within a compact housing. They are available in panel mount, cable mount, and in-line cable mount configurations, enabling cable-to-panel or cable-to-cable connections. Suitable for both indoor and outdoor environments, these connectors fit a 13mm cut-out, utilize solder termination, and are rated IP68. They come in various versions with 2, 3, 4, 5, and 7 poles, and an IP68 protective cap is available. Ideal for automation, industrial, medical, security, and testing applications.
MULTICOMP PRO MP002524 Circular Connector Specifications:
- Protection IP68 for dust and water ingress resistance
- Coupling: Threaded
- Shell Material: PC
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- Contact Counts: 2, 3, 4, 5, 7 poles
- Rated Current: 13A for 2 poles, 5A for others
- Rated Voltage: 250V for 2 and 3 poles, 200V for 4 poles, 180V for 5 poles, 125V for 7 poles
- Test Voltage: 1500V for 2-4 poles, 1000V for 5-7 poles
- Insulation Resistance: 2000MΩ
- Temperature Range: -40°C to +85°C
- Mating Cycles: 500
- Cable Outer Diameter Range: 4mm to 8mm
- Dimensions: Suitable for 13mm cut-out, with locking nut and panel mounting features
Buy the Buy Multicomp IP68 Circular Connectors Part Number MP002524 Online
Enhance your projects with durable, weatherproof circular connectors available online. Perfect for outdoor, industrial, and automation applications, these IP68 rated connectors feature threaded coupling, solder termination, and multiple configurations for flexible use. Compatible with cable and panel mounting, they withstand harsh environments. Easily connect devices with their robust construction, sealing against dust and water ingress. Purchase now and ensure secure, reliable connections in your automation, security, and measurement systems with these high-quality industrial connectors.
Order your Multicomp Series IP68 Circular Connector MP002524 today and ensure reliable, weatherproof connections for your industrial and outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002524?
You can click on the BUY or RFQ button to purchase MP002524 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002524?
You can download the MP002524 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002524?
MULTICOMP PRO
