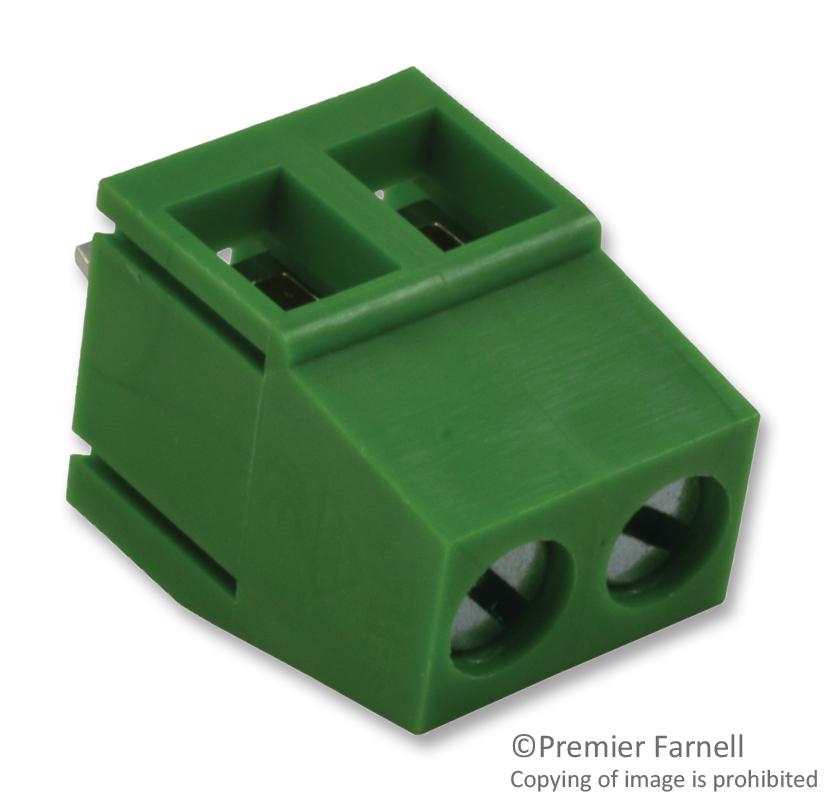

MULTICOMP PRO MB312500M02 PCB Terminal Block
The MB312-500M02 is a 2-position green wire-to-board Eurostyle terminal block designed for PCB mounting and industrial applications. It features a through-hole design with a right-angle orientation, providing reliable screw wire connection. The terminal block uses tin-plated brass contacts and is made from durable PA66 housing material, supporting wire sizes from 12AWG to 26AWG. It operates at a maximum voltage of 300V and can handle a maximum load current of 16A. The component is RoHS compliant, with a pitch of 1.00 mm and a PCB hole diameter of 1.5mm, suitable for demanding electrical and electronic systems.
MULTICOMP PRO MB312500M02 PCB Terminal Block Specifications:
- Pitch: 1.00 mm
- Poles: 2
- Housing Material: PA66
- Cage Clamp: Screw wire connection
- Contact Material: Brass, Tin Plated
- Screw Thread: M2.6, Steel, Zinc Plated
- Wire Size: 12AWG to 26AWG
- PCB Hole Diameter: 1.5mm
- Tightening Torque, Max.: 0.8 N·m
- Operating Temperature: -40°C to +105°C
- Nominal Voltage: 300V
- Maximum Load Current: 16A
- RoHS Compliant
Buy the Multicomp MB312-500M02 – Reliable PCB Terminal Block for Industrial Applications
Purchase the Multicomp PCB terminal block MB312-500M02 online today to ensure secure and reliable electrical connections for your industrial projects. Featuring a compact Eurostyle design with a 1.00 mm pitch, this component supports wire sizes from 12AWG to 26AWG and offers maximum load capacity of 16A at 300V. Made from durable PA66 housing with brass, tin-plated contacts, it ensures long-lasting performance. Ideal for PCB applications needing robust screw connections, it is RoHS compliant and easy to install for industrial, automation, or control systems.
Get Multicomp MB312-500M02 today—built for reliable wiring and durable connections in industrial electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MB312500M02?
You can click on the BUY or RFQ button to purchase MB312500M02 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MB312500M02?
You can download the MB312500M02 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MB312500M02?
MULTICOMP PRO
