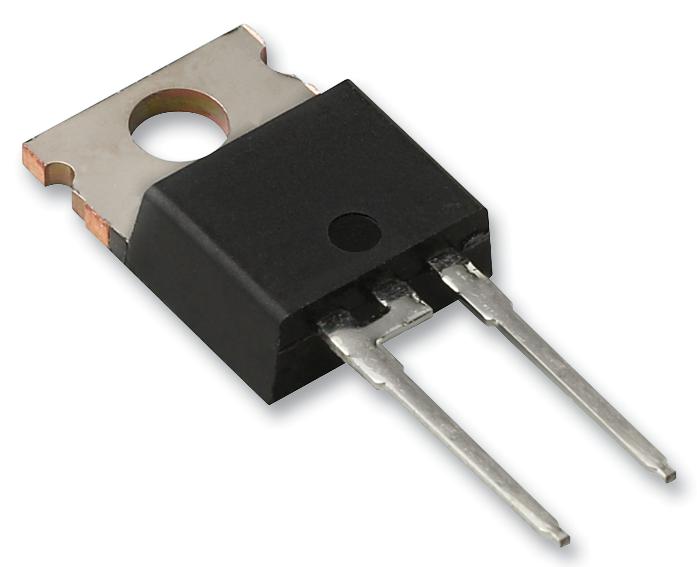

MULTICOMP PRO MBR10100 Schottky Barrier Rectifier
The Schottky Barrier Rectifier MBR10100+ is designed for high-efficiency power conversion in low voltage, high frequency inverters, freewheeling, and polarity protection applications. It features a metal silicon construction with majority carrier conduction, a guard ring for transient protection, and a plastic TO-220AC package classified UL 94V-O for flammability. This rectifier offers low power loss, high current capacity up to 10A, a reverse voltage of 100V, and a maximum surge current of 150A. Its low forward voltage drop ensures excellent performance in demanding electronic systems, maintaining reliability across an operating temperature range of -55°C to +150°C.
MULTICOMP PRO MBR10100 Schottky Barrier Rectifier Specifications:
- Case: TO-220AC molded plastic
- Polarity: As marked on the body
- Weight: 0.08 ounces, 2.24 grams
- Mounting Position: Any
- Reverse Voltage: 100 Volts
- Forward Current: 10 Amperes
- Max. Recurrent Peak Reverse Voltage VRRM: 100V
- Max. RMS Voltage Vrms: 70V
- Max. DC Blocking Voltage Voc: 100V
- Max. Average Forward Rectified Current: 10A
- Peak Forward Surge Current: 150A (8.3ms single half sine-wave)
- Peak Forward Voltage IF=10A @Ts=25°C: 0.85V
- Typical Junction Capacitance: 1100 pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +175°C
- Thermal Resistance (junction to case): 2 °C/W
Buy the Buy Multicomp Schottky Barrier Rectifier Part Number MBR10100+ Online
Upgrade your power management system with the reliable and high-performance Schottky Barrier Rectifier MBR10100+ by Multicomp. Designed for demanding electronics, it offers a reverse voltage of 100V and supports a current of 10A, making it ideal for inverters, freewheeling, and protection circuits. Its TO-220AC package ensures easy mounting and durability. Experience minimal power loss, fast switching, and excellent surge capacity in various industrial and electronic applications. Purchase online now to enhance your project’s reliability and efficiency.
Buy Multicomp MBR10100+ now and experience unmatched reliability and high efficiency in your electronic projects, especially for low voltage and high frequency applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MBR10100?
You can click on the BUY or RFQ button to purchase MBR10100 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MBR10100?
You can download the MBR10100 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MBR10100?
MULTICOMP PRO
