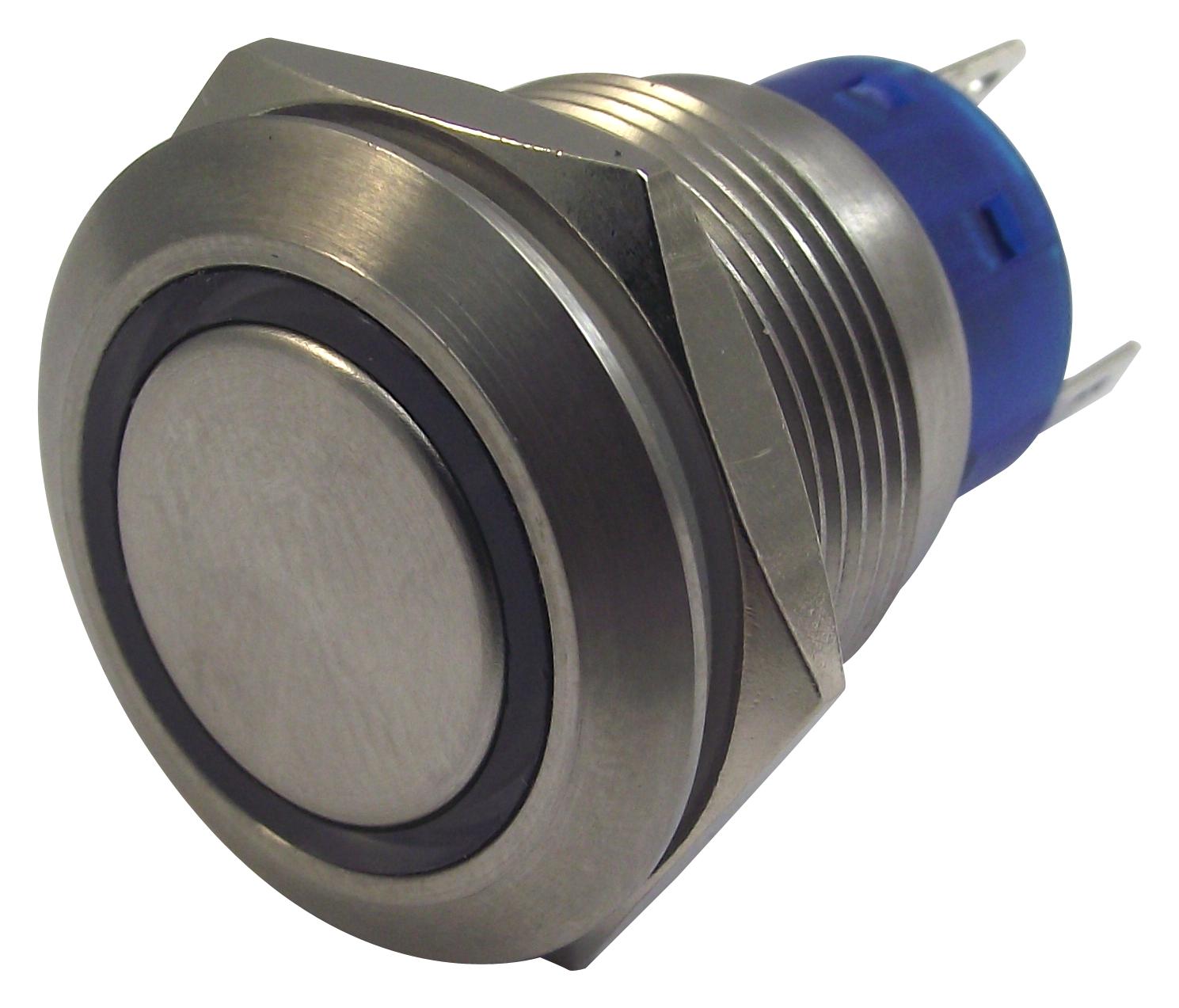

MULTICOMP PRO MPB19A0F21R612JQ Metal Pushbutton Switch
The Metal Pushbutton Switch multicomp:ro is a high-quality, stainless steel and nickel-plated brass switch designed for industrial applications. It features a momentary or lock operation with IP67 ingress protection and IK10 impact resistance. The switch is rated for 250V AC resistive loads at 3A, with excellent durability offering up to 10 million mechanical cycles. It includes a sealed silicone actuator, a stainless steel body, and silver-plated copper contacts for reliable electrical performance. Suitable for panel thicknesses up to 10mm, it is ideal for rugged, demanding environments requiring precise control and long-lasting operation.
MULTICOMP PRO MPB19A0F21R612JQ Metal Pushbutton Switch Specifications:
- Contact Material: Silver
- Rating: SA/250V AC, resistive load 3A/250V AC
- Contact Resistance: 50mΩ Max. @ 1A/12V DC (initial)
- Insulation Resistance: 1,000MΩ Min. at 500V DC
- Dielectric Strength: 2,000V RMS @ sea level
- Operating Temperature: -20°C to +55°C
- Mechanical Life: 10,000,000 cycles (Momentary), 5,000,000 (Self-Lock)
- Electrical Life: 50,000 make-and-break cycles at full load
- Torque: 5Nm to 14Nm
- Panel Thickness: up to 10mm
- Ingress Protection: IP67
- Material: Bushing - Stainless Steel/Nickel Plated Brass/Aluminum alloy, Base - PBT, PC, Actuator - PC, Stainless Steel, Inner Assembly - POM/PA66
- Spring: Spring steel, Sealing: Silicone, O-Ring: Silicone
- Terminal/Contact: Copper, Silver Plated
- Dimensions: Approx. 80mm diameter, travel about 3.2mm
Buy the Buy Multicomp Pro Metal Pushbutton Switch Part Number MPB19A0F21R612JQ Online
Experience the durability and reliability of the Metal Pushbutton Switch by Multicomp Pro. Crafted with stainless steel and nickel-plated brass, it offers IP67 ingress protection, making it perfect for demanding industrial settings. Rated for 250V AC at 3A resistive load, it withstands over 10 million mechanical cycles, ensuring long-term performance. This switch features a sealed silicone actuator, silver-plated copper contacts, and compatibility with panel thicknesses up to 10mm. Ideal for applications requiring robust, dependable switching with superior environmental sealing.
Get Multicomp Pro MPB19A0F21R612JQ today—designed for rugged industrial environments and reliable long-lasting control.
