MULTICOMP PRO MBR1060 Schottky Rectifier
The Schottky Barrier Rectifier is a high-efficiency, low forward voltage diode designed for low voltage, high-frequency applications such as inverters and polarity protection. Encased in a TO-220AC plastic package with UL 94V-0 flammability rating, it features a guard ring for transient protection and high surge capacity. With a maximum reverse voltage of 60V and forward current of 10A, it provides reliable performance in switching and rectification duties. Its compact design and thermal resistance make it suitable for various electronic circuit implementations.
MULTICOMP PRO MBR1060 Schottky Rectifier Specifications:
- Case: TO-220AC molded plastic
- Polarity: As marked on the body
- Weight: 0.08 ounces, 2.24 grams
- Reverse Voltage: 60 Volts
- Forward Current: 10 Amperes
- Maximum RMS Voltage: 42 V
- Maximum DC Blocking Voltage: 60 V
- Peak Forward Surge Current: 150 A (8.3ms, single half sine wave)
- Maximum Forward Voltage: 0.8 V at 10A, 0.95 V at 20A
- Maximum Reverse Current at 25°C: 0.1 mA
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +175°C
- Typical Junction Capacitance: 400 pF
- Thermal Resistance: 25 °C/W
- Dimensions: 1.35 x 0.89 x 0.055 inches (34.4 x 22.6 x 1.4 mm)

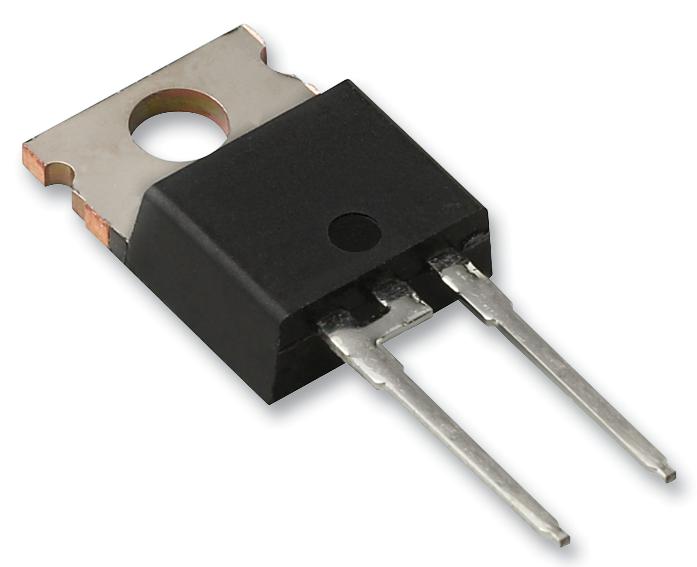

Buy the Multicomp Series Rectifier: MBR1060+
Purchase the Multicomp Series MBR1060+ Schottky rectifier online today and benefit from its low forward voltage drop, high surge capacity, and compact TO-220AC package. Designed for high-frequency switching and low voltage applications, this rectifier guarantees efficiency and durability in power supplies, inverters, and polarity protection circuits. With a maximum reverse voltage of 60V and a forward current rating of 10A, it offers dependable performance across a wide temperature range. Get yours now and enhance your electronic system’s reliability and energy efficiency.
Order your Multicomp Series MBR1060+ high-current Schottky rectifier today and ensure reliable, energy-efficient performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MBR1060?
You can click on the BUY or RFQ button to purchase MBR1060 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MBR1060?
You can download the MBR1060 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MBR1060?
MULTICOMP PRO
