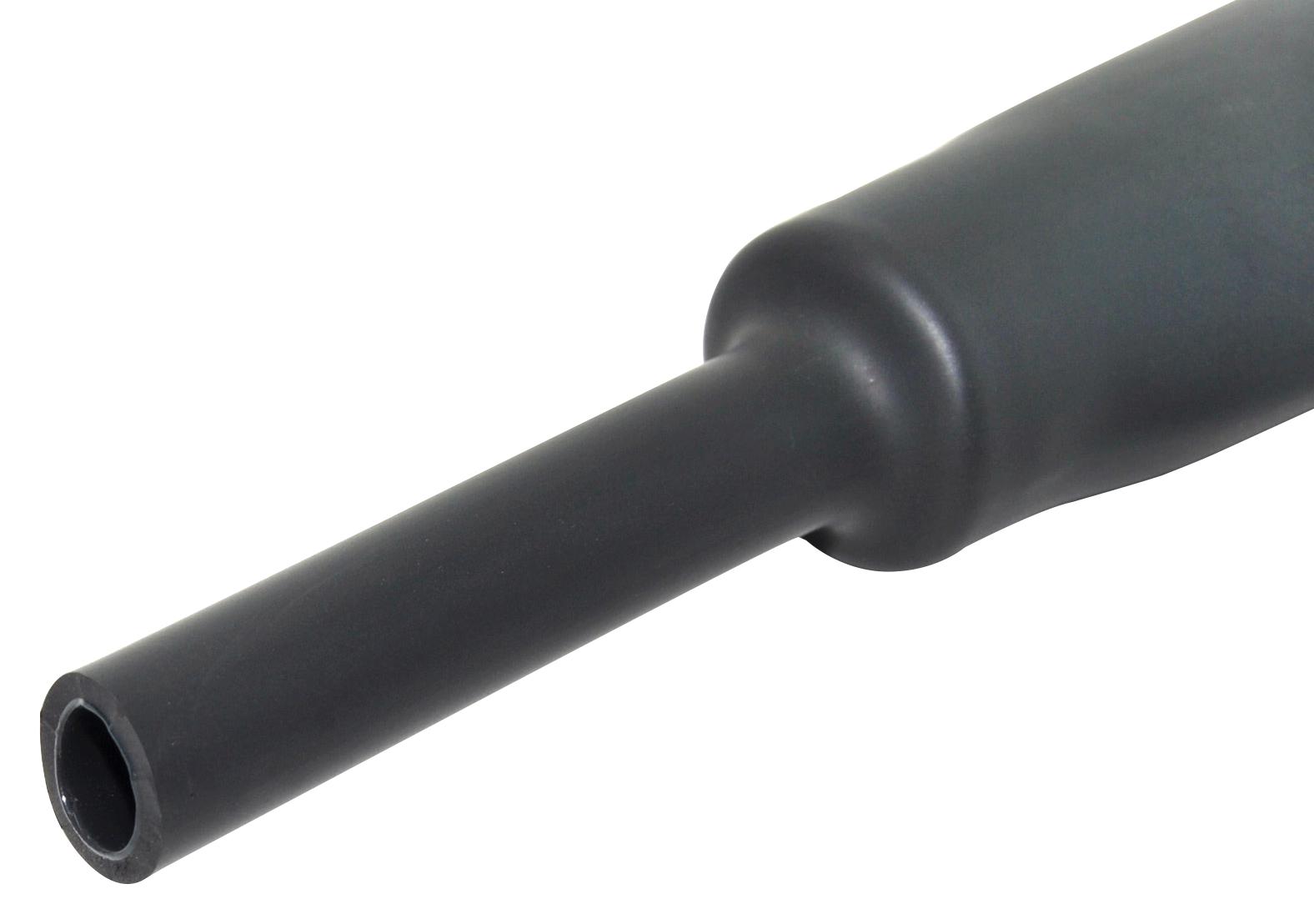

MULTICOMP PRO MC001693 Adhesive Heat Shrink Tubing
This package contains 24 pieces of 6-inch (152.4 mm) long, dual-wall adhesive-lined heat shrink tubing. Designed for wire and cable insulation, it features a 3:1 shrink ratio and is VW-1 flammability rated. Made of polyethylene with hot melt adhesive, it offers excellent insulation, corrosion resistance, and high-temperature shrinkage from 70°C to 125°C. Widely used for protecting wires, joints, and metal pipes, it provides a reliable seal and adheres effectively when heated with a gun, ensuring durability in demanding environments.
MULTICOMP PRO MC001693 Adhesive Heat Shrink Tubing Specifications:
- Shrink Ratio: 3:1
- Material: Polyethylene with hot melt adhesive inner layer
- Operating Temperature Range: -45°C to +125°C
- Flammability: VW-1 rated
- Total Length per Piece: 6 inches (152.4 mm)
- Inner Wall Thickness: approximately 0.3 mm
- Adhesive Wall Thickness: approximately 0.2 mm
- Shrink Temperature: Starts at 70°C, fully shrinks at 125°C
- Longitudinal Shrinkage: ≤8%
- Color: Black
- Dimension when supplied: Diameter varies with part number, after recovery diameter is approximately 6.3 mm for MC001693
- Tool required: Heat gun
Buy the Multicomp Series Dual Wall Adhesive Heat Shrink Tubing: MC001693
Enhance your cable and wire protection with our high-quality adhesive-lined heat shrink tubing, featuring a 3:1 shrink ratio and rated VW-1 for safety. Easy to apply using a heat gun, this polyethylene tubing with an adhesive inner layer provides excellent insulation, corrosion resistance, and temperature stability from -45°C to +125°C. Ideal for electrical, automotive, and industrial applications, each pack contains 24 pieces of 6-inch lengths, ensuring reliable sealing and durable protection for wires, joints, and metal pipes in demanding environments.
Order your Multicomp Series dual wall adhesive heat shrink tubing MC001693 today and ensure your wire insulation meets the highest safety and performance standards.
