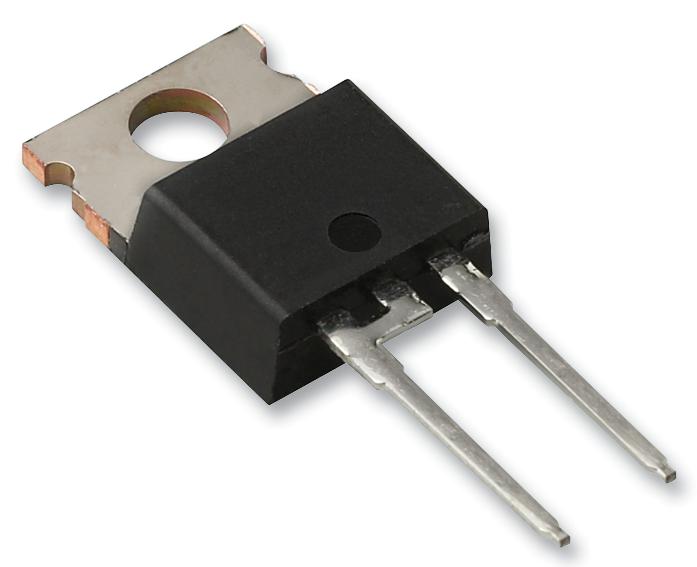

MULTICOMP PRO MBR860 Schottky Barrier Rectifier
The MBR860 is a high-efficiency Schottky Barrier Rectifier designed for low voltage, high frequency inverters, free-wheeling, and polarity protection applications. It features a molded TO-220AC plastic package, guard ring for transient protection, and a maximum reverse voltage of 60V. This rectifier offers high surge capacity, low forward voltage, and a maximum forward current of 8A. Suitable for use in electronics requiring reliable, high-capacity, and fast switching diodes, the MBR860 ensures optimal performance with a high junction temperature range and excellent thermal characteristics.
MULTICOMP PRO MBR860 Schottky Barrier Rectifier Specifications:
- Case: TO-220AC molded plastic
- Polarity: As marked on the body
- Weight: 0.08 ounces, 2.24 grams
- Reverse Voltage: 40 to 60 Volts
- Forward Current: 8 Amperes
- Max. RMS Voltage: 42 V
- Max. DC Blocking Voltage: 60 V
- Peak Forward Surge Current: 150 A (8.3ms single half sine-wave)
- Maximum Forward Voltage at 8A: 0.7 V
- Maximum Recurrent Peak Reverse Voltage: 60V
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +175°C
- Typical Junction Capacitance: 250 pF
- Thermal Resistance (junction to case): 3°C/W
Buy the Buy multicomp Schottky Barrier Rectifier Part Number MBR860 Online
Purchase the multicomp MBR860 Schottky Barrier Rectifier online today. This diode offers a maximum reverse voltage of 60V, 8A forward current, and robust thermal and surge protection. Ideal for power supply circuits, inverters, and protection applications, it ensures high efficiency and fast switching capabilities. Its TO-220AC molded plastic package provides durability and ease of mounting. Reliable, high-capacity, and suitable for demanding electronic environments, the MBR860 guarantees excellent performance with low forward voltage drop and high surge capacity, making it an essential component for your electronics projects.
Get multicomp MBR860 today—built for high efficiency, fast switching, and reliable low-voltage power rectification.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MBR860?
You can click on the BUY or RFQ button to purchase MBR860 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MBR860?
You can download the MBR860 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MBR860?
MULTICOMP PRO
