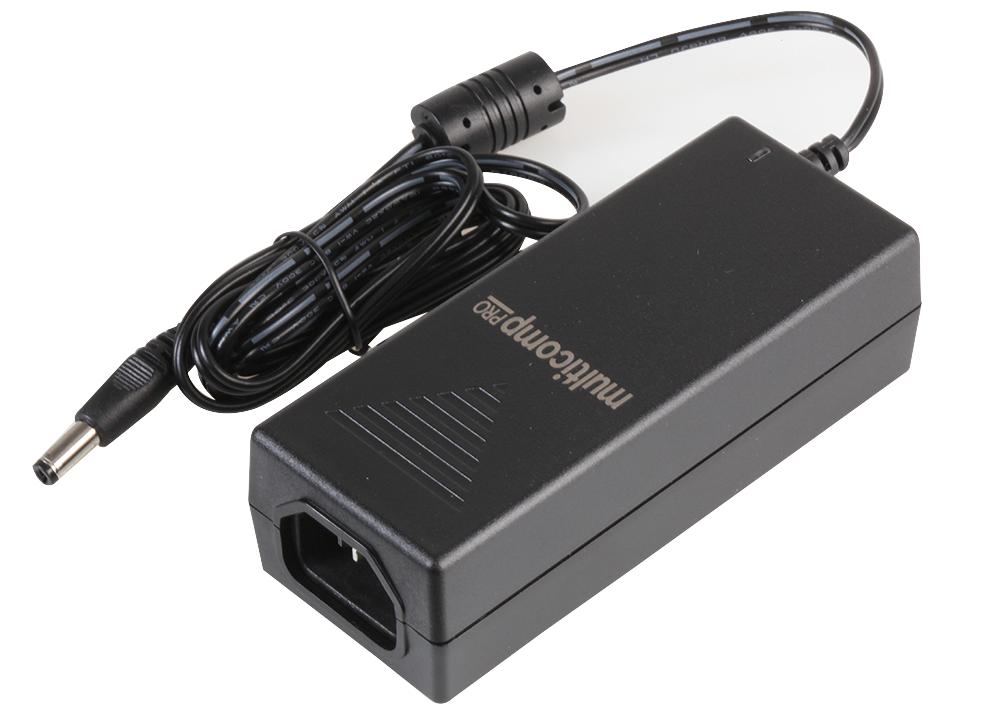

MULTICOMP PRO MP001993 Power Adapter
The 42W external plug-in adapter provides a reliable 12V DC output at 3.5A, suitable for various general power applications. Featuring universal input (90V-264V AC) and efficient design (87% minimum), it complies with safety standards including UL, CE, and FCC. Its compact, robust enclosure supports high efficiency level VI and all necessary protections such as over-voltage, over-load, and short circuit. With a 150mV ripple voltage and operation across a temperature range of 0°C to +40°C, this power supply is ideal for industrial, commercial, and electronic device use.
MULTICOMP PRO MP001993 Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Connector: IEC 320 to C14
- Input Current Rated: 500mA Rms Max
- Efficiency: 87% Min
- Output Voltage Rating: 12V DC
- Output Current Range: 3.5A
- Output Connection Type: 2.1mm x 5.5mm x 12 mm Centre Positive — Straight Angle
- Over Voltage Protection: 21V DC Max
- Ripple Voltage: 150 mV (p-p)
- Safety Approvals: UL, TUV, SAA, PSE, CCC, FCC, CE, RCM
- Dimensions: 118.5mm x 48.5mm x 35mm
- Operating Temperature Range: 0°C to +40°C
Buy the Buy multicomp External Plug In Adapter Part Number MP001993 Online
Purchase the multicomp External Plug In Adapter MP001993 online for a reliable 42W power solution offering 12V DC at 3.5A. Equipped with universal input, high efficiency, and safety certifications including UL, CE, a robust enclosure, and comprehensive protection features such as over-voltage, over-load, and short circuit safeguards. Ideal for industrial, commercial, and electronics applications, this compact power supply operates within 0°C to +40°C, making it perfect for various environments and ensuring consistent performance with minimal ripple voltage and high safety standards.
Order your multicomp External Plug In Adapter MP001993 today and ensure a dependable, efficient power solution for your electronic projects.
