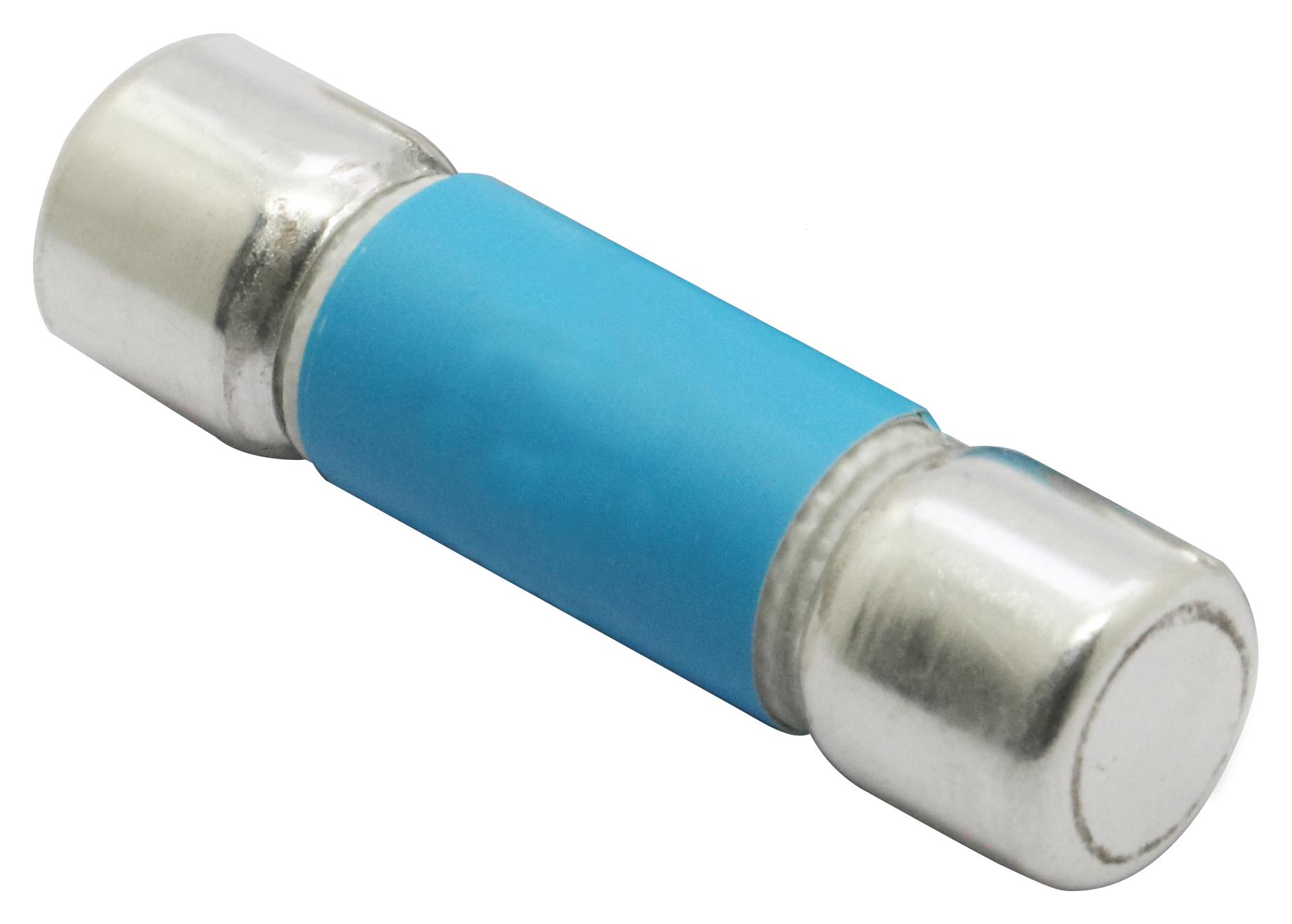

MULTICOMP PRO MP008152 Cylindrical PV Fuse
This cylindrical fuse is designed for high-power photovoltaic applications, measuring 10mm x 38mm. It features a glass-fiber body, silver-plated caps, and a rated voltage of 1100V DC. With current ratings ranging from 1A to 32A, it offers fast response times of 1ms to 3ms and a breaking capacity up to 30 kA at 1100V DC, complying with IEC 60269-6 and UL standards. Suitable for inverters, PV junctions, battery charge controllers, and other industrial electrical systems, these fuses ensure reliable overcurrent protection in demanding environments.
MULTICOMP PRO MP008152 Cylindrical PV Fuse Specifications:
- Dimensions: 10mm x 38mm
- Voltage Rating: 1100V DC
- Rated Current: 1A to 32A
- Breaking Capacity: Up to 30 kA at 1100V DC
- Time Constant: 1ms to 3ms
- Body Material: Glass-fiber
- Caps: Silver-plated
- Compliance: IEC 60269-6, UL 248-19
- Pre-Arcing Dissipation: Varies by current rating
- Certifications: UL Listed, IEC Approved
- Approximate Dissipation Power: 14W to 17W depending on rating
Buy the Multicomp 10A–32A U+2013 Reliable PV Fuses for Industrial Applications
Secure your photovoltaic and industrial electrical systems with our high-quality cylindrical PV fuse, available in current ratings from 1A to 32A and rated for 1100V DC. Featuring rapid response times of 1ms to 3ms and a breaking capacity of 30 kA, these UL and IEC certified fuses are designed for maximum safety and performance. Perfect for inverters, junction boxes, and charge controllers, order online now for dependable overcurrent protection that enhances system reliability and safety in demanding environments.
Order your multicomp series 10mm x 38mm PV fuse today and ensure reliable protection for your solar power and inverter systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP008152?
You can click on the BUY or RFQ button to purchase MP008152 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP008152?
You can download the MP008152 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP008152?
MULTICOMP PRO
