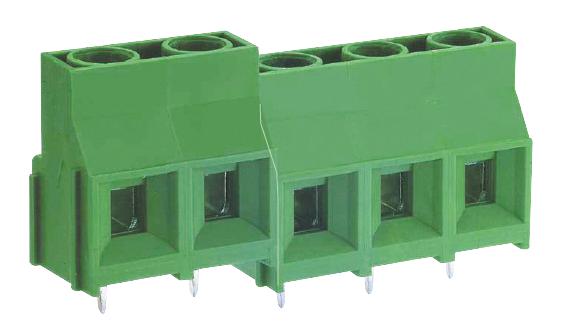

MULTICOMP-PRO MC000055 PCB Terminal Block
This modular PCB terminal block is rated for 30 amperes and 600 V ac, featuring a polyamide 66 insulating body in green. It supports wire ranges from 24 to 10 AWG with an 8 mm wire strip length accommodation. The terminal includes a cage clamp, brass tin-plated termination, and steel nickel-plated screws, ensuring durability and corrosion resistance. With a pitch of 9.52 mm (0.375 inch), it is suitable for electrical wiring in industrial automation, control panels, and electronic assemblies, offering reliable connection and high insulation resistance under operating temperatures from -40°C to +105°C.
MULTICOMP-PRO MC000055 PCB Terminal Block Specifications:
- Current rating: 30 amperes
- Voltage: 600 V ac
- Insulation withstand voltage: 2,000 V ac
- Insulation resistance: > 2,000 MΩ at 500 V dc
- Operating temperature: -40°C to +105°C
- Wire strip length: 8 mm
- Wire range: 24 to 10 AWG
- Screw torque: 29 Ib-inch
- Material: Polyamide 66 insulating body, brass terminal, steel screws
- Finish: Nickel plating on steel, tin plating on brass
- Pitch: 9.52 mm (0.375 inch)
- Poles: 2, 3 poles options available
Buy the MULTICOMP-PRO Series PCB Terminal Block 30A Rating: MC000055
Purchase the high-quality PCB terminal block with a 30A current rating and 600V voltage capacity online today. Designed with a 9.52 mm pitch and supporting wires from 24 to 10 AWG, it is perfect for industrial automation, control cabinets, and electronic projects. Its durable polyamide insulation, brass and steel components, and corrosion-resistant finish ensure long-lasting, reliable connections. Easily install and maintain essential wiring with this robust and versatile terminal block that meets safety and performance standards.
Order your modular PCB terminal block with 30A rating today from Elementi4 and ensure reliable electrical connections in your control panels and automation systems.
