MULTICOMP-PRO MC000062 Plug connector

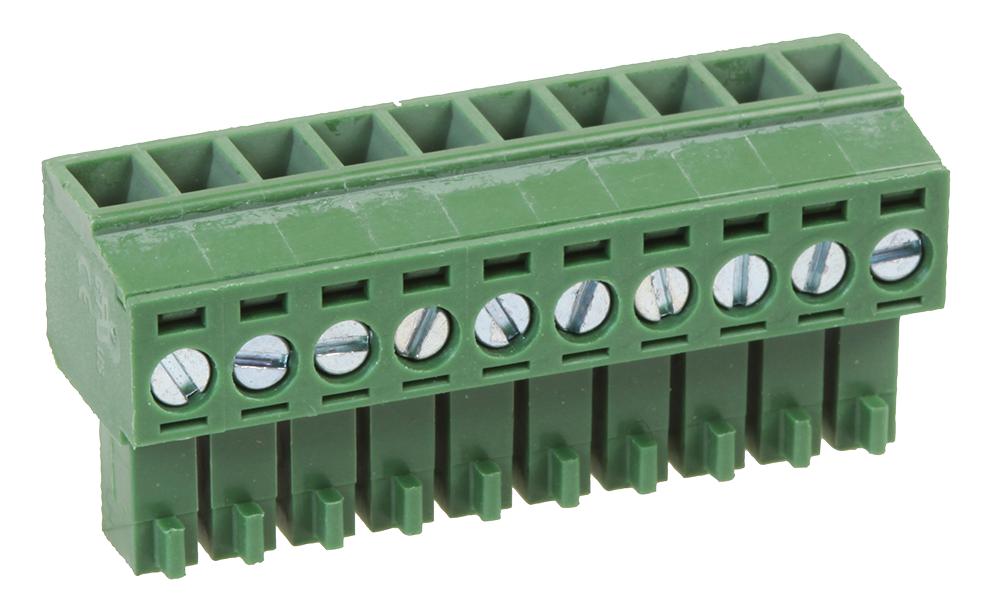

This is a 3.5 mm straight plug connector featuring a green Polyamide 66 insulating body and phosphor bronze contacts with tin plating, designed for reliable electrical connections. Suitable for 10A current rating at 300V ac, it withstands insulation voltage up to 2,000V ac and operates in temperatures from -40°C to +105°C. The plug has a pitch of 3.5 mm, with various pole configurations up to 12 poles, ensuring flexible application in electronic and electrical systems with easy wire striping of 6.5 mm. Its robust steel screw ensures secure fastening.
MULTICOMP-PRO MC000062 Plug connector Specifications:
- Current rating: 10 amperes, 300 V ac
- Minimum insulation withstand voltage: 2,000 V ac
- Insulation resistance: > 2,000 MΩ at 500 V dc
- Operating temperature: -40°C to +105°C
- Wire strip length: 6.5 mm
- Wire range: 16 to 26 AWG
- Pitch: 3.5 mm (0.138 inch)
- Material: Polyamide 66 - Green, contacts made of phosphor bronze with tin plating, cage clamp brass, screw steel
- Poles: 12 (for part number MC000062)
- Dimensions vary with pole count, length approximately 42.8 mm for 12 poles, with easy wiring and secure connection
- Screw torque: 2.5 lb-inch
Buy the Buy Elementi4 3.5 mm Straight Plug Connector Part Number MC000062 Online
Purchase the Elementi4 3.5 mm straight plug connector MC000062 online today. This high-quality, secure connector features a green Polyamide insulation, robust phosphor bronze contacts, and a design suitable for 12 poles and 10A current. Trust in its insulation resistance, temperature range, and precise dimensions for professional electrical wiring. Enjoy quick delivery, excellent customer service, and the convenience of shopping online to ensure your projects stay on schedule with reliable, safe, and efficient connections.
Buy Elementi4 MC000062 now and experience reliable connections for your electrical projects with this durable, high-quality plug.
