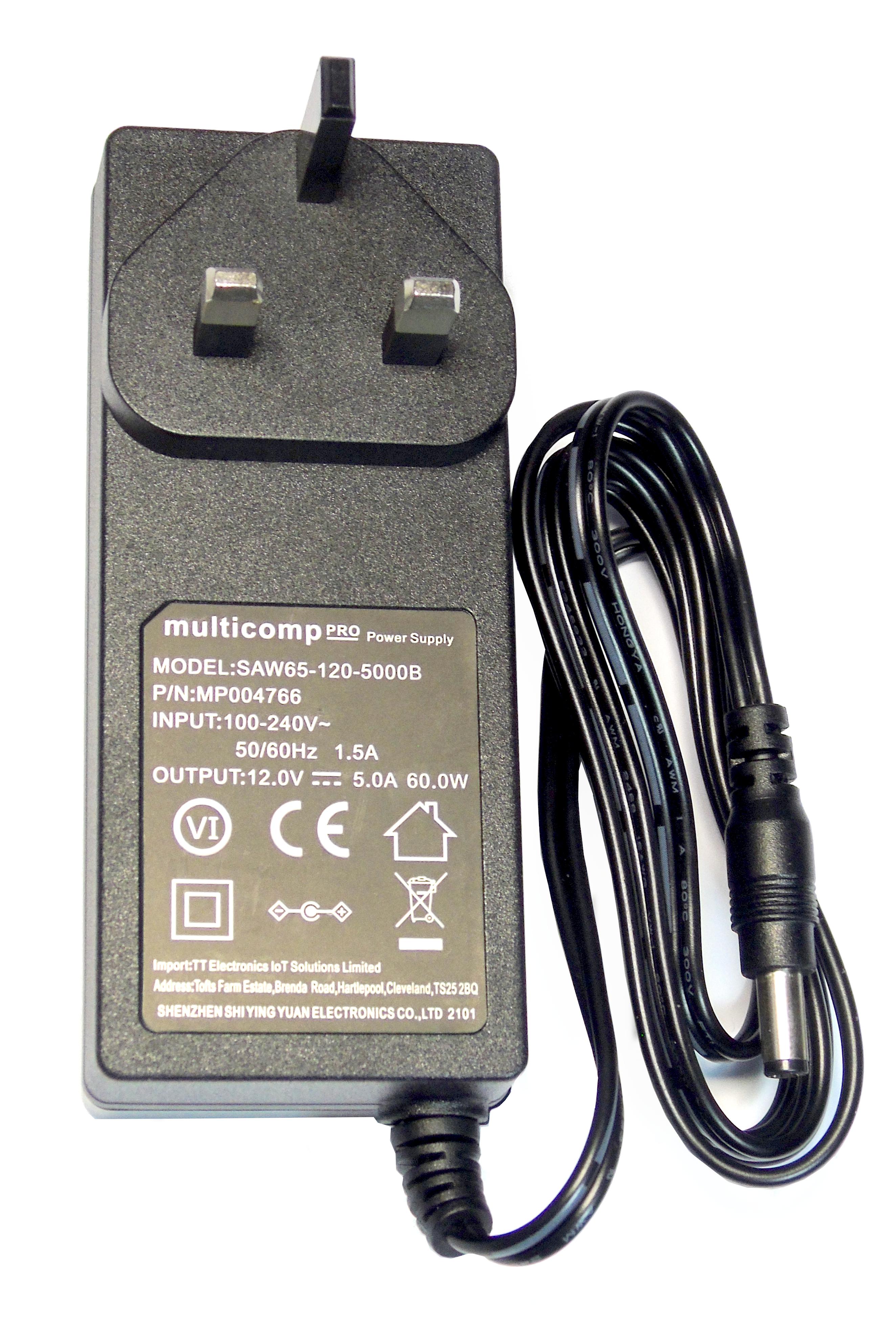

MULTICOMP PRO MP004766 Power Adapter
This 60W UK wall plug adapter provides a reliable 12V DC output at 5A, suitable for various general power applications. Its compact design features a fixed UK plug head, ensuring easy and safe connection in the United Kingdom. The switch-mode power supply boasts high efficiency of at least 88%, with built-in protections including over-voltage and over-load auto recovery. Approved under CE standards, it operates within a temperature range of 0°C to 40°C and complies with RoHS. Its robust construction and EMI standards make it ideal for professional use in electronic and industrial settings.
MULTICOMP PRO MP004766 Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 1.5A max.
- Inrush Current: 40A max.
- Output Voltage Rating: 12V
- Output Current Range: 5A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive — Straight
- Total Output Regulation: 45%
- Line and Load Regulation: 45%
- Ripple & Noise: 200mVp-p.
- Efficiency: 88% min
- Over Voltage Protection: Automatic Recovery
- Over Load Protection: Automatic Recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 10% to 90%
- Storage Humidity: 5% to 95%
- Hi-Pot: 3000V AC 10mA 1min
- Leakage Current: 0.25mA max
- Size: 147mm (L) x 50.3mm (W) x 33.5mm (H)
- Weight: 270g
- Safety Standard: CE
- EMI Standard: ENE tooo-32
- MTBF: 50,000 hours
Buy the Buy Multicomp 12V DC Power Adapter Part Number MP004766 Online
Purchase the reliable 60W UK power adapter online for your electronic and industrial needs. With a 12V 5A output, CE approval, RoHS compliance, high efficiency of at least 88%, and built-in protections, this switch-mode power supply ensures safe, consistent performance. Its compact and robust design is suitable for various applications, providing peace of mind with features like over-voltage and over-load auto recovery. Easy to install and highly durable, order now for fast delivery and excellent power solutions.
Get Multicomp MP004766 today—built for reliable power delivery with high efficiency and robust protections, ideal for industrial and electronic projects.
