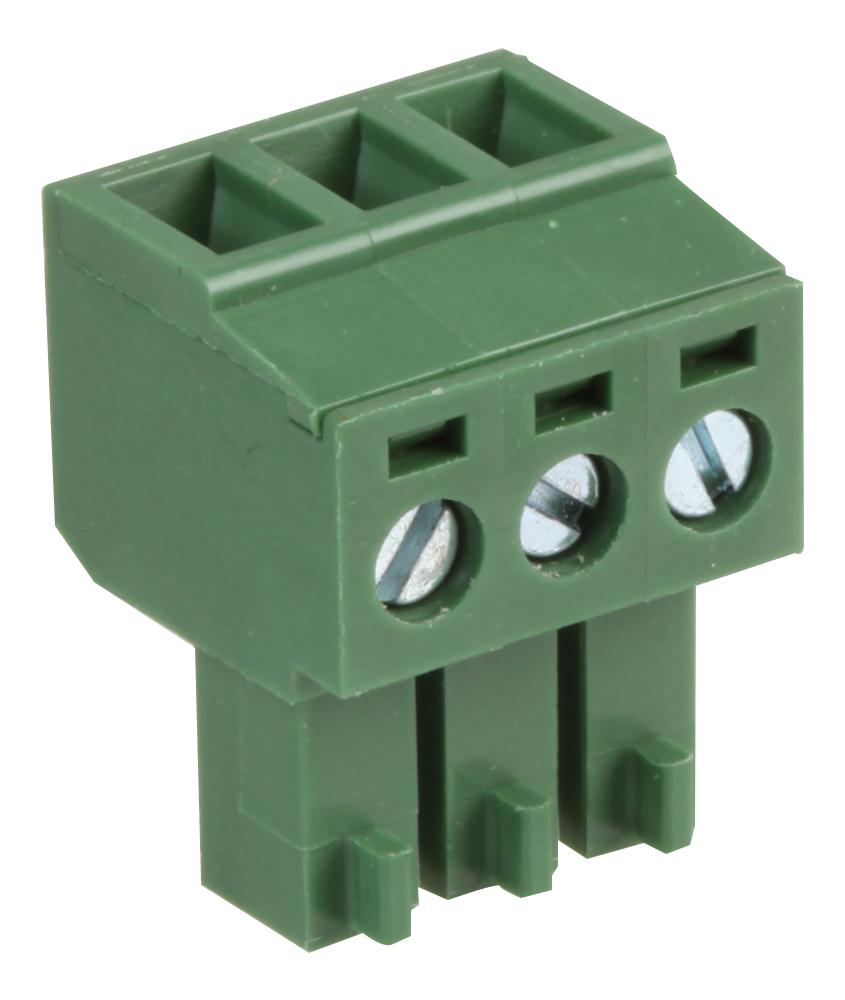

MULTICOMP PRO MC000097 Pluggable PCB Connector
The MC000097 is a 3-way pluggable PCB terminal block with a 3.81mm pitch. It features tin-plated phosphor bronze terminals, a green polyamide 66 insulating body, and a straight block orientation. Designed for 16 AWG wire, it provides insulation resistance over 2000 MΩ and operates efficiently between -40°C and +105°C. Suitable for various electronic applications, this connector offers reliable electrical connection, easy assembly, and RoHS compliance, ensuring safety and environmental standards are met for industrial and DIY projects.
MULTICOMP PRO MC000097 Pluggable PCB Connector Specifications:
- Current Rating: 10 Amperes, 300V AC
- Min. Insulation withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000 MΩ at 500V DC
- Pitch: 3.81mm
- Poles: 2 to 12 Poles
- Housing Material: PA66
- Contact Material: Phosphor Bronze, Tin Plated
- Housing Color: Green
- Wire Size: 16 to 26 AWG
- Screw Thread: M2.0, Steel, Zinc Plated
- Tightening Torque, Max: Not specified
- Operating Temperature: -40°C to +105°C
- RoHS Compliant
Buy the Buy Multicomp Pluggable PCB Connector Part Number MC000097 Online
Discover the convenience and reliability of the Multicomp Pluggable PCB Connector MC000097. Suitable for various electronic and industrial applications, this connector features a 3.81mm pitch, handles 10A currents, and operates within a wide temperature range of -40°C to +105°C. Made with durable polyamide insulation and tin-plated phosphor bronze contacts, it offers high insulation resistance and RoHS compliance. Easy to install, it is ideal for both professionals and hobbyists seeking high-quality, secure connections for their projects.
Order your Multicomp Pluggable PCB Connector MC000097 today and ensure reliable, easy-to-assemble connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000097?
You can click on the BUY or RFQ button to purchase MC000097 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000097?
You can download the MC000097 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000097?
MULTICOMP PRO
