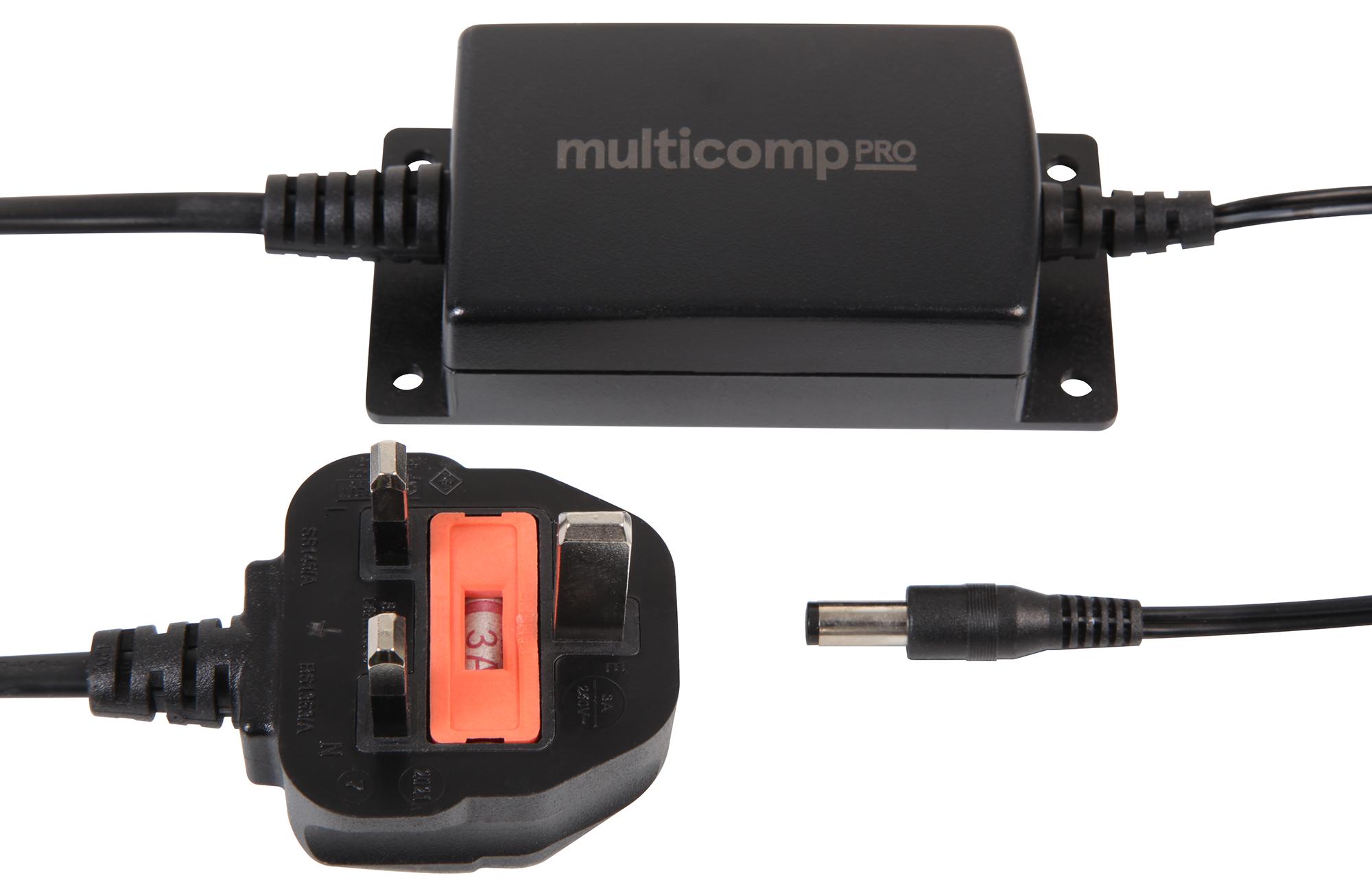

MULTICOMP PRO MP001985 Power Supply
This 15-Watt low-profile AC/DC power supply delivers a reliable 24V DC output at 0.625A, suitable for indoor applications like CCTV, access control, and building management systems. Its compact design features a fixed UK plug, 93.7mm by 47mm by 26mm dimensions, and provides protections against over-voltage, overload, short circuit, and temperature. Compliant with RoHS, Level VI, and FCC standards, it offers high efficiency, low ripple, and a wide input voltage range of 90V to 264V AC, operating reliably between 0°C and 40°C with minimal leakage current.
MULTICOMP PRO MP001985 Power Supply Specifications:
- Voltage: 24V DC
- Current Max: 0.625A
- Power: 15W
- Line Regulation: 41%
- Ripple & Noise: 150mV
- Protections: Over Voltage, Over Load, Short Circuit, Temperature
- Case Size: 93.7mm (L) x 47mm (W) x 26mm (H)
- Weight: 250g
- DC Cord: 1.5m
- DC Plug: Straight 2.1 C+ve
- Rated Input Voltage: 100V AC to 240V AC
- Full Input Voltage Range: 90V AC to 264V AC
- Frequency Range: 47Hz to 63Hz
- Efficiency: 84.50% Min.
- Input Current RMS Max: 500mA
- Inrush Current: NO Damage
- Leakage Current: <0.25mA
- Input Power (No Load): <0.1W
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -10°C to +70°C
- Operating Humidity: 20% to 80%
- Storage Humidity: 10% to 90%
- Safety: GS & CE
- EMI Standards: FCC Class B, CE & VCCI - II
- MTBF: 50K
Buy the Multicomp MP001985 – Reliable Power Supply for Industrial Applications
Order the multicomp power supply MP001985 online today to ensure your indoor electronic projects like CCTV, access control, or building systems operate flawlessly. Compact and reliable, this 15W power supply features a 24V DC output at 0.625A, integrated protections including over-voltage and short circuit, and a UK plug for ease of installation. With high efficiency, low ripple, and wide input voltage compatibility, it guarantees smooth, consistent performance in demanding industrial environments. Get yours now for seamless power solutions.
Buy multicomp MP001985 now and experience unmatched reliability and performance for your CCTV, access control, and building management systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001985?
You can click on the BUY or RFQ button to purchase MP001985 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001985?
You can download the MP001985 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001985?
MULTICOMP PRO
