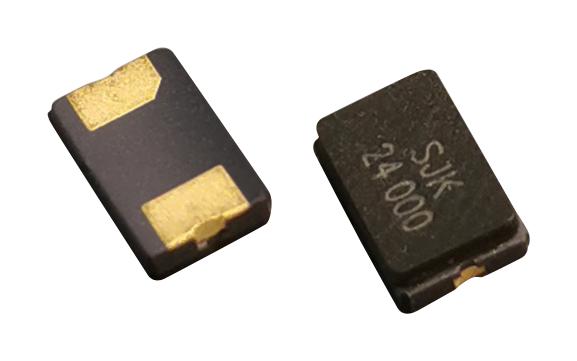

MULTICOMP PRO MP007039 SMD Crystal
This SMD crystal unit features a compact 5mm x 3.2mm x 1.2mm size, suitable for various electronic devices including PDAs, GPS, smart factories, AV equipment, and PCs. It offers high precision, excellent heat resistance, and comes RoHS compliant with lead in sealed glass exemption. The frequency is 22.1184MHz with a maximum of 30ppm stability and tolerance at 25°C. Operating temperature ranges from -20°C to +70°C, making it ideal for demanding environments requiring reliable frequency stability in 85–90 words.
MULTICOMP PRO MP007039 SMD Crystal Specifications:
- Frequency Range: 22.1184MHz
- Size: 5mm x 3.2mm x 1.2mm
- RoHS Compliant
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Frequency Stability: ±30ppm
- Frequency Tolerance (at 25°C): ±30ppm
- Shunt Capacitance (Co): Max. 18pF or 20pF
- Drive Level: 1pW to 200uW (typical 100uW)
- Equivalent Series Resistance: Max. 500Ω at 22.1184MHz
- Aging: Max. ±3ppm/year
- Application: PDAs, GPS, smart factory, AV equipment, PC, server
- Contains Pb in sealed glass, exempted under RoHS
Buy the Buy Multicomp SMD Crystals Part Number MP007039 Online
Enhance your electronic projects with the high-precision, miniature SMD crystal unit that features 22.1184MHz frequency with 18pF or 20pF load options. These RoHS-compliant crystals provide excellent heat resistance, stable performance across a wide temperature range, and compact size suitable for space-constrained devices like PDAs, GPS, and servers. Perfect for industrial and consumer electronics, they deliver reliable frequency stability and long-term aging performance, simplifying assembly with easy surface-mount technology. Order online today for fast delivery and tested quality assurance.
Buy Multicomp SMD Crystals MP007039 now and ensure reliable frequency accuracy for your electronic devices with high heat resistance and compact design.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP007039?
You can click on the BUY or RFQ button to purchase MP007039 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007039?
You can download the MP007039 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP007039?
MULTICOMP PRO
