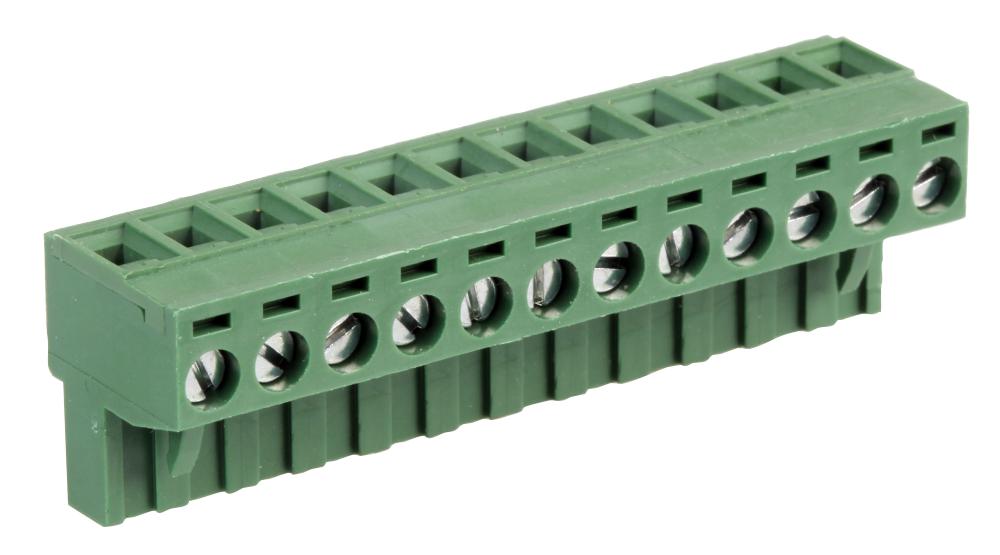

MULTICOMP PRO MC000143 Pluggable Terminal Block
The product is a pluggable terminal block designed for reliable and secure wire connections in electrical and automation applications. It supports a current rating of 16 Amperes at 300V AC, with a minimum insulation withstand voltage of 2,000V AC and an insulation resistance exceeding 2,000MQ at 500V DC. The terminal block features a 5mm pitch and accommodates wire ranges from 112 AWG to 24 AWG. Made with a polyamide 66 insulating body, the contact is phosphor bronze tin plated, while the cage clamp is brass with nickel plating. Dimensions vary with the number of ways, from 2 to 12, equipped with steel zinc and chromium-plated screws. Operating temperature ranges from -40°C to +105°C, with a recommended screw torque of 7 Ib-inch. Suitable for control panels, industrial equipment, and wiring systems requiring quick and secure connections.
MULTICOMP PRO MC000143 Pluggable Terminal Block Specifications:
- Current Rating: 16 Amperes at 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000MQ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Range: 112 AWG to 24 AWG
- Wire Strip Length: 4mm to 5mm
- Screw Torque: 7 Ib-inch
- Pitch: 5mm (0.197 Inch)
- Material: Polyamide 66 insulating body
- Contact Material: Phosphor Bronze, Tin plated
- Cage Clamp Material: Brass, Ni plated
- Screw Material: Steel, Zinc+Cr+3 coating
- Pole Lengths: from 10mm to 50mm depending on number of ways
- Operating Temperature: -40°C to +105°C
Buy the Multicomp Series Terminal Block: MC000143
Order the Multicomp Pluggable Terminal Block MC000143 online today to ensure quick, reliable, and safe wiring for your electrical and automation projects. With a 5mm pitch and wire capacity from 112 AWG to 24 AWG, it offers versatile solutions for control panels and industrial equipment. Its robust construction with a polyamide insulating body, phosphor bronze contacts, and steel screws ensures durability even in demanding environments. Secure your connections easily and efficiently by purchasing this high-quality terminal block online, backed by trusted supply sources.
Buy Multicomp MC000143 now and experience unmatched reliability and performance in secure wiring connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000143?
You can click on the BUY or RFQ button to purchase MC000143 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000143?
You can download the MC000143 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000143?
MULTICOMP PRO
