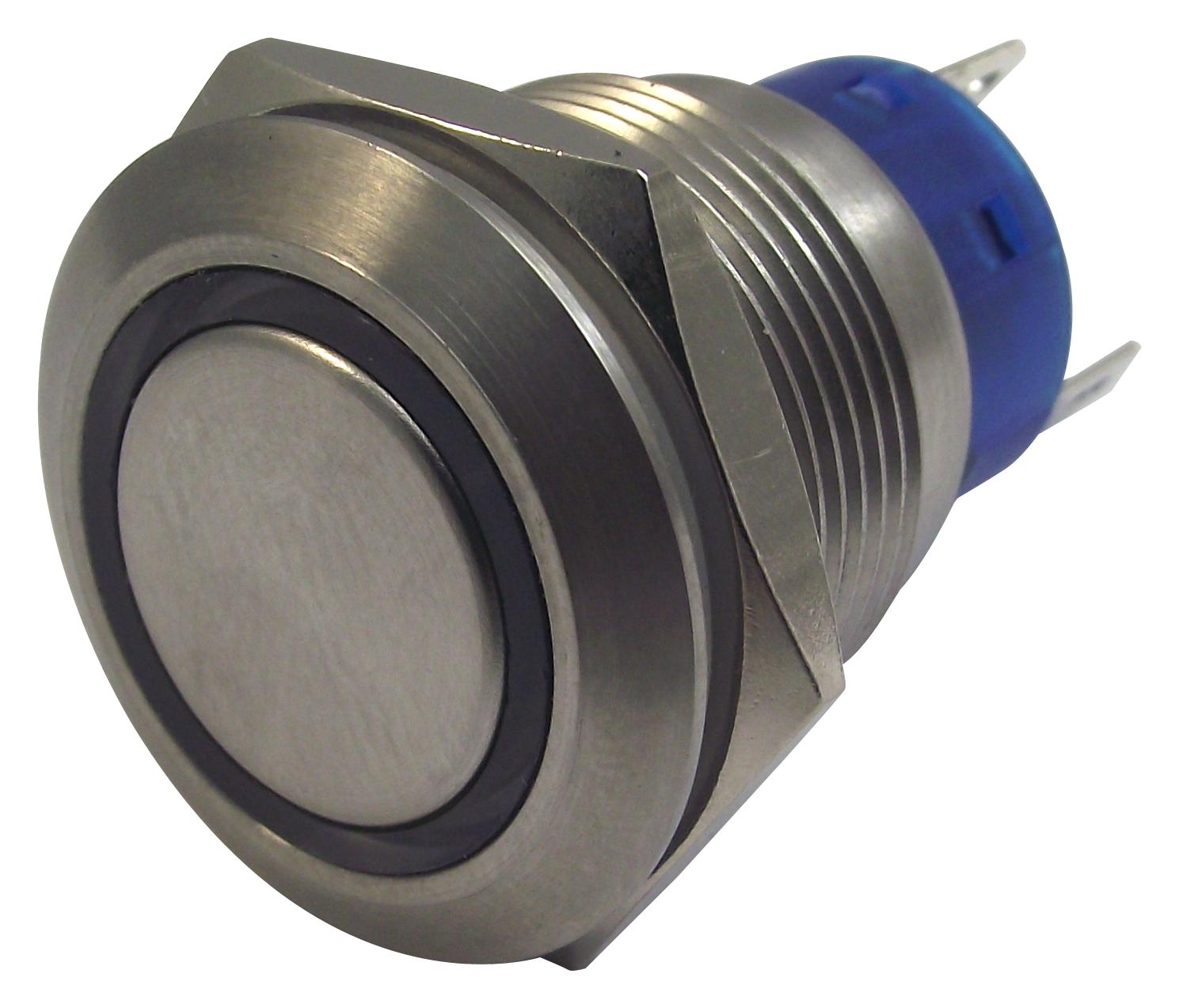

MULTICOMP PRO MPB19A0F10R712JQ Metal Pushbutton Switch
The metal pushbutton switch multicomp:ro is a durable, high-reliability electrical component designed for industrial applications. It features a stainless steel or plated brass bushing, a PBT or PC base, and a PC or stainless steel actuator, ensuring robustness and corrosion resistance. The switch has a contact material of silver, rated at SA/250V AC, resistive load 3A/250V AC, and offers a mechanical life of up to 10 million cycles for momentary operation. It is IP67 waterproof, IK10 impact-resistant, suitable for panel thickness up to 10mm, and operates in temperatures from -20°C to +55°C.
MULTICOMP PRO MPB19A0F10R712JQ Metal Pushbutton Switch Specifications:
- Contact Material: Silver
- Rating: SA/250V AC, resistive load 3A/250V AC
- Contact Resistance: 50mΩ Max. @ 1A12V DC
- Insulation Resistance: 1,000MΩ Min. at 500V DC
- Dielectric Strength: 2,000V RMS @ sea level
- Operating Temperature: -20°C to +55°C
- Mechanical Life: 10,000,000 Cycles (Momentary), 5,000,000 (Self-Lock)
- Electrical Life: 50,000 Cycles at full load
- Torque: 5Nm to 14Nm
- Panel Thickness: Up to 10mm
- Ingress Protection: IP67, IK10
- Material: Bushing Stainless Steel/Nickel Plated Brass/Aluminum Alloy, Base PBT or PC, Actuator PC or Stainless Steel, Spring Steel, Silicone Sealing
Buy the Buy Multicomp Pro Metal Pushbutton Switch Part Number MPB19A0F10R712JQ Online
Enhance your control systems with this high-quality metal pushbutton switch from multicomp:ro. Featuring stainless steel components, IP67 waterproof rating, and a robust design rated for 10 million cycles, it guarantees durability and consistent performance. Ideal for demanding industrial environments, it operates at 250V AC with resistive load 3A, and withstands temperatures from -20°C to +55°C. Easy to install on panels up to 10mm thick, this switch offers longevity, impact resistance, and reliable electrical contact to ensure seamless operation of your machinery.
Buy Multicomp Pro MPB19A0F10R712JQ now and experience unmatched reliability and performance in industrial switching applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPB19A0F10R712JQ?
You can click on the BUY or RFQ button to purchase MPB19A0F10R712JQ from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPB19A0F10R712JQ?
You can download the MPB19A0F10R712JQ datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPB19A0F10R712JQ?
MULTICOMP PRO
