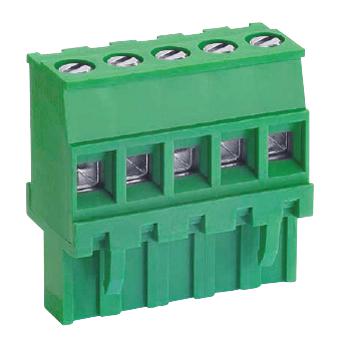

MULTICOMP PRO MC000145 pluggable right-angle connector
This 5mm pluggable right-angle connector is designed for efficient electrical connections in control systems and automation applications. It features a green polyamide insulating body, phosphor bronze contacts tin-plated for durability, and brass cage clamps for secure assembly. With a current rating of 16A and voltage capacity of 300V AC, it withstands insulation voltages up to 2000V AC and operates reliably from -40°C to +105°C. Suitable for wire ranges from 12 to 24 AWG, it offers easy plug-in connection with precise dimensions for compact space utilization.
MULTICOMP PRO MC000145 pluggable right-angle connector Specifications:
- Current Rating: 16 Amperes, 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000MQ 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 7mm
- Wire Range: 12 AWG to 24 AWG
- Screw Torque: 7 Ib-inch
- Pitch: 5mm (0.197 inch)
- Material: Insulating Body Polyamide 66 - Green
- Contact Material: Phosphor Bronze, Tin Plated
- Cage Clamp Material: Brass, Ni plated
- Screw Material: Steel
Buy the Buy multicomp 5mm Pluggable Right Angle Connector Part Number MC000145 Online
Order the multicomp 5mm pluggable right-angle connector part number MC000145 today and experience efficient, secure electrical connections for control panels and automation projects. Featuring 16A current capacity, 300V AC voltage rating, and a durable polyamide insulator, this connector is ideal for tight spaces. Its easy plug-in design, wire range compatibility from 12 to 24 AWG, and high insulation resistance make it perfect for reliable connections in industrial environments. Shop now for quick, hassle-free online purchase and fast delivery.
Buy multicomp MC000145 now and ensure reliable connections in control and automation systems with its compact, easy-to-install design and robust materials.
