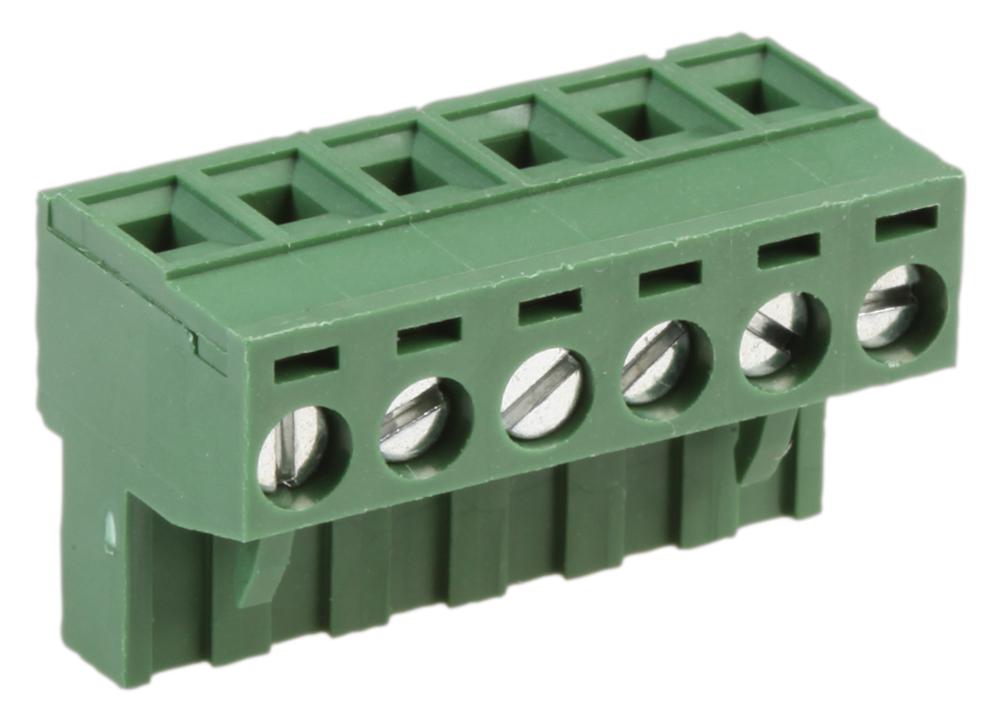

MULTICOMP PRO MC000180 Pluggable Terminal Blocks
The pluggable terminal blocks are designed for easy wiring connections in industrial automation and control systems. Offering a current rating of 16A and voltage capacity of 300V AC, these terminal blocks feature a pitch of 5.08mm with multiple pole options from 2 to 12 ways. Made with polyamide 66 insulating bodies, contact phosphor bronze, and zinc-plated steel screws, they withstand temperatures from -40°C to +105°C. Their wire range of 22-112 AWG and wire strip length of 4-5mm ensure flexible, secure connections for various industrial applications.
MULTICOMP PRO MC000180 Pluggable Terminal Blocks Specifications:
- Current Rating: 16 Amperes
- Voltage: 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000 MΩ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Range: 22-112 AWG
- Wire Strip Length: 4mm to 5mm
- Screw Torque: 7 Ib-inch
- Pitch: 5.08mm (0.2 inch)
- Material: Polyamide 66 (insulating body)
- Contact: Phosphor Bronze, Tin plated
- Screw: Steel, Zinc + Cr plating
- Pole options: 2 to 12 poles
- Dimensions vary with pole count, e.g., 10.16mm (0.4 inch) for 2 poles, up to 40.64mm (1.6 inch) for 12 poles
Buy the Multicomp MC000180 – Reliable Terminal Blocks for Industrial Applications
Enhance your industrial wiring setup with our reliable pluggable terminal blocks. Rated for 16A and 300V AC, these modular connectors feature a 5.08mm pitch and multiple pole options, ensuring flexible and secure connections. Made with durable polyamide and zinc-plated steel, they withstand extreme temperatures from -40°C to +105°C. Easy to install with wire ranges from 22-112 AWG and wire strip length of 4-5mm, perfect for industrial automation, control panels, and distribution systems. Order online today for quick delivery!
Buy Multicomp MC000180 now and experience unmatched reliability and performance in industrial wiring connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000180?
You can click on the BUY or RFQ button to purchase MC000180 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000180?
You can download the MC000180 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000180?
MULTICOMP PRO
