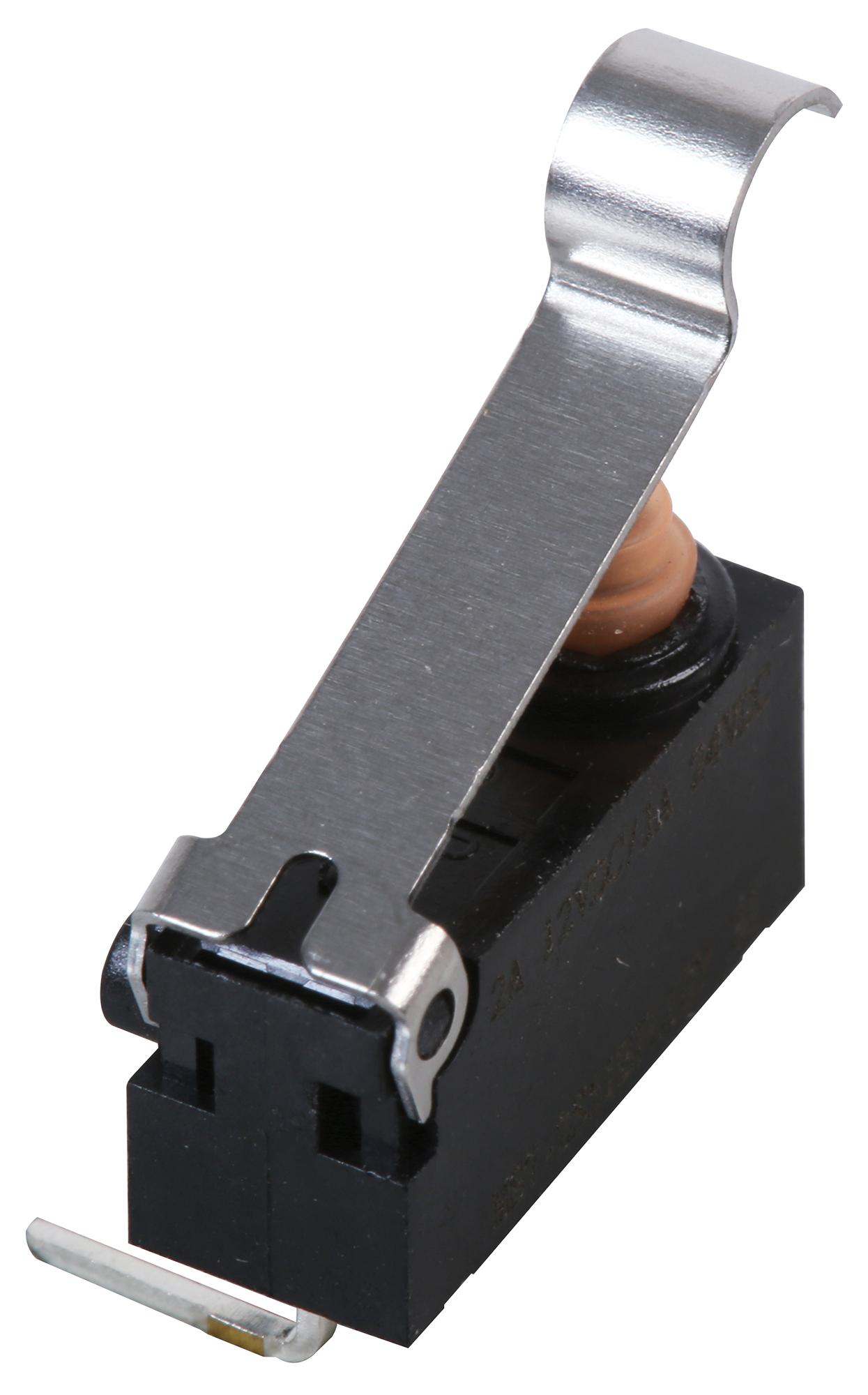

MULTICOMP PRO MP006235 Snap Action Microswitch
This is a high-quality snap action microswitch designed for reliable switching in various industrial applications. Features include multiple actuator options such as pin plunger, lever, and simulated roller lever, sealed IP67 for harsh environments, and PC board or solder terminal options. It offers a contact rating of 2A at 12V DC, with a mechanical durability of over 1,000,000 cycles and electrical durability of 100,000 cycles. Operating temperature ranges from -40°C to +85°C, making it suitable for automotive, household appliances, and vacuum cleaner controls. Compact, versatile, and compliant with RoHS standards, it ensures long-lasting performance.
MULTICOMP PRO MP006235 Snap Action Microswitch Specifications:
- Contact Rating: 2A at 12V DC, 1A at 24V DC
- Mechanical Durability: 1,000,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 150mΩ maximum
- Insulation Resistance: 100MΩ minimum at 500V DC
- Dielectric Strength: 600V AC between terminals, 1500V AC between terminals and ground
- Operating Temperature: -40°C to +85°C
- Enclosure: Sealed IP67
- Actuator options: Pin plunger, long hinge lever, simulated roller lever
- Rated Voltage: 12V or 24V DC resistive load
- Overtravel: 1.4mm to 2.5mm (varies by model)
- Dimensions: Compact size, approx 5.1mm to 41mm travel depending on model
- Certifications: RoHS compliant
Buy the Buy multicomp Series Microswitch Part Number MP006235 Online
Purchase the multicomp Series Snap Action Microswitch MP006235 online now to ensure reliable switching in your automation or control systems. Featuring IP67 sealing, multiple actuator options, high durability, and suitable for harsh environments, this microswitch serves applications in automotive, household appliances, and industrial controls. Easy to install with various terminal options and certified RoHS compliant, it guarantees long-term performance and safety in demanding conditions. Buy online today for quick delivery and premium quality control components designed for durability and precision.
Order your multicomp Series microswitch MP006235 today and enjoy the dependable, long-lasting performance ideal for automotive, household, and industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006235?
You can click on the BUY or RFQ button to purchase MP006235 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006235?
You can download the MP006235 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006235?
MULTICOMP PRO
