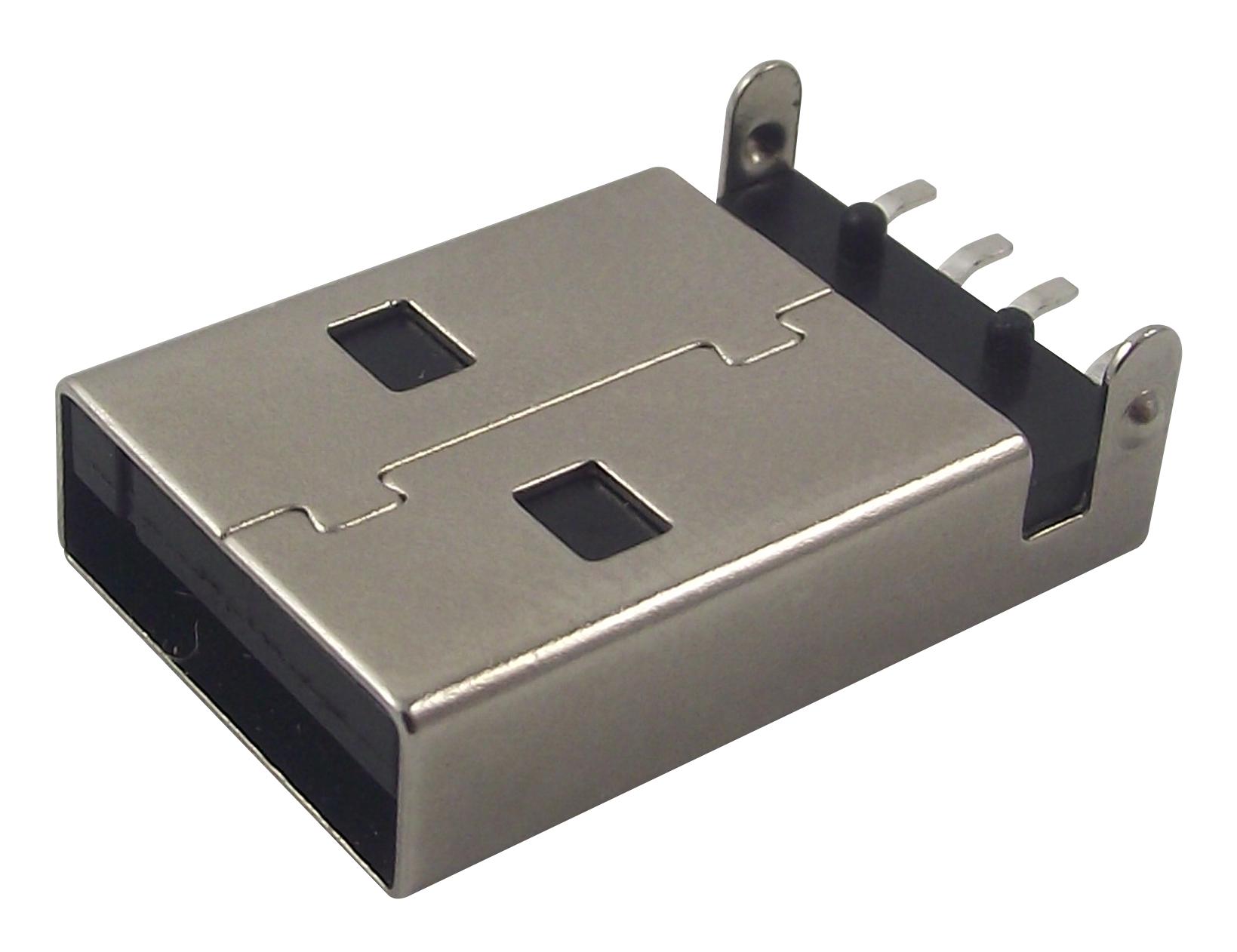

MULTICOMP-PRO MC000991 USB Plug
The USB Type A straight SMT plug is designed for reliable soldering onto PCBs, featuring gold-plated contacts and high-temperature plastic insulators. It supports a maximum current of 1A and voltage of 30V AC/DC, making it suitable for various electronic applications. The plug withstands voltage of 750V AC for one minute, with strong contact and insulation resistance ratings. Operating efficiently in temperatures from -40°C to +105°C, it offers durable performance in harsh conditions, ensuring secure and stable connections in modern electronic devices and equipment.
MULTICOMP-PRO MC000991 USB Plug Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 30V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1,000MΩ Min.
- Withstanding Voltage: 750V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator: High Temp Plastic
- Insulator Colour: Black
- Contact Material: Copper Alloy
- Plating: Gold Plated in contact area, Tin Plated on solder tails
- Insertion Force: 21 to 2 kg/pe
- Withdrawal Force: 0.8 to 2 kg/pe
- Dimensions: Millimetres, specific part dimensions available in datasheet
Buy the Multicomp Series USB Plug: MC000991
Purchase the Multicomp Series USB Plug MC000991 online today for secure, high-quality PCB connections in your electronic projects. Designed for durability, it features gold-plated contacts and high-temp plastic insulators, supporting 1A current and 30V voltage ratings. Its robust construction withstands voltages up to 750V AC for one minute and operates efficiently between -40°C and +105°C, ensuring reliable performance. Ideal for manufacturers and technicians seeking a dependable, easy-to-solder USB connector with excellent resistance and long-term stability.
Buy Multicomp Series USB Plug MC000991 now and experience reliable PCB connections with high durability and performance in electronic systems.
