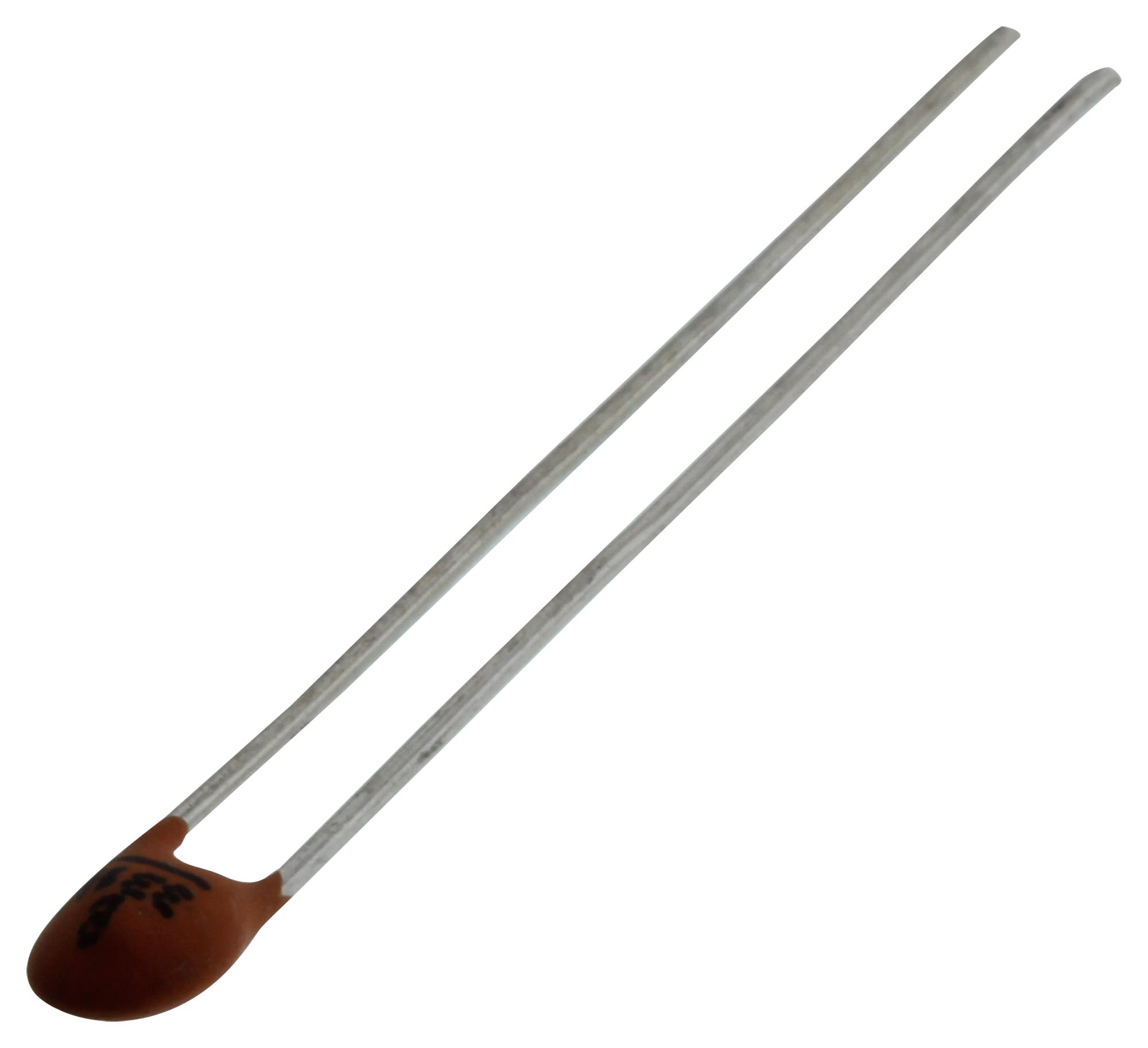

MULTICOMP PRO MCBU5331K5 Ceramic Disc Capacitor
The ceramic disc capacitors from the MCBU and MCFU series are designed for general-purpose electronic applications, offering large capacitance in small sizes with a temperature coefficient that has a non-linear variation. These capacitors feature a capacitance range from 100pF to 47,000pF, with a voltage rating of 50V. They are suitable for use in various electronic devices, providing reliable insulation resistance, dielectric strength, and controlled dissipation factor, making them ideal for diverse industrial and consumer electronic circuits.
MULTICOMP PRO MCBU5331K5 Ceramic Disc Capacitor Specifications:
- Capacitance Range: 100pF to 47,000pF
- Capacitance Tolerance: +10%, +80% to -20%
- Operating Temperature Range: -25°C to 85°C (YP), 10°C to 85°C (Z5V)
- Rated Working Voltage: 50V DC
- Dissipation Factor (tan δ): < 5%
- Insulation Resistance: ≥ 10,000 MΩ at 25°C or ≥ 200 MΩ·μF, whichever is smaller
- Dielectric Strength: 2.5 times rated voltage DC
- Dimensions: diameter varies (5mm, 6mm, 7mm, 8mm), length approximately 25mm to 35mm depending on size
- Capacitance coding: 101 (100pF), 221 (220pF), 331 (330pF), 471 (470pF), 102 (1nF), 222 (2.2nF), 332 (3.3nF), 472 (4.7nF)
Buy the Buy Multicomp Ceramic Disc Capacitors Part Number MCBU5331K5 Online
Order the Multicomp ceramic disc capacitor MCBU5331K5 online and experience reliable performance in electronic circuits. With a capacitance of 330pF, a voltage rating of 50V, and high insulation resistance, it is ideal for general-purpose use. Its compact size and stable temperature characteristics make it suitable for a wide range of industrial and consumer electronics. Buy now for fast shipping and quality assurance, ensuring your project or repair is completed with premium components that deliver consistent results over time.
Get Multicomp ceramic disc capacitor MCBU5331K5 today—designed for reliable performance and long-lasting durability in electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCBU5331K5?
You can click on the BUY or RFQ button to purchase MCBU5331K5 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCBU5331K5?
You can download the MCBU5331K5 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCBU5331K5?
MULTICOMP PRO
