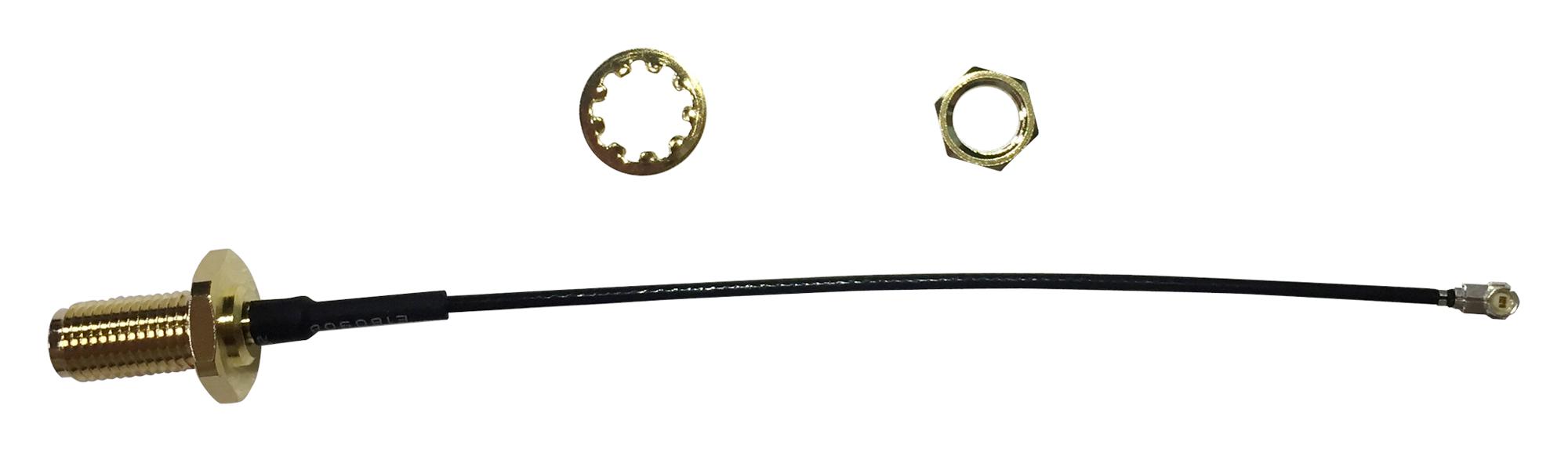

MULTICOMP PRO MC001030 RF Coaxial Cable Assembly
The MC001030 is a 100mm RF coaxial cable assembly designed for outdoor applications. It features an IP67 waterproof contact-sealed RP-SMA bulkhead jack on one end and a U.FL plug on the other, ensuring moisture protection even when an external antenna cable is disconnected. Made with a 1.37mm low-loss cable, it operates over a frequency range of DC to 6GHz with a typical impedance of 50Ω. The cable has a maximum working voltage of 170Vrms, dielectric withstanding voltage of 750Vrms, and an insulator resistance of at least 100MΩ. It offers a VSWR of up to 1.4:1 and an insertion loss of -0.7dB maximum, in a black sheath suitable for temperatures between -20°C and +70°C. Ideal for RF communication applications requiring reliable waterproof connections.
MULTICOMP PRO MC001030 RF Coaxial Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC to 6.0GHz
- Working Voltage: 170Vrms Max.
- Dielectric Withstanding Voltage: 750Vrms Max.
- Insulator Resistance: ≥100MΩ
- Cable Diameter: 1.37mm
- VSWR: Up to 1.4:1
- Insertion Loss: Max -0.7dB at DC to 3.0GHz
- Material: Black high-quality coaxial cable
- Connector Type: RP-SMA-U.FL contact-sealed, waterproof
- Length: 100mm
- Temperature Range: -20°C to +70°C
- RoHS Compliant: Yes
Buy the Multicomp Pro MC001030 – Reliable Waterproof RF Coaxial Cable for Industrial Applications
Order the Multicomp Pro RF Coaxial Cable Assembly MC001030 today to ensure robust waterproof connections for your outdoor RF applications. With a 100mm length, IP67 sealing, and operation up to 6GHz, it is ideal for reliable communication systems. Featuring a durable black sheath, high impedance of 50Ω, and excellent dielectric and electrical properties, this cable is perfect for professional installations. Secure yours online now for high performance, weatherproofing, and easy integration into your RF setups.
Buy Multicomp Pro MC001030 now and experience unmatched reliability and performance in outdoor RF connectivity solutions.
