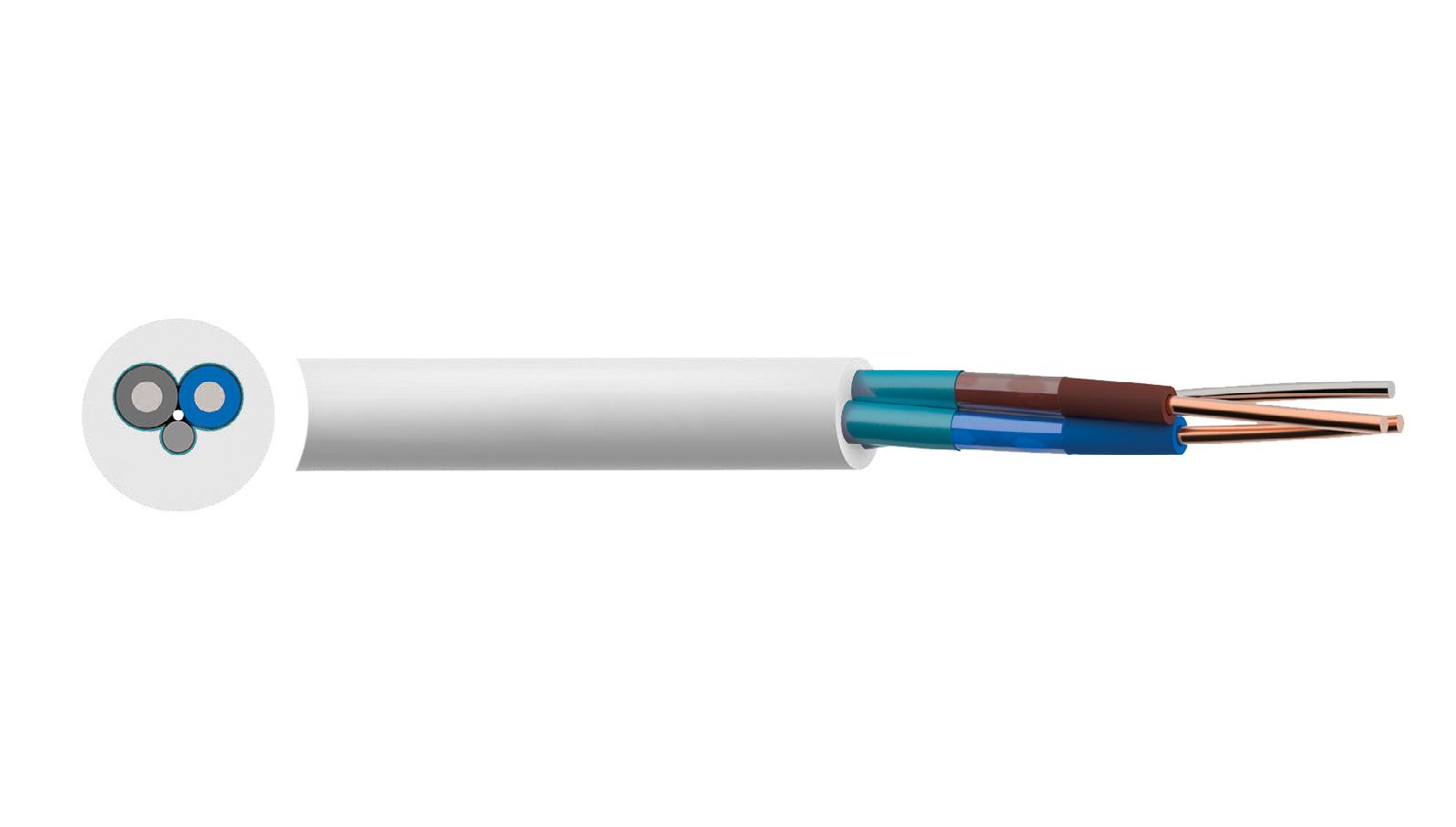

MULTICOMP-PRO MP002419 Fire Resistant Multicore Cable
This fire-resistant multicore cable features a high-performance silicone rubber insulation, solid conductors ranging from 1.5mm² to 2.5mm², and LSZH outer sheath in red or white. Designed for fire detection, alarm, voice alarm, and emergency lighting circuits, it maintains operation during fire situations, adhering to standards like BS 7629-1 and BS EN/IEC 60754. It offers a voltage rating of 300V/500V, temperature resistance from -40°C to +90°C, and minimal bending radius of 6 times overall diameter, making it ideal for critical safety applications.
MULTICOMP-PRO MP002419 Fire Resistant Multicore Cable Specifications:
- Voltage Rating: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Conductor: Class 1 Solid, 1.5mm² to 2.5mm²
- Insulation Material: High performance fire-resistant silicone rubber
- Outer Sheath: LSZH (Low Smoke Zero Halogen), in Red & White
- Minimum Bending Radius: 6 x overall diameter
- Standards & Approvals: BS 7629-1, BS 5839-1, BS EN/IEC 60754-1/2, BS EN 61034-2, BS EN 50200-PH30/60/90/120, BS 6387, BS 5266-1, BS 8519, BS EN 60228
- Conductors Resistance: 12.1Ω/km for 1.5mm², 7.41Ω/km for 2.5mm²
- Current Rating: 24A for 1.5mm², 33A for 2.5mm²
- Voltage Drop: 30-18 mV/A/m depending on core size
- Construction: Tinned copper cores with core identification in blue, brown, black, gray, and bare earth wires
- Minimum Bending Radius: 6 times overall diameter
Buy the Multicomp Series Fire Resistant Multicore Cable: MP002419
Purchase Multicomp fire-resistant multicore cable MP002419 online today. Perfect for fire detection, alarm systems, and emergency lighting, this cable features high-performance silicone insulation, solid conductors, and an LSZH outer sheath, ensuring safety and reliability in fire situations. With compliance to key standards and a temperature rating from -40°C to +90°C, it offers excellent flexibility with a minimum bending radius of 6 times overall diameter. Order now for maximum safety in critical environments.
Get Multicomp fire-resistant multicore cable MP002419 today—designed for critical safety applications with high durability and compliance.
