MULTICOMP PRO MC001038 RF Coaxial Cable Assembly

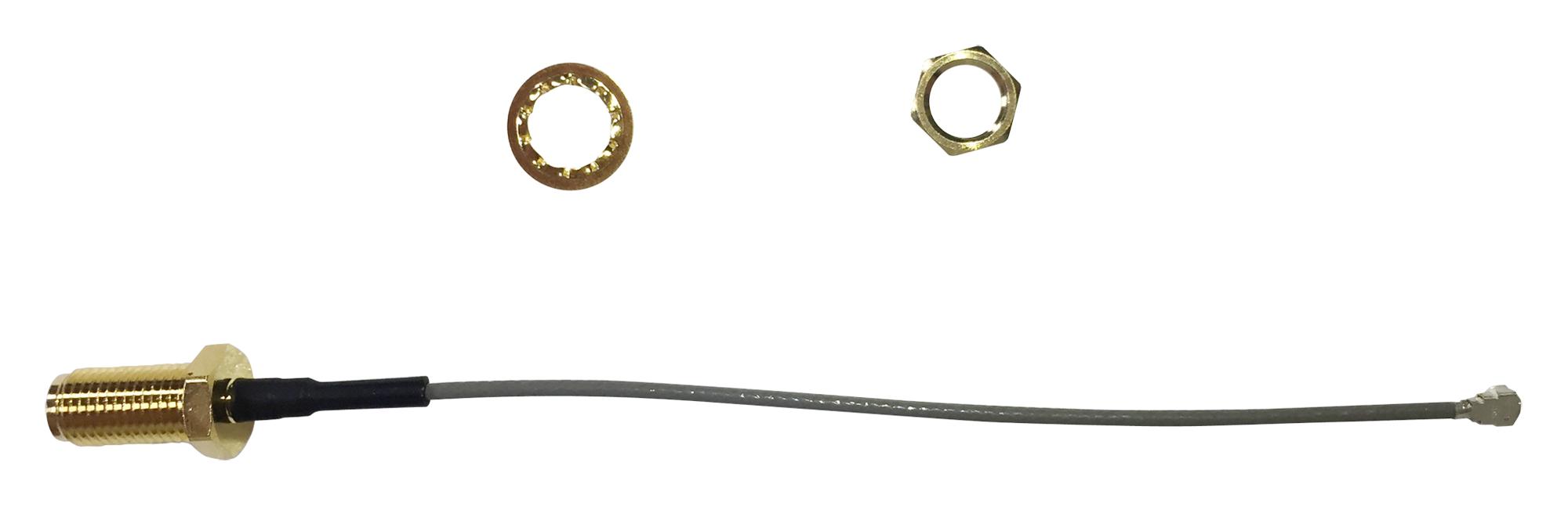

The MC001038 is a 300mm RF coaxial cable assembly with an SMA bulkhead jack on one end and a U.FL 90° connector on the other. Featuring 1.32mm double-screened low-loss micro coaxial cable, it minimizes PCB noise pickup in RF communication systems. It has a characteristic impedance of 50Ω, operates from DC to 3 GHz, with a maximum working voltage of 60Vrms and dielectric withstand voltage of 200Vrms. The insulator resistance is ≥500MΩ, maximum VSWR is 1.4:1, and insertion loss is -1.7dB. Suitable for outdoor RF applications within -20°C to +70°C.

View MC001038Datasheet [pdf]

Buy the Multicomp Series RF Cable: MC001038

Buy the Multicomp Series RF Coaxial Cable Assembly MC001038 now. This 300mm low-loss, double-screened cable features SMA and U.FL connectors, offering reliable performance from DC to 3 GHz. Designed for outdoor RF communication, it provides 50Ω impedance, maximum working voltage of 60Vrms, dielectric withstand voltage of 200Vrms, and insulator resistance above 500MΩ. With a VSWR of 1.4:1 and low insertion loss, it ensures robust signal integrity for your outdoor and indoor RF applications. Order online today for prompt delivery.

Order your Multicomp Series RF Cable MC001038 today and ensure your RF projects benefit from reliable, low-loss, outdoor-rated coaxial connections.
