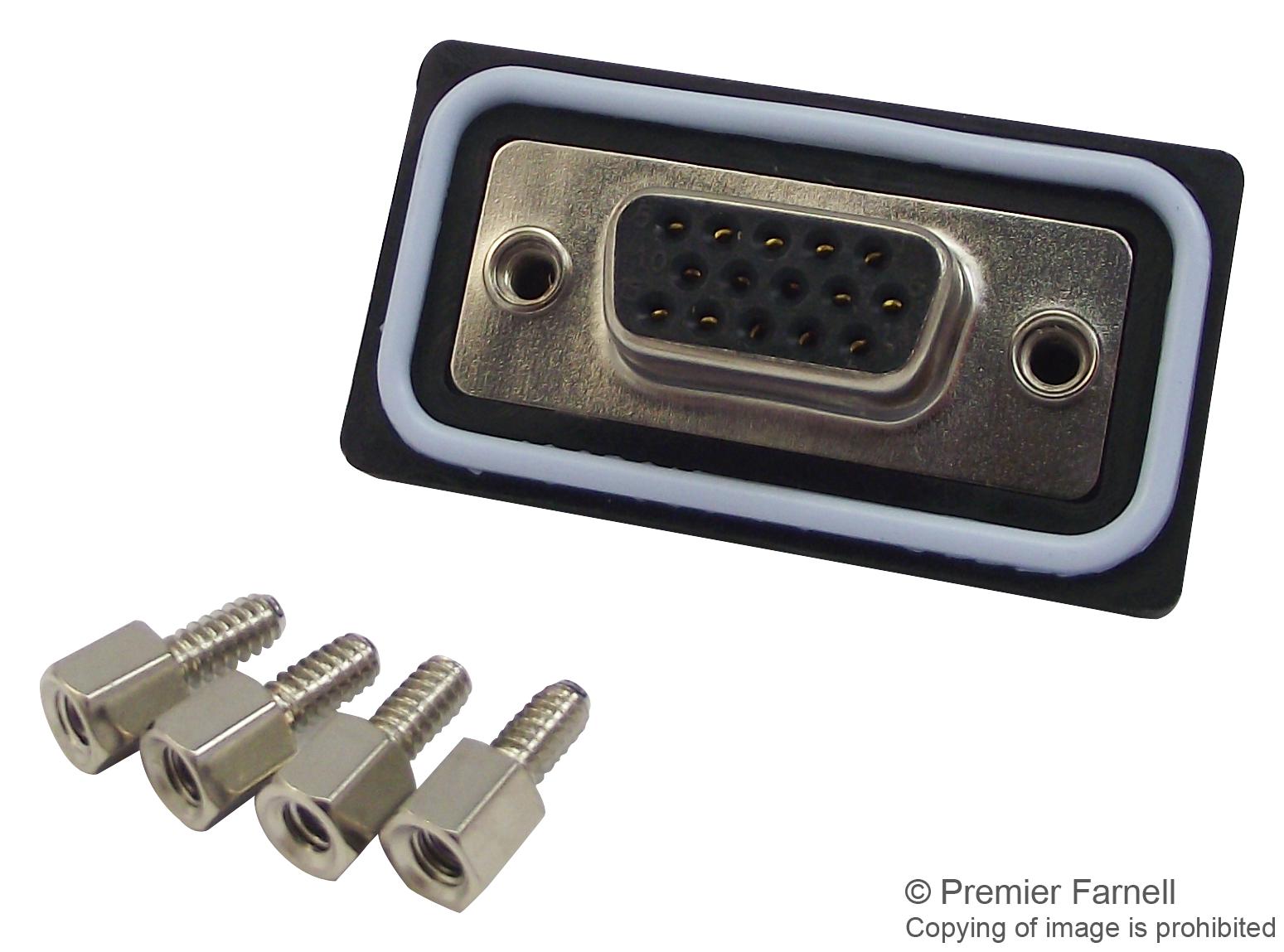

MULTICOMP PRO MC000968 Waterproof D-Sub Connector
The waterproof D-Sub connector is designed for high-density applications with straight PCB mounting. It features IP68 waterproof rating when properly mated, making it suitable for harsh environment use. The connector supports a 15-pin female configuration with a robust nylon and glass-filled insulator, brass gold-plated pins, and a silicone O-ring for sealing. It is rated for 2A current, 120V AC voltage, with dielectric withstand voltage of 1,000VRms, operating from -40°C to +105°C, and complies with RoHS standards. Ideal for reliable signal transmission in demanding conditions.
MULTICOMP PRO MC000968 Waterproof D-Sub Connector Specifications:
- Waterproof Rating: IP68 when properly mated, IP67 submerged in 1M water for 24 hours
- Current Rating: 2A
- Voltage Rating: 120V AC
- Dielectric Withstanding Voltage: 1,000VRms
- Insulation Resistance: 100MQ Min. at DC 500V
- Contact Resistance: 25mQ Max.
- Operating Temperature: -40°C to +105°C
- Material: Nylon+33%GF body, Brass gold-plated pins, Silicone O-ring
- Dimensions: Panel cut-out 11.0mm x 28.2mm, pin length approx. 15 mm
- Connector Type: Straight PCB mount, high-density 15-pin female
Buy the Multicomp Series Waterproof D-Sub Female Connector: MC000968
Purchase the waterproof D-Sub connector online today to secure high-density, durable signal connections suitable for harsh environments. Designed with IP68 sealing and high-quality materials, this 15-pin female connector guarantees optimal performance and reliability. Its robust construction includes a nylon+GF body, gold-plated pins, and a silicone O-ring for excellent sealing against water and dust ingress. With a current capacity of 2A and voltage rating of 120V AC, it is ideal for industrial, automation, and outdoor applications. Buy now for a dependable, long-lasting connection solution.
Order your Multicomp Series waterproof D-Sub 15 pin female connector MC000968 today and ensure reliable protection for your signal connections in tough environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000968?
You can click on the BUY or RFQ button to purchase MC000968 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000968?
You can download the MC000968 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000968?
MULTICOMP PRO
