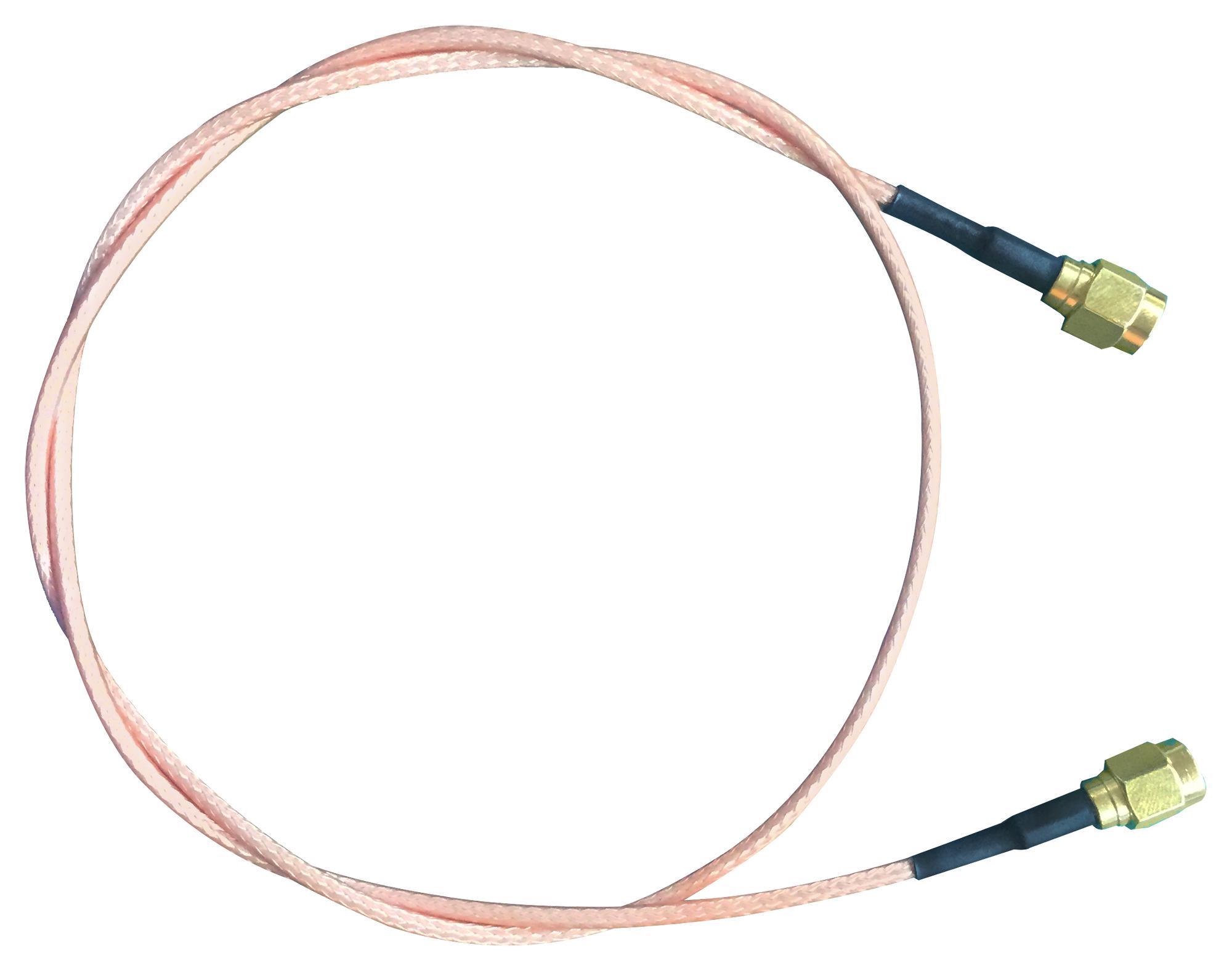

MULTICOMP PRO MC001050 RF coaxial cable assembly
The MC001050 SMA straight plug-to-SMA straight plug cable assembly features nickel-plated brass connectors with gold-plated contacts and PTFE insulators. It uses RG316 cable with a transparent jacket, measuring a total length of 609.6mm. Operating over a frequency range of 0 to 3 GHz, it offers an insertion loss of approximately 1.1 dB, a VSWR of 1.3 or better, and an impedance of 50 ohms. Suitable for RF applications, this assembly is ideal for high-frequency testing and communication equipment integration, providing reliable signal transfer and durability in demanding environments.
MULTICOMP PRO MC001050 RF coaxial cable assembly Specifications:
- Frequency Range: 0 to 3 GHz
- VSWR: 1.3 or better
- Insertion Loss: approximately 1.1 dB
- Impedance: 50 ohms
- Connectors: Nickel-plated brass with gold-plated contacts
- Insulator: PTFE
- Cable Type: RG316, transparent jacket
- Length: 609.6mm
- Connector Type: SMA straight plug-to-SMA straight plug
- Maximum Voltage: 335 V
- Temperature Range: -55°C to +165°C
Buy the Multicomp Series SMA Cable Assembly: MC001050
Enhance your RF setup with the Multicomp Series SMA cable assembly. Featuring high-quality nickel-plated brass connectors, PTFE insulators, and RG316 cable, this 609.6mm cable operates from 0 to 3 GHz with low insertion loss and excellent VSWR. Designed for durability and precise signal transfer, it is ideal for communications, testing, and measurement applications. Purchase online now to enjoy reliable performance and quick delivery, ensuring your projects stay on track with the highest quality RF components available.
Order your Multicomp Series SMA Cable Assembly MC001050 today and ensure reliable high-frequency signal transmission for your RF applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001050?
You can click on the BUY or RFQ button to purchase MC001050 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001050?
You can download the MC001050 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001050?
MULTICOMP PRO
