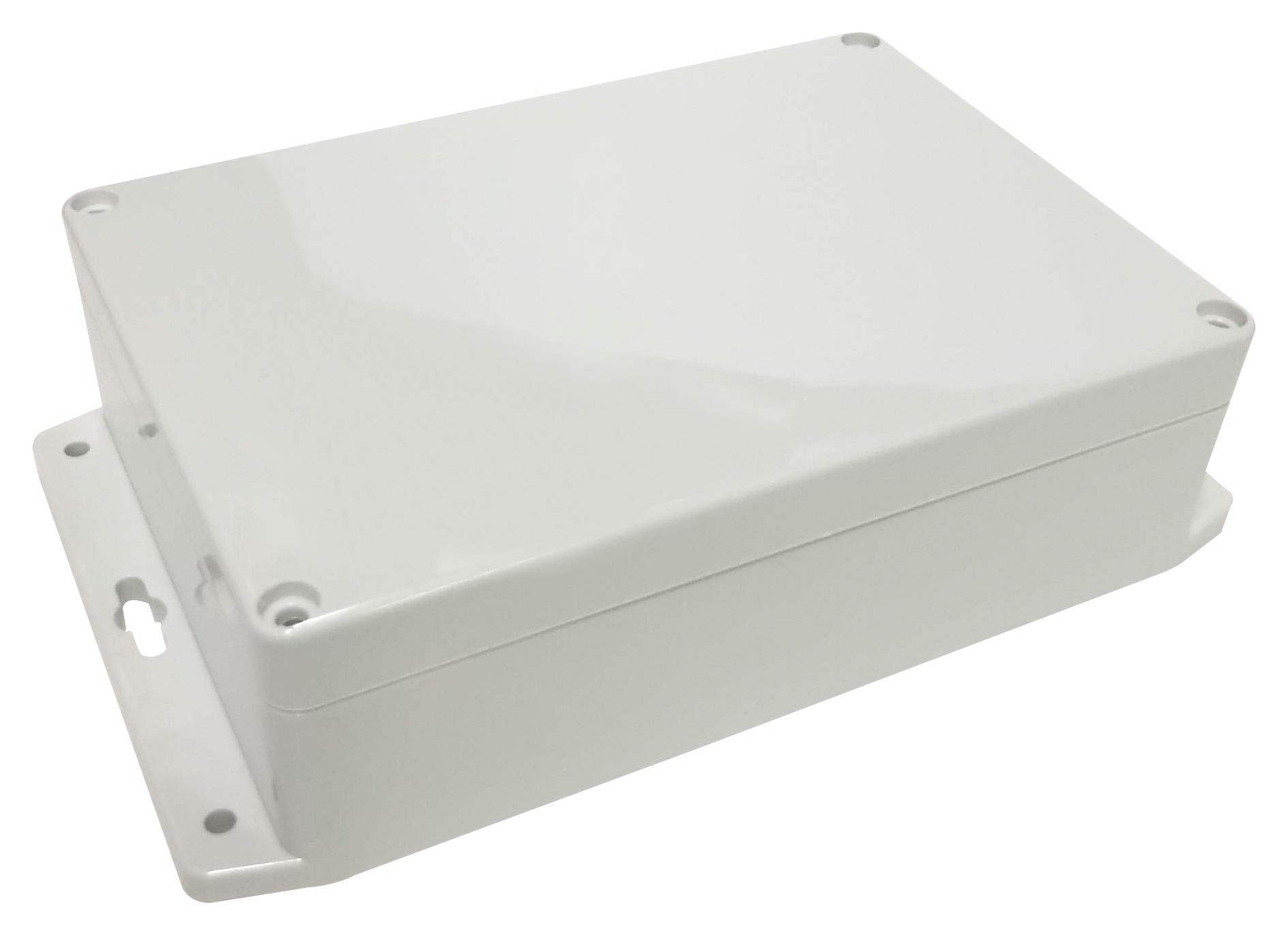

MULTICOMP PRO MC001098 Sealed Enclosure
Sealed polycarbonate and ABS enclosures with mounting flange are ideal for industrial and electronic applications, providing IP65 dust and hoseproof protection. They feature a tongue and groove sealing system with an EPDM gasket, external mounting holes for moisture prevention, and internal bosses for PCB fixing. Available in transparent or grey variants, these enclosures operate up to 120°C (polycarbonate) or 80°C (ABS), offering durable, corrosion-resistant protection for electronic components in challenging environments.
MULTICOMP PRO MC001098 Sealed Enclosure Specifications:
- Material: Polycarbonate (UL94-HB) or High Impact ABS (UL94-HB)
- Operating Temperature: -40°C to 120°C (Polycarbonate), -20°C to 80°C (ABS)
- Ingress Protection: IP65 of IEC 529 (Dust and hoseproof)
- Seal System: Tongue and groove with EPDM gasket
- Mounting: Wall mounting holes outside sealing area, flange on bottom of base
- Enclosure Dimensions (various): 64x58x35 mm to 222x146x90 mm, depending on model
- Finder bosses: Internal for PCB or terminal fixing with M3X4mm self-tapping screws
- Fixing Holes: M3, M4, M6, designed for pan head machine screws
- Color Options: Clear, Light Grey (Polycarbonate); Dark Grey (ABS)
- Application: Industrial, electronics, automation, control panels
Buy the Multicomp Series Enclosure: Sealed Polycarbonate and ABS IP65 Dustproof Enclosure: MC001098
Purchase the Multicomp Series Sealed Enclosure MC001098 online now to ensure optimal protection for your electronic assemblies. These enclosures are IP65 rated, dust and hoseproof, making them suitable for harsh industrial environments. Constructed from durable polycarbonate with a clear option for easy inspection, or high-impact ABS in dark grey for robustness. With wall mounting holes, internal bosses for PCB fixing, and compatible screw options, these enclosures offer versatile, secure, and long-lasting protection for your electronic projects. Order today for reliable durability and ease of assembly.
Get Multicomp Series Enclosure MC001098 today—crafted for durable protection of electronics in challenging environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001098?
You can click on the BUY or RFQ button to purchase MC001098 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001098?
You can download the MC001098 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001098?
MULTICOMP PRO
