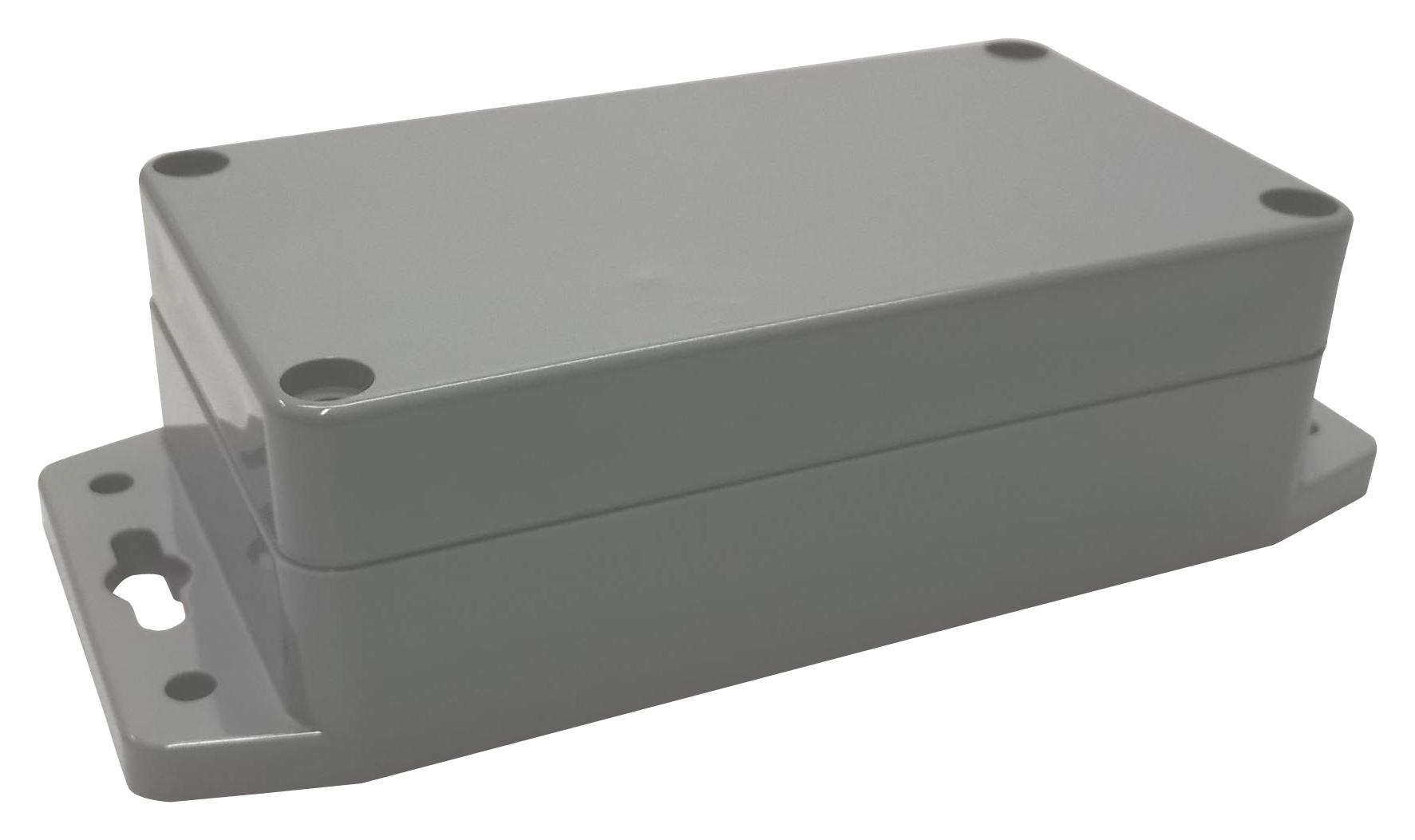

MULTICOMP PRO MC001114 Enclosure
Sealed polycarbonate and ABS enclosures with mounting flange, designed for industrial applications. They feature dustproof and hoseproof IP65 rating, with wall mounting holes and lid fixing screws outside the sealing area to prevent moisture ingress. Available in clear or light grey with internal boss mounting points for PCBs and terminal connections. Polycarbonate variants operate from -40°C to 120°C, while ABS variants operate from -20°C to 80°C. Suitable for protecting electronic components in harsh environments, these enclosures are easy to install and provide reliable sealing and durability.
MULTICOMP PRO MC001114 Enclosure Specifications:
- Material: Polycarbonate (UL94-HB), ABS (UL94-HB)
- Operating Temperature: -40°C to 120°C (Polycarbonate), -20°C to 80°C (ABS)
- IP Rating: IP65 (Dust and Hoseproof)
- Mounting Holes: Outside sealing area for moisture prevention, designed for M3X4mm self-tapping screws, M4 or M6 pan head screws depending on variant
- External Dimensions: Varies by model, e.g., 90x35x35 mm, 115x65x40 mm, 222x146x75 mm
- Lid: Clear or Light Grey in polycarbonate, Light Grey in ABS
- Wall Mounting: Flange on the base for easy screw mounting
- Bosses for PCB and terminal mounting inside enclosures
- Sealing System: Tongue and groove with EPDM gasket
- Housing Types: Moulded in polycarbonate or ABS, suitable for industrial electronics
Buy the MULTICOMP-PRO Series Enclosure Polycarbonate/ABS Part Number MC001114
Purchase multicomp PRO enclosures online today to ensure your electronic components are protected in harsh industrial environments. These IP65 rated enclosures feature a reliable tongue and groove sealing system with EPDM gasket, available in polycarbonate and ABS variants for temperature ranges from -40°C to 120°C and -20°C to 80°C respectively. Easy to mount thanks to bottom flange design and wall mounting holes, they offer internal bosses for PCB and terminal connections. Secure your electronics with durable, inspection-friendly enclosures from multicomp PRO.
Buy multicomp PRO enclosures now and experience unmatched durability, IP65 sealing, and versatile mounting options for your industrial protection needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001114?
You can click on the BUY or RFQ button to purchase MC001114 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001114?
You can download the MC001114 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001114?
MULTICOMP PRO
