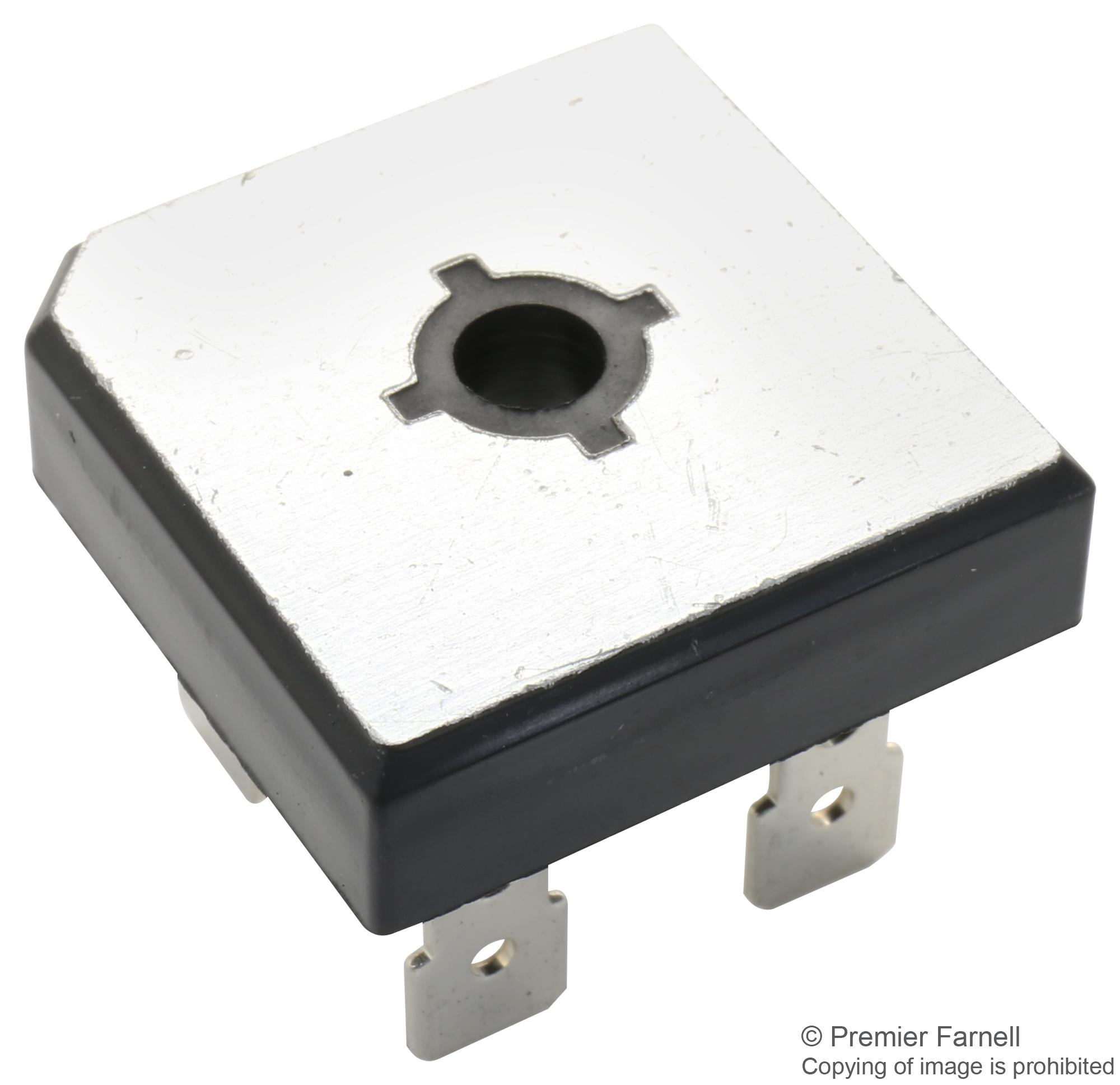

MULTICOMP PRO GBPC5010 Bridge Rectifier
This high-performance bridge rectifier is designed for efficient half-wave rectification, featuring glass passivated junctions and an integrally molded heatsink for excellent heat dissipation. Suitable for resistive or inductive loads, it supports surge overload ratings up to 400A and bipolar voltage ratings of 800V and 1,000V depending on model. Constructed with RoHS-compliant materials, it offers low thermal resistance, solderable terminals, and high-temperature soldering capabilities. Its robust design ensures reliable operation in demanding power supply applications, with a maximum operating temperature of up to 150°C and isolation voltage exceeding 2,500V from case to lead.
MULTICOMP PRO GBPC5010 Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 800V (GBPC5008+), 1000V (GBPC5010+)
- Maximum RMS Voltage Vems: 560V (GBPC5008+), 700V (GBPC5010+)
- Maximum DC Blocking Voltage Voc: 800V (GBPC5008+), 1000V (GBPC5010+)
- Maximum Average Forward Rectified Current I (av): 50A
- Peak Forward Surge Current Irs: 400A
- Maximum Instantaneous Forward Voltage Drop Per Element: 1.41V at 25A
- Maximum DC Reverse Current Ir: 10A
- Thermal Resistance Rec: 1.5°C/W
- Operating and Storage Temperature Range: -50°C to +150°C
- Dimensions: 1.14 in x 0.892 in x 0.26 in (28.9mm x 22.6mm x 6.6mm)
- Hole for #10 Screw: 0.22 in (5.59mm)
- Isolation Voltage: Over 2,500V from case to lead
- Construction: Glass passivated junction, molded heatsink, RoHS compliant
- Mounting: Universal 4-way terminals; solder, snap-on, wrap-around, PCB mounting
- Surge Overload Ratings: 400A
- Temperature Range: -50°C to +150°C
- Materials: RoHS-compliant, plastic casing for durability
Buy the Buy Multicomp Bridge Rectifier Part Number GBPC5010+ Online
Purchase the Multicomp GBPC5010+ bridge rectifier online to ensure your power supply needs are met with high efficiency and durability. This rectifier features a robust glass passivated junction and molded heatsink for excellent heat dissipation, supporting surge currents up to 400A and voltage ratings of 1000V. Its RoHS-compliant design and high-temperature soldering capability make it ideal for demanding industrial environments. With dimensions compactly designed for easy installation, it guarantees reliable operation over a broad temperature range, making it your perfect choice for efficient power conversion.
Get Multicomp GBPC5010+ today—built for high voltage handling and reliable power conversion in industrial and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC5010?
You can click on the BUY or RFQ button to purchase GBPC5010 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC5010?
You can download the GBPC5010 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC5010?
MULTICOMP PRO
