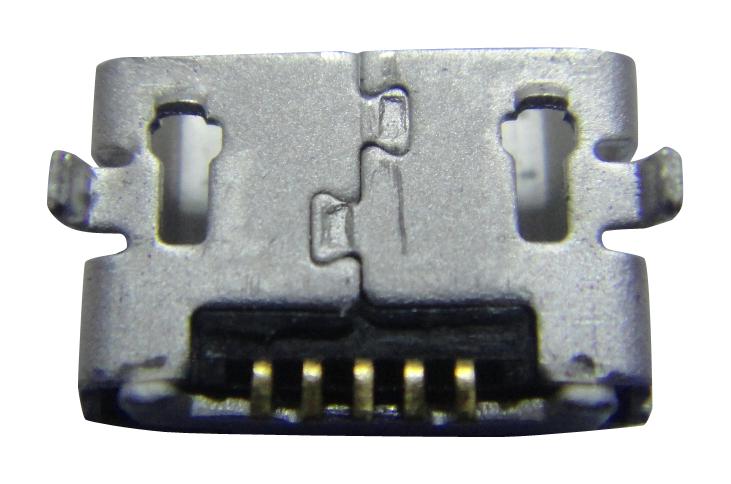

MULTICOMP PRO MC001667 Micro USB B Connector
The Reverse Micro USB B Female Connector offers a compact and reliable solution for applications requiring reverse orientation of Micro USB interfaces. Crafted from durable materials including PA10T housing with UL94V-0 flame retardant rating, SUS304 shell, and gold-plated contacts, this connector supports up to 10,000 mating cycles. It features a mating force of 3.57kgf max, unmating force of 8kgf min, and electrical ratings of 1.8A for pins 1 and 5, and 0.5A for pins 2 and 3. Operating temperature ranges from -30°C to +80°C, with a voltage withstand of 50V AC for one minute, ensuring robust performance in demanding environments.
MULTICOMP PRO MC001667 Micro USB B Connector Specifications:
- Housing Material: PA10T, UL94V-0, Black
- Shell Material: SUS304, T=0.3mm
- Contact Material: C2680H, T=0.15mm, Gold plated with 5u" Au at contact area, 1" Au at solder tail, and 50" Ni minimum underplate
- Contact Resistance: LLCR: 30mΩ max
- Electrical Rating: 1.8A for pins 1 & 5, 0.5A for pins 2 & 3
- Voltage Max: 50V AC withstand voltage for one minute
- Mechanical Durability: 10,000 mating cycles
- Mating Force: 3.57kgf max
- Unmating Force: 8kgf min
- Insulation Resistance: ≥1000MΩ at 250V DC
- Temperature Range: -30°C to +80°C
- Operation Temperature: -30°C to +80°C
- Waterproof Temperature: 60°C, 45°C humidity condition
Buy the Multicomp Series Reverse Micro USB B Female Connector: MC001667
Secure your electronic devices with the reliable Micro USB B connector. Crafted from durable materials with gold-plated contacts, it supports high cycle durability and operates efficiently within -30°C to +80°C temperature range. Featuring a max current of 1.8A at pins 1 and 5, and 0.5A at pins 2 and 3, this connector withstands voltage up to 50V AC and offers quick, easy mating. Perfect for compact, portable electronics requiring stable, long-lasting connections. Order online now to ensure seamless device integration.
Buy Multicomp Series Reverse Micro USB B Female Connector MC001667 now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001667?
You can click on the BUY or RFQ button to purchase MC001667 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001667?
You can download the MC001667 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001667?
MULTICOMP PRO
