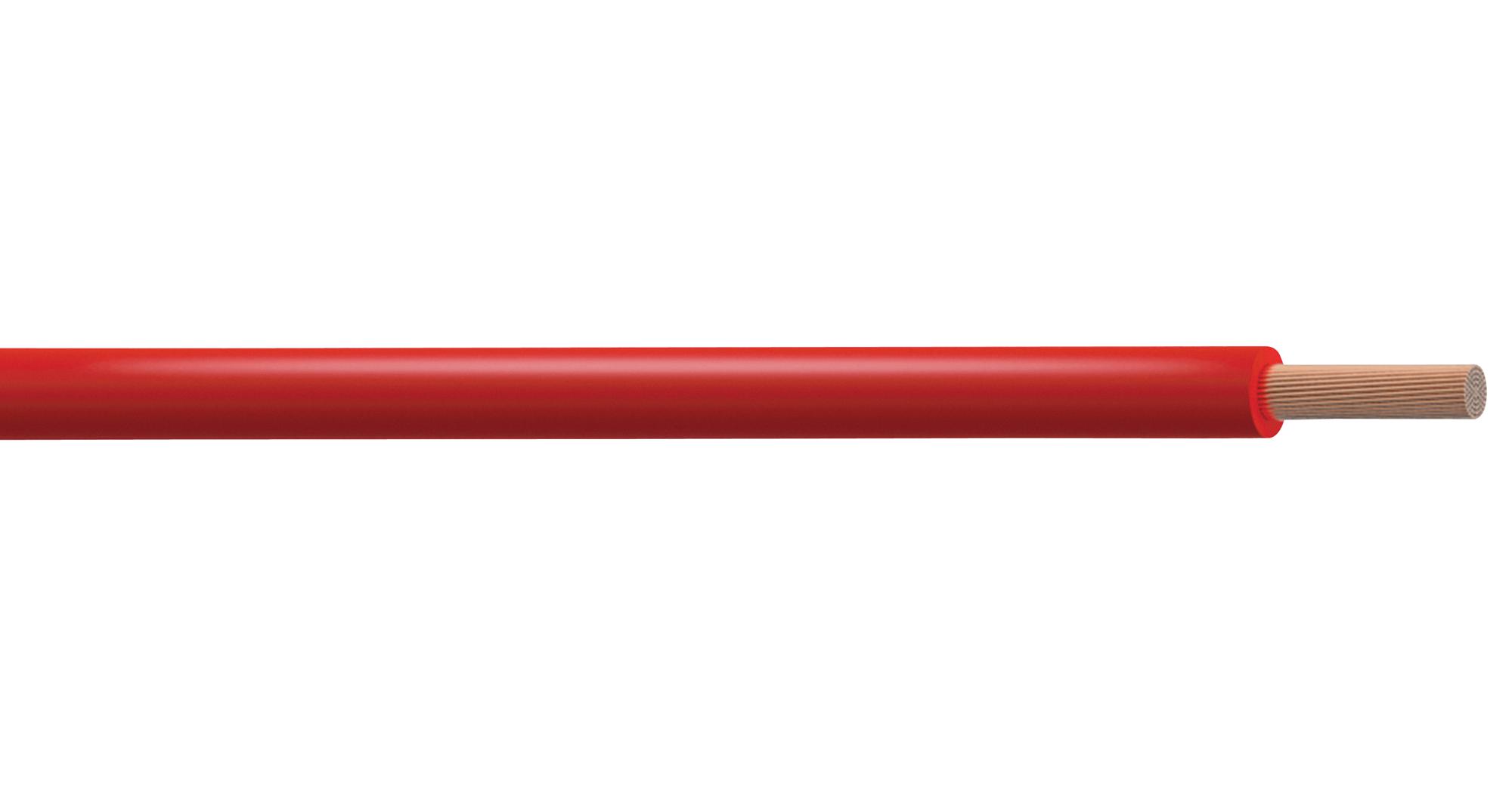

MULTICOMP PRO PP001278 Equipment Wire
The PP001278 is a 50-meter length of tri-rated flexible equipment wire featuring a Class 5 flexible copper conductor in accordance with BS EN 60228 (formerly BS 6360) standards. It is insulated with PVC type TI3 according to BS EN 50363, offering high temperature resistance and flame retardancy. This wire is suitable for use in switch control, relay, and instrumentation panels of power switchgear, as well as internal connections in rectifier equipment and controllers. It complies with various industry standards including BS 6231 Type CK, BS EN 50525-2-31, BS EN/IEC 60332, CSA C22.2 No. 210, and UL Subj 758/UL1015, and is rated for 450/750V voltage with a maximum operating temperature of 105°C. It has a maximum conductor resistance of 0.78 ohms per kilometer at 20°C. Designed for industrial applications, especially in motor drive and control systems.
MULTICOMP PRO PP001278 Equipment Wire Specifications:
- Voltage Rating: 450/750V
- Conductor: Class 5 flexible copper
- Insulation: PVC Type TI3
- Maximum Operating Temperature: +105°C
- Minimum Operating Temperature: -15°C
- Material: PVC insulation
- Standards: BS EN 60228, BS EN 50525-2-31, BS 6231 Type CK, UL Subj 758, CSA C22.2 No. 210, BS EN/IEC 60332
- Reel Length: 50 meters
- Color: Black, Blue, Brown, Dark Blue, Green, Grey, Green/Yellow, Light Blue, Orange, Pink, Red, Violet, White, Yellow
- Sheath Colour Options: Various
- Bending Radius: 6 x overall diameter
- Rated Voltage: 600/1000V
- RoHS Compliant
Buy the Buy Multicomp Equipment Wire Part Number PP001278 Online
Purchase the high-quality Multicomp Equipment Wire part number PP001278 online today. This 50-meter reel features a flame-retardant, high-temperature PVC insulation with a Class 5 copper conductor, ideal for switchgear, relays, and motor control applications. It meets industry standards such as BS EN 60228, BS EN 50525-2-31, and UL, CSA certifications, with a voltage rating of 450/750V and maximum operating temperature of 105°C. Easy to order and delivered quickly, ensuring your industrial projects remain on schedule with dependable wiring solutions.
Order your Multicomp SeriesPP001278 50-meter flexible PVC wire today and ensure reliable, flame-retardant connections in your power control panels.
