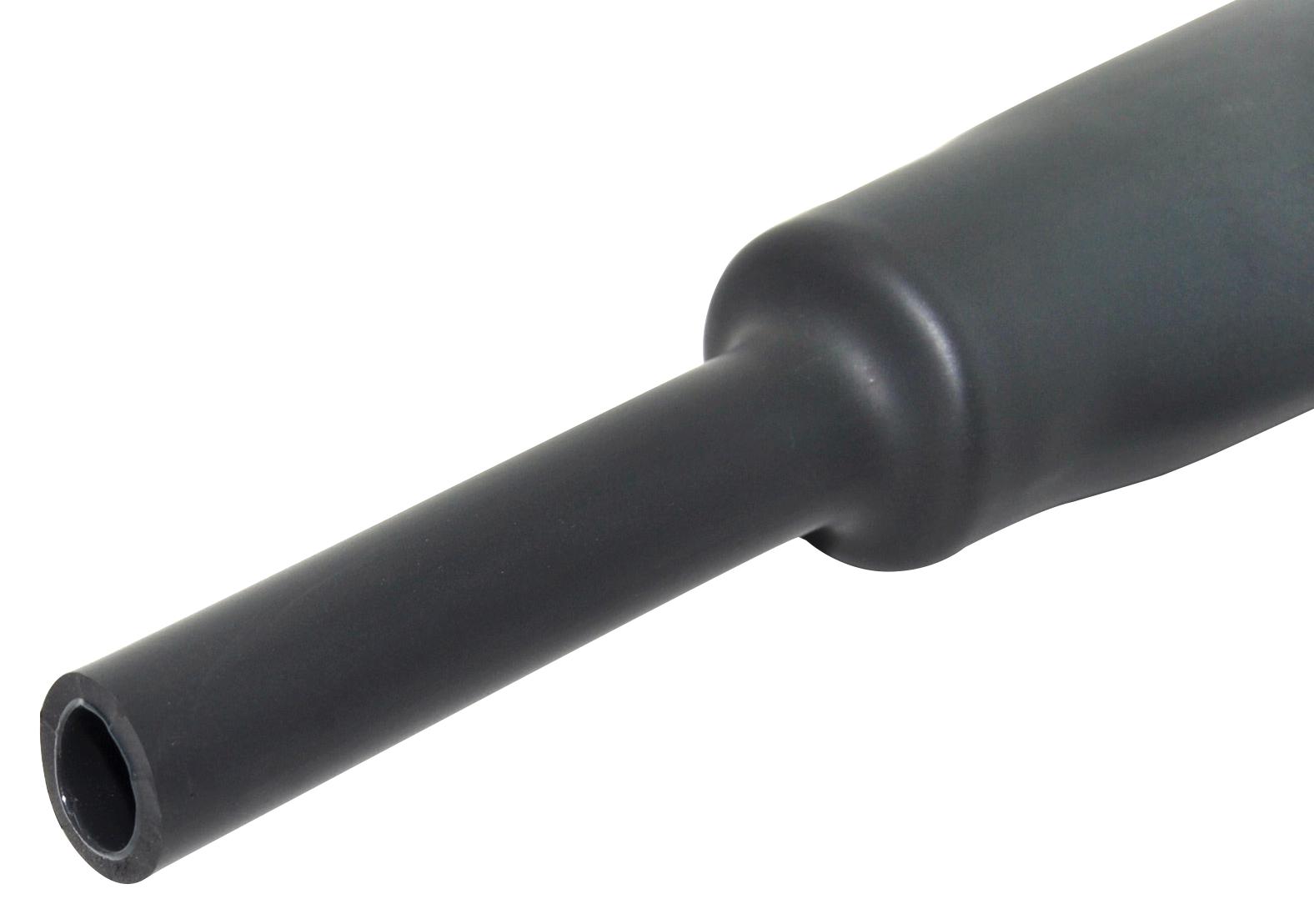

MULTICOMP PRO MC001680 Heat Shrink Tubing
This high-quality adhesive lined heat shrink tubing features a 3:1 shrink ratio and a VW-1 flammability rating. Made of polyethylene with hot melt adhesive, it ensures excellent insulation, corrosion resistance, and mechanical protection for wires, cables, and metal pipes. The tubing is designed for easy application with a heat gun, shrinking fully at 125°C from an initial diameter of approximately 212.7 mm to 4.2 mm, with a wall thickness of about 0.5 mm and adhesive layer of 0.2 mm. Ideal for electrical insulation, strain relief, and cable management in demanding environments.
MULTICOMP PRO MC001680 Heat Shrink Tubing Specifications:
- Shrink Ratio: 3:1
- Material: Polyethylene with hot melt adhesive
- Operating Temperature Range: -45°C to +125°C
- Flammability: VW-1
- Shrink Temperature: Starts at 70°C, fully shrinks at 125°C
- Dimensions (as supplied): Approximately 212.7 mm in diameter, length 152.4 mm per piece, Wall Thickness: 0.5 mm, Adhesive Wall Thickness: 0.2 mm
- Longitudinal Shrinkage: 8%
- Color: Black
- Tool: Heat gun for application
Buy the Multicomp Series Adhesive Lined Heat Shrink Tubing: MC001680
Order Multicomp adhesive lined heat shrink tubing online now to benefit from reliable insulation, corrosion resistance, and secure cable management. Designed with a 3:1 shrink ratio and rated VW-1 for safety, this tubing is ideal for electrical, electronic, and metal pipe protection. Easy to apply with a heat gun, it shrinks fully at 125°C, providing a tight seal around wires and components. Available in convenient lengths, it ensures durable insulation and strain relief for demanding industrial and electrical applications.
Get Multicomp MC001680 today—built for insulation, corrosion protection, and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001680?
You can click on the BUY or RFQ button to purchase MC001680 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001680?
You can download the MC001680 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001680?
MULTICOMP PRO
