MULTICOMP PRO MCWIW1029X104LF 25-turn square cermet trimmer
The 1029X series 9mm 25-turn square cermet trimmer potentiometer features wiper meets mechanical stops, solderable pins for secure connections, and infinite resolution for precise adjustments. It is available with an optional knob for finger adjustment. The device has a minimum insulation resistance of 1 GΩ at 500V DC and operates within a temperature range of -55°C to 125°C. Manufactured by Multicomp Pro, it boasts a rating of 4.6 out of 5 stars from users, with a 12-month limited warranty. The product is highly recommended by customers.
MULTICOMP PRO MCWIW1029X104LF 25-turn square cermet trimmer Specifications:
- Resistance range: 1kΩ to 1,000kΩ
- Resistance tolerance: 10%
- Absolute minimum resistance: 1% or 20Ω (whichever is greater)
- Contact resistance variation: 3% or 30Ω (whichever is greater)
- Adjustability: Voltage 0.01%, Resistance 0.05%
- Insulation resistance: 1 GΩ at 500V DC
- Dielectric strength: 600V AC
- Effective travel: 25 turns
- Power rating: 0.5 watt at 70°C
- Temperature range: -55°C to +125°C
- Temperature coefficient: ±100ppm/°C
- Vibration resistance: 98 m/s²
- Shock resistance: 390 m/s²
- Rotational life: 200 cycles
- Physical dimensions: 2.2mm diameter, 0.6mm height and depth
- Terminals: Solderable pins
- Mechanical stops: Wiper idles
- Standard packaging: 50 pieces per tube

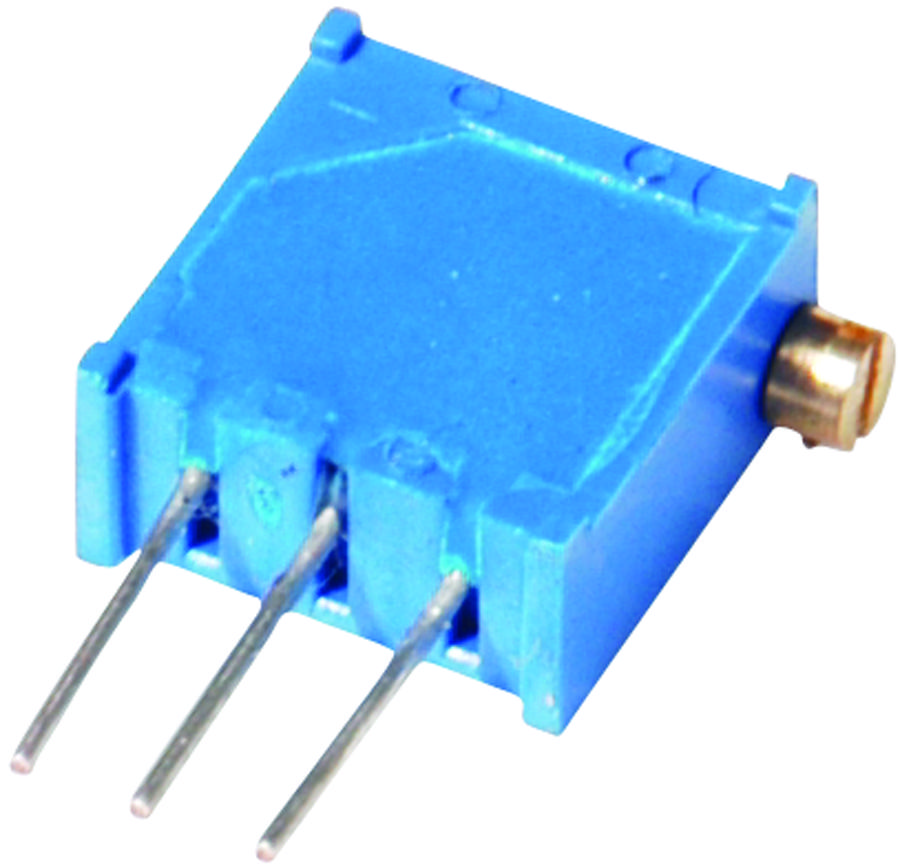

Buy the Multicomp Series 1029X Trimmer Potentiometer: MCWIW1029-X-104LF
Purchase this high-precision 25-turn square cermet trimmer potentiometer online today and benefit from its adjustable knob, solderable pins, and wide temperature range. Perfect for fine-tuning in industrial and electronic projects, it offers infinite resolution and excellent insulation resistance for reliable performance. With a rated power of 0.5W and robust construction, it ensures long-lasting durability. Whether for calibration, adjustment, or testing, this device provides the accuracy and stability needed for professional electronics and automation systems. Secure yours now!
Order your Multicomp Series 1029X 100kΩ 25-turn square cermet trimmer potentiometer today and enhance your precision adjustment needs with reliable quality.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCWIW1029X104LF?
You can click on the BUY or RFQ button to purchase MCWIW1029X104LF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCWIW1029X104LF?
You can download the MCWIW1029X104LF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCWIW1029X104LF?
MULTICOMP PRO
