MULTICOMP-PRO MC001829 H-type terminal block
The MC001829 by Multicomp Pro is a dual-row, H-type terminal block with a 10mm pitch and 8 poles. It is designed for wire sizes from 10AWG to 22AWG and features a current rating of 30A and a voltage rating of 600V. The terminal block has a stripped wire length requirement between 5.5mm and 6.5mm, with a maximum continuous operating temperature of 85°C, and can withstand temperatures from -30°C to +85°C. It has an insulation withstand voltage of at least 2000VAC and insulation resistance greater than 2000MΩ at 500VDC. The housing is made of white PA66 (UL94-V2) with zinc-plated steel screws and nickel-plated brass cage clamps. Suitable for industrial applications, this product comes with a 12-month limited warranty, and 96% of users recommend it.
MULTICOMP-PRO MC001829 H-type terminal block Specifications:
- Current Rating: 30A
- Voltage Rating: 600V
- Wire Range: 10 AWG to 22 AWG
- Stripped Length: 5.5mm to 6.5mm
- Maximum Continuous Working Temp: 85°C
- Operation Temperature: -30°C to +85°C
- Insulation Withstands Voltage: AC2000V min
- Insulation Resistance: >2,000MΩ DC500V
- Material: Insulating Body - PA66 (UL94-V2)
- Housing: White housing with zinc-plated steel screws
- Cage Clamp Material: Nickel-plated brass
- Dimensions: 10mm pitch, 8 poles, suitable for industrial applications

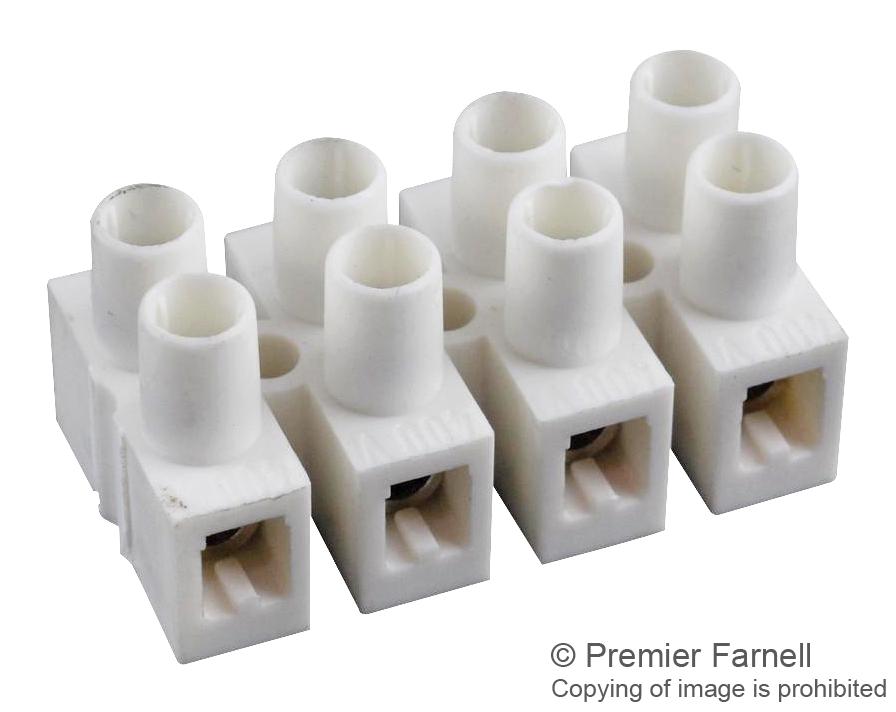

Buy the Multicomp Series H-Type Terminal Block: MC001829
Order the Multicomp Pro MC001829 H-type terminal block online today and enjoy secure, high-quality electrical connections. Designed for industrial applications, this terminal block features a 10mm pitch, 8 poles, and supports wire sizes from 10AWG to 22AWG. It provides a maximum current of 30A and withstands voltages up to 600V, ensuring safe and efficient operation. The housing made of durable PA66 with zinc-plated steel screws and nickel-plated brass cage clamps guarantees longevity and reliability. Perfect for automation and control panels, the MC001829 simplifies wiring and reduces maintenance, making it an essential component for professionals seeking efficiency and safety in electrical installations.
Buy Multicomp Pro MC001829 now and experience reliable electrical connections with high current capacity and excellent insulation resistance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001829?
You can click on the BUY or RFQ button to purchase MC001829 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001829?
You can download the MC001829 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001829?
MULTICOMP-PRO
