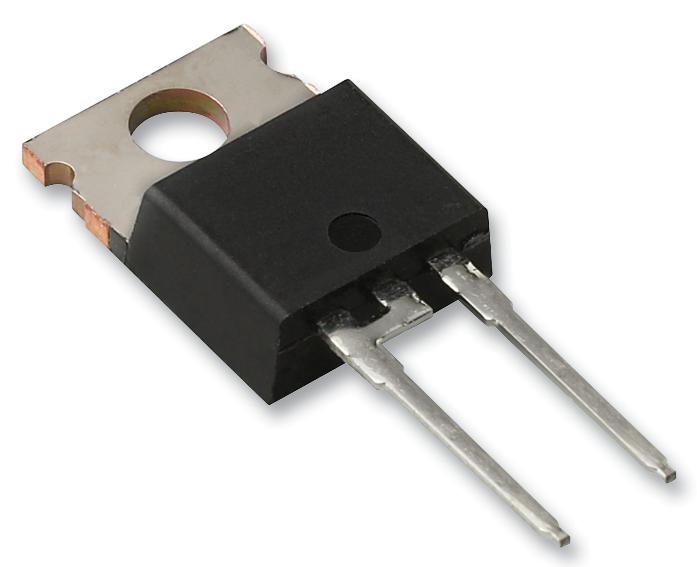

MULTICOMP PRO MUR1660 Superfast Rectifier
The MUR1640 and MUR1660 are high-performance, glass-passivated superfast rectifiers designed for use in high-frequency power applications such as SMPS and inverters. They feature ultra-fast recovery times of 35nS and 50nS, low forward voltage drops, and low reverse leakage currents, ensuring efficient operation. Constructed with a TO-220A molded plastic case, these diodes support a reverse voltage of 400V and 600V respectively, with a forward current of 16A. Their soft recovery characteristics and UL 94V-0 epoxy meet stringent safety and reliability standards.
MULTICOMP PRO MUR1660 Superfast Rectifier Specifications:
- Case: TO-220A molded plastic
- Terminals: Pure tin plated, lead free solderable per MIL-STD-202, method 208
- Polarity: As marked on the body
- Weight: Approximately 1.9 grams
- Mounting Position: Any
- Mounting Torque: Max 0.6 N.m
- Reverse Voltage: 400V (MUR1640), 600V (MUR1660)
- Forward Current: 16A
- Peak Forward Surge Current: 250A (8.3ms, single half sine wave)
- Max. Forward Voltage at 16A: 1.3V (MUR1640), 1.5V (MUR1660)
- Max. Reverse Current at 25°C: 10mA
- Max. Recurrent Peak Reverse Voltage: 400V (MUR1640), 600V (MUR1660)
- Max. RMS Voltage: 280V (MUR1640), 420V (MUR1660)
- Thermal Resistance, Junction to Ambient: 73°C/W
- Thermal Resistance, Junction to Case: 1.2°C/W
- Junction Capacitance: 145pF
- Operating Temperature Range: -65°C to +178°C
- Storage Temperature Range: Not specified
Buy the Multicomp Series Superfast Rectifier: MUR1660
Purchase the Multicomp Series MUR1660 superfast rectifier today from authorized distributors and online stores. Designed for high-frequency applications, it features ultra-fast recovery times, low forward voltage, and low reverse leakage current, making it ideal for SMPS, inverters, and freewheeling diode use. Its glass-passivated die construction ensures high switching speeds and durability. With a TO-220A molded plastic case, it supports a reverse voltage of 600V and a forward current of 16A, delivering reliable performance across a wide temperature range. Buy now for efficient power management and dependable circuit operation.
Order your Multicomp Series MUR1660 high-speed rectifier today and ensure your power conversion projects operate with efficiency and reliability.
