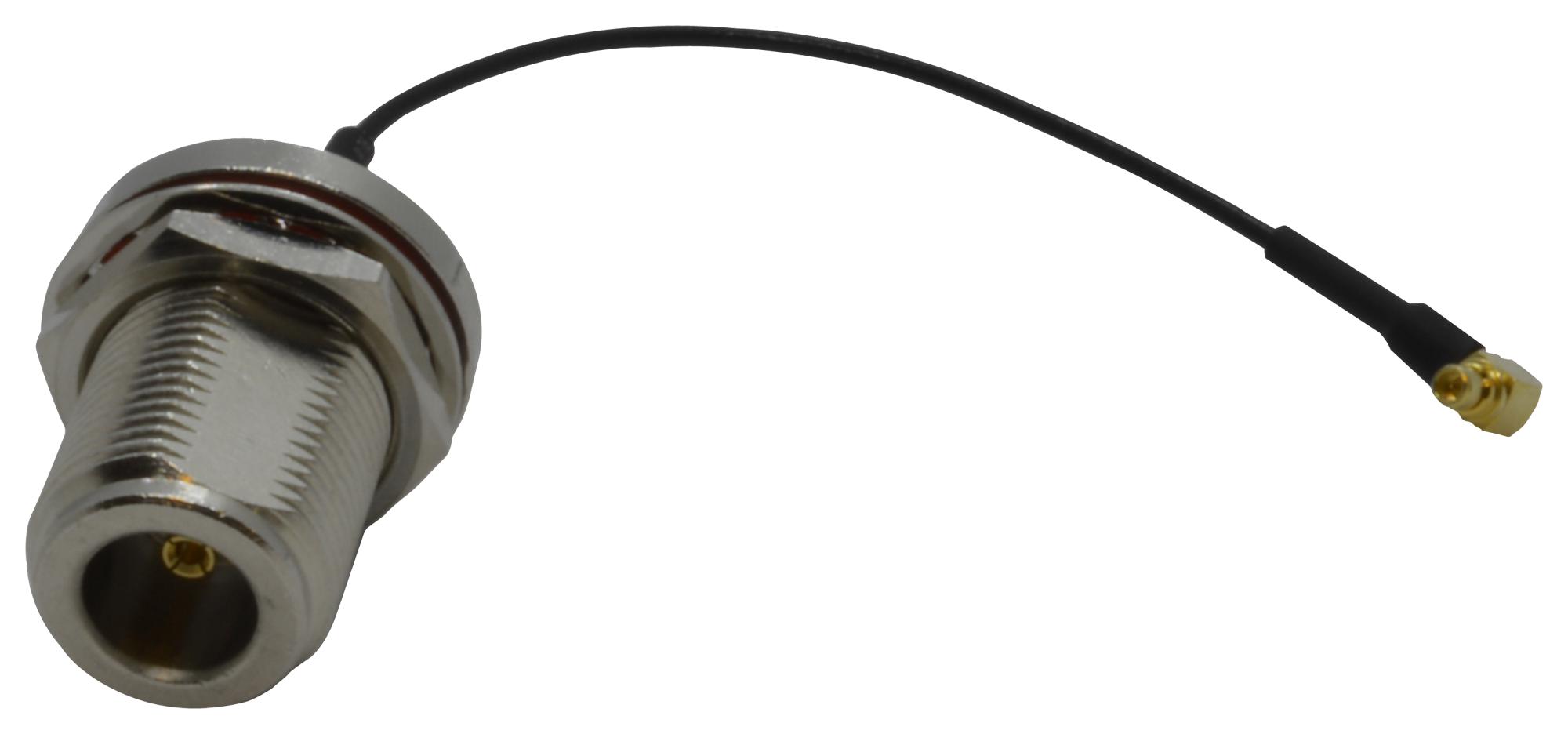

MULTICOMP-PRO MC001893 RF Coaxial Cable Assembly
This RF coaxial cable assembly features an IP67 N-Type bulkhead jack and a right-angle MMCX plug, suitable for high-frequency applications up to 6 GHz. It includes a 100mm black cable, crimp connectors, and heat shrink tubing for secure connections and environmental protection. The assembly offers low insertion loss of -1.1 dB at 6 GHz, VSWR of 1.65:1 max, impedance of 50 ohms, and is RoHS compliant. Ideal for rugged, outdoor, and industrial communication systems requiring waterproof and vibration-resistant connectors.
MULTICOMP-PRO MC001893 RF Coaxial Cable Assembly Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 6.0 GHz
- Working Voltage: 170 Vrms Max
- Dielectric Withstanding Voltage: 500 Vrms Max
- Insulator Resistance: ≥1000 MΩ
- VSWR: 1.65:1 Max
- Insertion Loss: -1.1 dB Max
- Connector Types: N Bulkhead Jack, MMCX RYA Plug
- Cable Diameter: 1.37 mm
- Cable Length: 100 mm
- Mounting Hole Diameter: 6.0 mm
- Material: Waterproof, RoHS compliant materials
- Temperature Range: -55°C to +85°C
- Cable and connector withstand outdoor environmental conditions
- Includes heat shrink tubes for insulation and strain relief
Buy the Farnell Series RF Coaxial Cable Assembly: MC001893
Enhance your connectivity with this waterproof RF coaxial cable assembly featuring an IP67 N-Type bulkhead jack and MMCX right-angle plug. Designed for high-frequency applications up to 6 GHz, the assembly offers low insertion loss of -1.1 dB, VSWR of 1.65:1 max, and RoHS compliance. The included 100mm black cable, heat shrink tubes, and crimp connectors ensure durable, vibration-resistant, and waterproof connections. Perfect for outdoor, industrial, and rugged environments requiring stable RF performance and dependable sealing.
Order your Farnell Series RF Coaxial Cable Assembly MC001893 today and ensure reliable, waterproof performance for your outdoor and industrial RF projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001893?
You can click on the BUY or RFQ button to purchase MC001893 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001893?
You can download the MC001893 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001893?
MULTICOMP-PRO
