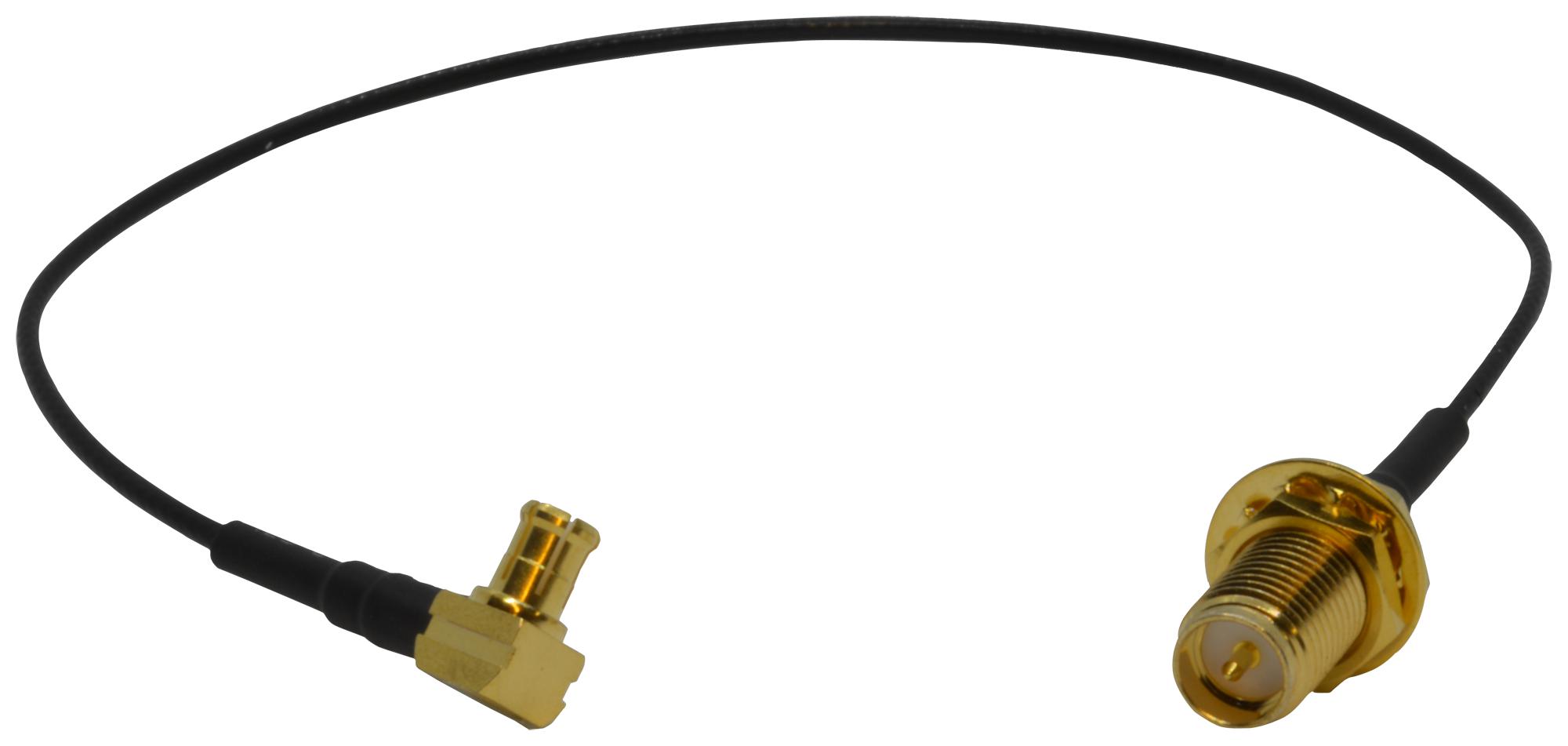

MULTICOMP PRO MC001900 RF Coaxial Cable Assembly
This product features a high-quality RF coaxial cable assembly designed for efficient signal transmission at frequencies up to DC 6.0 GHz. The assembly includes a RPSMA bulkhead jack-to-MCX right angle plug with a 200mm long black cable, suitable for RF, coaxial, and communication applications. It incorporates precision connectors with impedance of 50 ohms, rugged construction, and RoHS compliance. The assembly's compact design ensures reliable electrical performance, minimal insertion loss (-1.5 dB max), and excellent dielectric withstand voltage up to 750Vrms, making it ideal for high-frequency, low-loss signal transmission in various electronic and communication devices.
MULTICOMP PRO MC001900 RF Coaxial Cable Assembly Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 6.0 GHz
- Working Voltage: 170 Vrms Max.
- Dielectric Withstanding Voltage: 750 Vrms Max.
- Insulator Resistance: 1000 MΩ Min.
- Cable Length: 200 mm
- Connectors: RPSMA bulkhead jack to MCX right angle plug
- Insertion Loss: -1.5 dB Max.
- Construction: Rugged, RoHS compliant
- Material: High-quality RF materials, Black cable insulation
- RoHS Compliance: Yes
Buy the Multicomp Series RF Coaxial Cable: MC001900
Order the Multicomp RF coaxial cable assembly featuring a RPSMA bulkhead jack and MCX right angle plug. This 200mm cable provides superior performance up to 6 GHz frequency range, with excellent dielectric and voltage ratings. Its rugged construction and RoHS compliance make it ideal for high-frequency communication, test equipment, and electronic devices. Quickly purchase online and enjoy fast delivery, reliable connectivity, and durable performance in your RF and coaxial applications. Enhance your electronic setup today with this essential connector assembly.
Get Multicomp MC001900 today—designed for reliable and low-loss high-frequency signal transmission in electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001900?
You can click on the BUY or RFQ button to purchase MC001900 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001900?
You can download the MC001900 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001900?
MULTICOMP PRO
