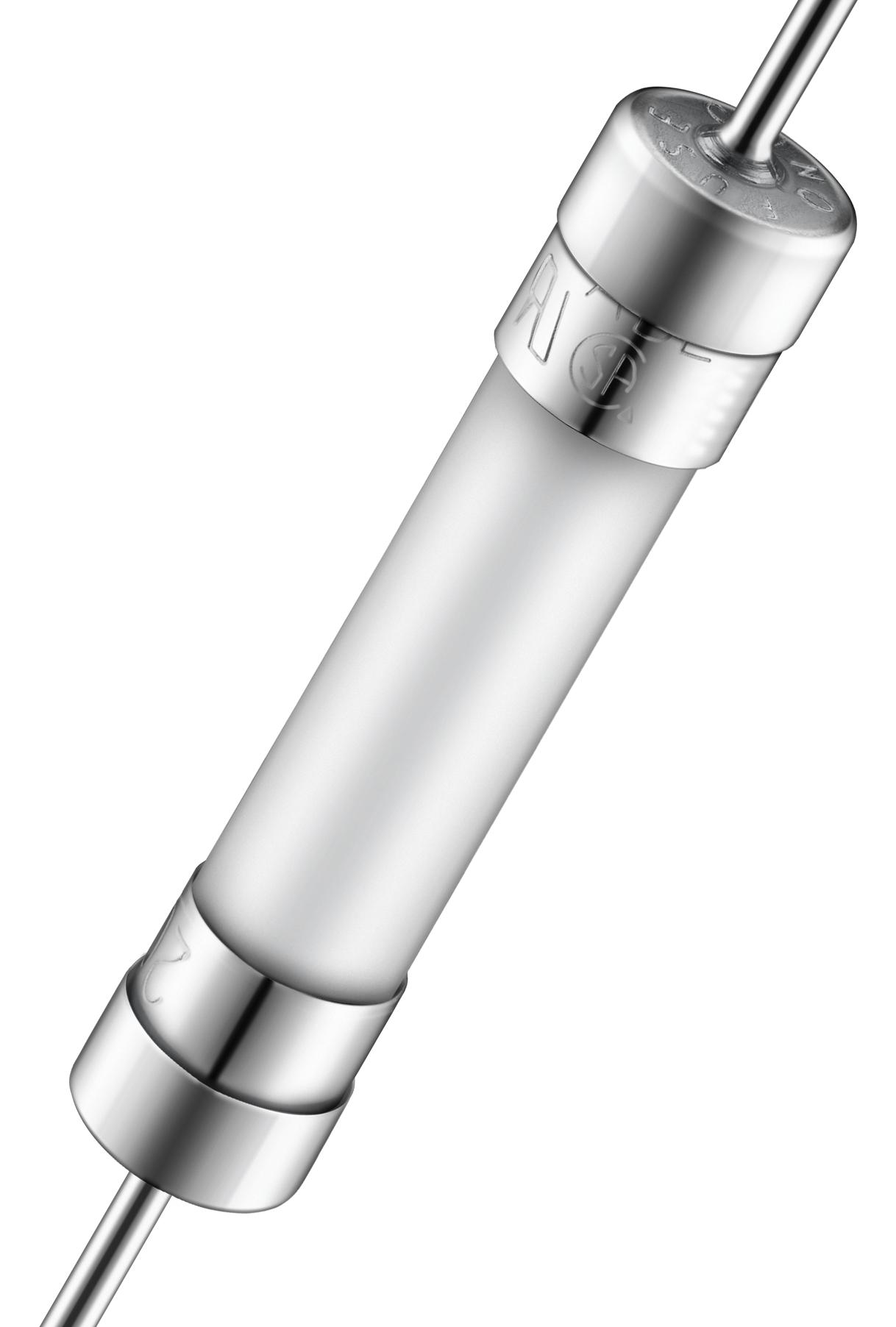

MULTICOMP PRO MP004290 Ceramic Cartridge Fuse
The fast acting ceramic cartridge fuse with axial leads measures 6.3mm in diameter and 32mm in length, designed for reliable circuit protection in various industrial applications. It features a ceramic body with nickel-plated brass caps, supporting a wide current range from 500mA up to 30A and voltage ratings up to 250V AC/DC. Certified by UL, CSA, PSE, and recognized for US and Canada standards, it offers high interrupting ratings up to 10000A at 125V AC, ensuring safety and durability in demanding environments.
MULTICOMP PRO MP004290 Ceramic Cartridge Fuse Specifications:
- Body Material: Ceramic
- Cap Material: Nickel-plated Brass
- Diameter: 6.3mm
- Length: 32mm
- Rated Current: 500mA to 30A
- Voltage Rating: 125V AC/DC up to 250V AC/DC
- Interrupting Rating: 10,000A at 125V AC, 400A at 125V DC
- Operating Temperature: -55°C to 125°C
- Certifications: UL Listed, CSA Certified, PSE Approved
- Thread Size (Cap Diameter): 6.35mm
- Lead Wire Diameter: 0.8mm
- Lead Length: 38mm ± 2mm
Buy the Multicomp Series Ceramic Fuse High Interrupting Ratings: MP004290
Purchase the Multicomp ceramic cartridge fuse online today—ideal for circuit protection with high interrupting ratings and certified safety standards. This axial leaded fuse measures 6.3mm x 32mm and supports current ratings from 500mA to 30A, with voltage capabilities up to 250V AC/DC. Its ceramic body and nickel-plated brass caps ensure durability, stability, and high-performance operation in commercial and industrial electrical systems. Buy now for reliable, fast-acting protection that meets UL, CSA, and PSE standards, ensuring safety and compliance in your installations.
Get Multicomp ceramic cartridge fuse today—built for precision circuit protection and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004290?
You can click on the BUY or RFQ button to purchase MP004290 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004290?
You can download the MP004290 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004290?
MULTICOMP PRO
