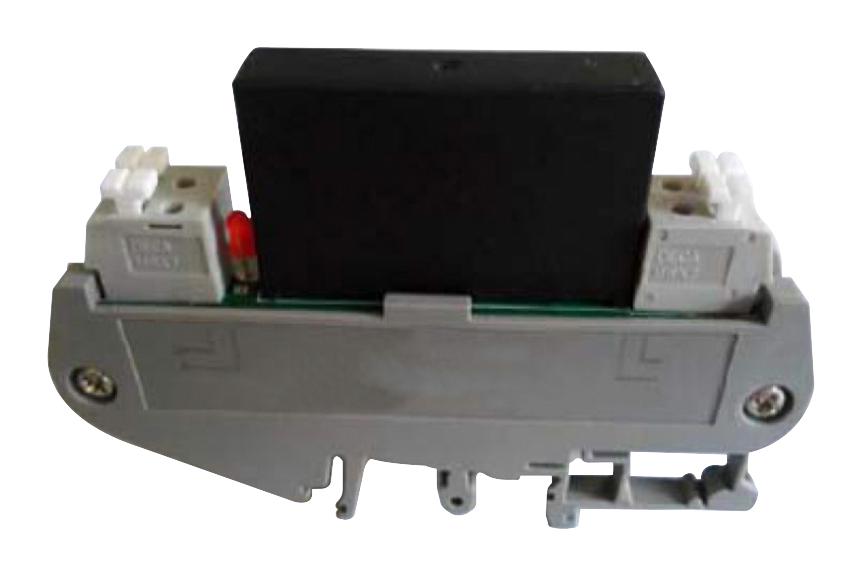

MULTICOMP PRO MC002263 Solid State Relay Module
This single-channel DIN rail-mounted solid state relay module is designed for AC loads ranging from 24V to 280V with a current capacity of 3A or 5A. It features DC control voltages of 4-15V, 15-32V, or 4-32V, and provides excellent electrical isolation with dielectric strength of 4000VACrms. Suitable for automation, control systems, elevators, and entertainment equipment, it offers zero crossing or random turn-on options, quick switching times, and robust safety features. Its compact design and DIN rail mounting ensure easy installation in industrial settings, making it ideal for reliable load switching applications.
MULTICOMP PRO MC002263 Solid State Relay Module Specifications:
- Load Current: 0.1A to 5A
- Control Voltage Range: 4~15V DC, 15~32V DC, 4~32V DC
- Maximum Input Current: 25mA
- Output Voltage Range: 240V AC
- Transient Over Voltage: 600Vpk
- Dielectric Strength Input/Output: 4000Vrms
- Insulation Resistance Input/Output: 1000MQ
- Ambient Operating Temperature Range: -30°C to +80°C
- Dimensions: not specified
- Weight: 55g
- Leakage Current: 5mA
- Maximum On-State Voltage Drop: 1.5Vrms
- Control Voltage Must Turn-On: 4V to 15V DC
- Maximum Surge Current: 160A
- Maximum Off-State dv/dt: 200V/μs
- Isolation Voltage: 4000VACrms
Buy the Multicomp Series Solid State Relay AC Output: MC002263
Enhance your automation and control systems with this high-quality solid state relay module. Designed for DIN rail mounting, it supports AC loads up to 280V and currents of 3A or 5A. Featuring DC control voltages from 4V to 32V and excellent electrical isolation of 4000VACrms, it provides fast switching with zero crossing or random turn-on capabilities. Its compact, robust design ensures easy installation and reliable operation in industrial automation, elevator controls, and entertainment equipment. Optimize your system's efficiency today by purchasing this highly dependable relay online.
Get Multicomp series MC002263 solid state relay today—built for reliable load switching and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002263?
You can click on the BUY or RFQ button to purchase MC002263 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002263?
You can download the MC002263 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002263?
MULTICOMP PRO
