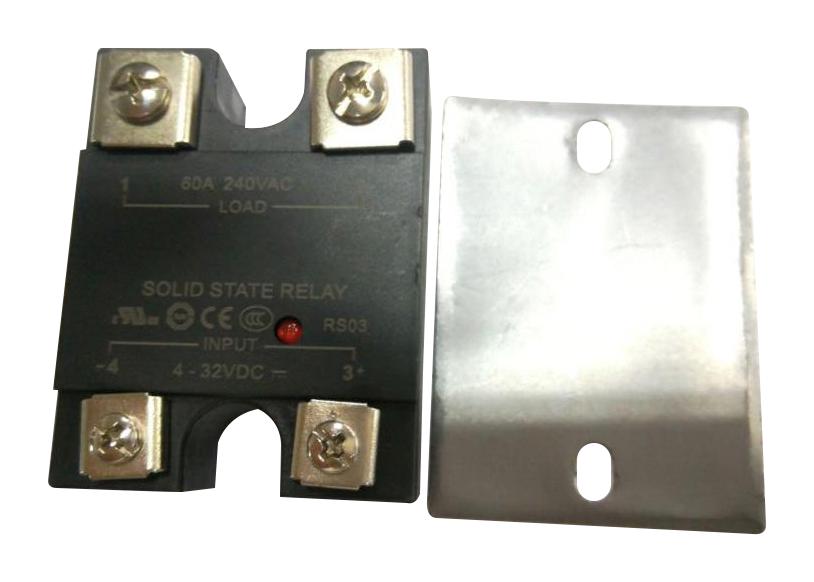

MULTICOMP PRO MC002305 Solid State Relay
This high-capacity panel mount solid state relay is designed for single-phase AC loads, supporting voltages up to 600V AC and load currents from 10A to 125A. It features zero crossing or random-on operation, with built-in options for MOV or TVS surge protection. Ideal for industrial automation, HVAC systems, and machinery, it offers excellent dielectric strength of 24,000V RMS, quick switching times, and robust construction. The relay's versatile control voltage ranges from 4-32V DC and 90-280V AC, making it suitable for resistive, inductive, or capacitive loads in demanding environments.
MULTICOMP PRO MC002305 Solid State Relay Specifications:
- Load Voltage Range: 240V AC to 600V AC
- Load Current: 10A to 125A
- Control Voltage Range: 4-32V DC, 90-280V AC
- Switching: Zero Crossing or Random-on
- Maximum Surge Current: up to 1250A (@10ms)
- Dielectric Strength: 24,000V RMS
- Switching Time: Max 40ms
- Operating Temperature: -30°C to +80°C
- Thermal Dissipation: Based on load current and heatsink
- Weight: Approx. 96g to 180g depending on model
- Certifications: RoHS Compliant
- Construction: Panel mount with ring terminal inputs
- Transient Overvoltage: Up to 600V AC peak
Buy the Buy Multicomp Pro Panel Mount Solid State Relay Part Number MC002305 Online
Purchase the Multicomp Pro Solid State Relay online today to experience dependable switching for single-phase AC loads up to 600V and 125A. Ideal for industrial automation, HVAC, and machinery, this relay features zero crossing or random-on operation, high dielectric strength, and surge protection options. With control voltages from 4-32V DC and 90-280V AC, it supports resistive, inductive, or capacitive loads. Easy to install with panel mounting, it ensures optimal performance and long-term reliability in demanding environments.
Order your Multicomp Pro SeriesMC002305 relay today and ensure reliable, high-performance switching for your industrial automation and control needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002305?
You can click on the BUY or RFQ button to purchase MC002305 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002305?
You can download the MC002305 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002305?
MULTICOMP PRO
