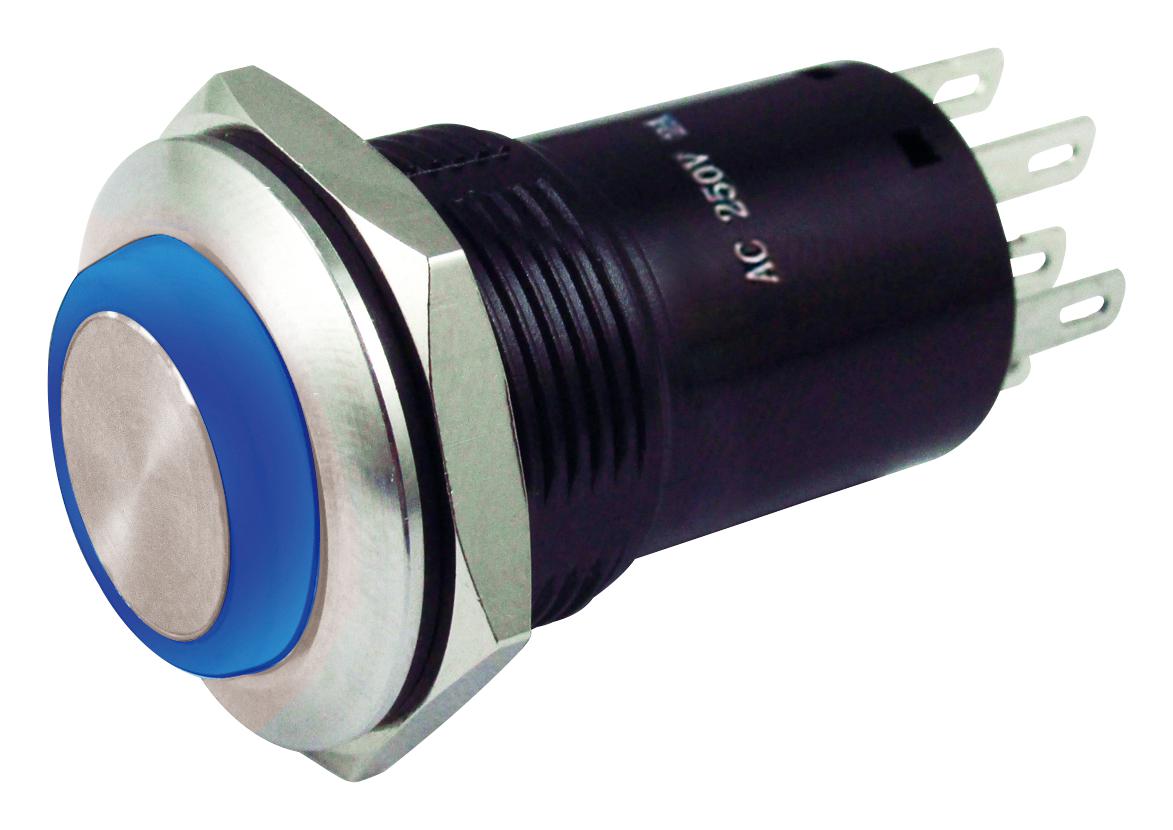

MULTICOMP PRO MC010938 Vandal Resistant Switch
The illuminated vandal resistant switch features a 19mm mounting hole, with contact blocks utilizing silver contacts for durability. It offers multiple contact configurations including 1NO + 1NC, 2NO + 2NC, and 4NO + 1NC, with LED options in blue, green, and red. Made from stainless steel, it provides high dielectric strength, low contact resistance, and excellent insulation resistance. Rated for 250V AC and 5A, it features an IP65 protection rating, suitable for harsh environments. Designed for applications requiring robust, vandal-resistant switches with illuminated indicators, ensuring long-term reliability and clear visibility.
MULTICOMP PRO MC010938 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V AC
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Blue / Green / Red
- Switch Operation: Maintained or Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC, 4NO + 1NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Operating limits: 200 m/S², Damage limits: 500 m/S²
- Mechanical Life: Maintained 100,000 cycles, Momentary 1,000,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: IP65
- Terminal Style: Solder terminal
- Weight: 122g
- Panel Thickness: 0.5 mm to 6 mm
- Terminal Width: 3 x 0.5 mm
- Gasket: Included
- Hex Nut: Included
Buy the Multicomp Series Vandal Resistant Illuminated Switch: MC010938
Order the multicomp vandal resistant illuminated switch MC010938 online now to ensure reliable, vandal-proof operation in demanding industrial and outdoor applications. Its stainless steel construction offers durability, IP65 protection guards against dust and water, and multiple LED color options improve visibility. With a variety of contact configurations and a rated voltage of 250V AC at 5A, this switch guarantees long-lasting performance and excellent electrical integrity. Perfect for control panels, security systems, and outdoor equipment, it’s a dependable choice for challenging environments.
Get multicomp series vandal resistant illuminated switch MC010938 today—built for durability in harsh environments.
