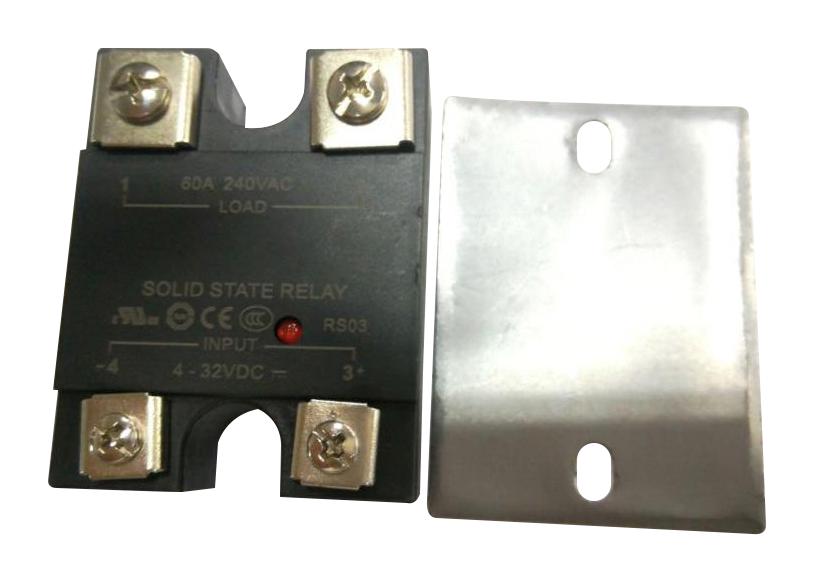

MULTICOMP-PRO MC002321 Solid State Relay
These panel mount solid state relays are designed for single-phase AC output applications, utilizing TRIAC or SCR outputs. They support resistive, inductive, and capacitive loads with control voltages from 4-32V DC or 90-280V AC, and load voltages up to 600V AC. Featuring zero crossing and random-on modes, they are suitable for industrial uses such as temperature chambers, machinery, and HVAC systems. With dielectric strength of 24,000V and options for integrated MOV or TVS, these relays ensure high reliability and safe operation in demanding environments.
MULTICOMP-PRO MC002321 Solid State Relay Specifications:
- Control Voltage Range: 4-32V DC and 90-280V AC
- Load Voltage Range: 240V AC to 600V AC
- Load Current: 10A to 125A
- Maximum Surge Current at 10ms: 60A to 1250A
- Dielectric Strength: 24,000V AC RMS
- Switching Modes: Zero Crossing and Random-on
- Maximum Off-state Leakage Current: 5mA at Rated Voltage
- Operating Temperature Range: -30°C to +80°C
- Storage Temperature Range: -30°C to +100°C
- Weight: 96g to 180g depending on configuration
Buy the Multicomp Pro 002321 – Reliable Industrial Solid State Relay for Industrial Applications
Enhance your industrial control systems with our reliable solid state relays, supporting loads up to 600V AC and currents up to 125A. Designed for durability and efficiency, these relays feature zero crossing and random-on modes, suitable for resistive, inductive, and capacitive loads. With control voltages from 4-32V DC and 90-280V AC, they offer flexible integration into various applications such as HVAC, machinery, and temperature chambers. Trust our high-quality relays for safe, efficient, and long-term operation in demanding environments.
Get Multicomp Pro 002321 today—built for precision and long-lasting durability in industrial and automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002321?
You can click on the BUY or RFQ button to purchase MC002321 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002321?
You can download the MC002321 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002321?
MULTICOMP-PRO
