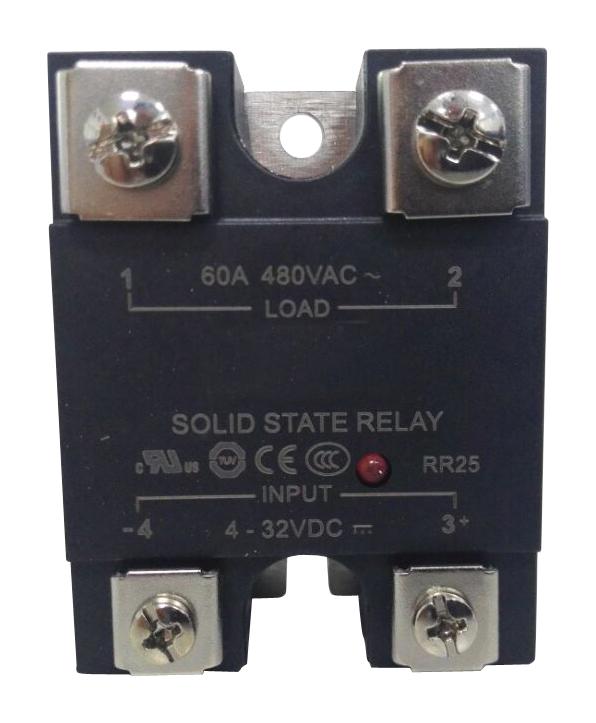

MULTICOMP PRO MC002328 Solid State Relay
This single-phase solid state relay is designed for industrial applications where reliable switching of resistive, inductive, or capacitive loads is required. It features a wide control voltage range of 4-32V DC or 90-280V AC and load voltage options up to 600V AC. With load currents from 10A to 125A, it includes features like zero crossing or random-on switching, dielectric strength of 24,000V, LED indicator, and optional built-in MOV or TVS protection. Suitable for HVAC, machinery control, and food processing equipment, this relay offers durable, efficient, and safe operation in demanding environments.
MULTICOMP PRO MC002328 Solid State Relay Specifications:
- Load Current Range: 10A to 125A
- Load Voltage Range: 240V AC to 600V AC
- Control Voltage: 4-32V DC or 90-280V AC
- Switching Type: Zero Crossing or Random-on
- Dielectric Strength: 24,000V AC rms
- Maximum Surge Current: Up to 1250A at 10ms
- Transient Over Voltage: Up to 800V pk
- Leakage Current: 5mA at rated voltage
- Operating Temperature Range: -30°C to +80°C
- Protection: Built-in MOV or TVS options available
- Weight: Approximately 96g (standard version), 180g (high profile), 100g (IP20 cover)
- Dimensions: Varied, specific to model, typically around W=9.5mm to 12mm, length approximately 20-45mm
- Standards: RoHS compliant
Buy the Buy Multicomp Pro Panel Mount Solid State Relay Part Number MC002328 Online
Secure your industrial control systems by purchasing the reliable Multicomp Pro Solid State Relay MC002328 online. Designed for high-current loads up to 480V AC, this relay features zero crossing switching, LED indicator, and optional protection features like MOV or TVS. Its robust construction ensures safe and efficient operation in HVAC systems, machinery, and food processing equipment. With convenient online ordering, quick delivery, and excellent warranty, this relay provides the dependable control solution your projects require for optimal performance and longevity.
Order your Multicomp Pro SeriesMC002328 high-load capacity solid state relay today and ensure reliable performance for demanding industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002328?
You can click on the BUY or RFQ button to purchase MC002328 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002328?
You can download the MC002328 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002328?
MULTICOMP PRO
