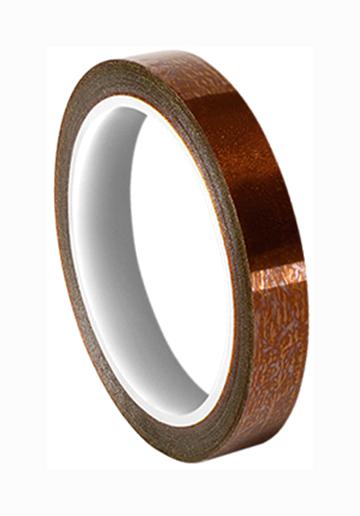

MULTICOMP-PRO MP700341 Polyimide Silicone Tape
Polyimide film combined with silicone adhesive, designed for high-temperature masking applications. It is used to protect gold fingers on printed circuit boards during wave soldering or solder dip processes. Additionally, it serves as an electrical insulation material for transformers, motors, coils, and PCB manufacturing. This flexible, thin tape withstands temperatures up to 500°F, providing excellent electrical insulation and clean removal without adhesive residue after heat or chemical exposure. Ideal for electronic and electrical applications requiring high-temperature masking and insulation protection.
MULTICOMP-PRO MP700341 Polyimide Silicone Tape Specifications:
- Total Thickness: 2.5 mils
- Adhesive Thickness: 1.5 mils
- Film Thickness: 1 mil
- Adhesive Colour: Amber
- Operating Temperature Range: -40°F to 500°F
- Adhesion to Steel: 22 oz/inch
- Break Strength: 30 Ibs/inch
- Dielectric Strength: 6800 volts
- Elongation: 60%
- Shelf Life: One year when stored below 76°F in a dry place
Buy the Multicomp Series Polyimide Silicone Tape: MP700341
Purchase the Polyimide Silicone Tape online now and enjoy high-temperature resistance up to 500°F, excellent electrical insulation, and clean removal after exposure to heat or chemicals. Perfect for protecting gold fingers on printed circuit boards during wave soldering or solder dip. This flexible, conformable tape easily molds to uneven surfaces, providing reliable electrical insulation for transformers, motors, coils, and PCB applications. With a shelf life of one year when stored properly, it’s the ideal choice for professional electronics assembly and manufacturing needs.
Order your Multicomp Series MP700341 high-temperature masking tape today and ensure reliable protection during soldering and PCB manufacturing processes.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP700341?
You can click on the BUY or RFQ button to purchase MP700341 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP700341?
You can download the MP700341 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP700341?
MULTICOMP-PRO
