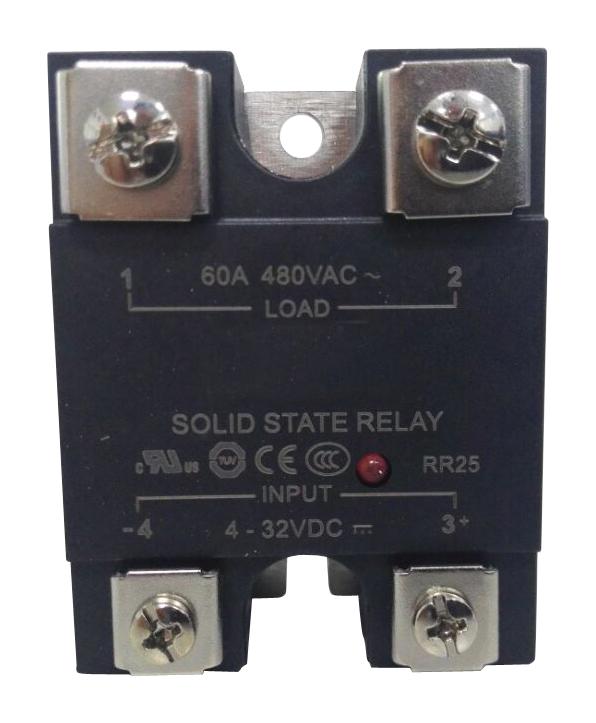

MULTICOMP PRO MC002347 Panel Mount Solid State Relay
The panel mount solid state relay is designed for single-phase AC output applications, supporting voltages from 240V to 480V AC with rated currents of 25A or 60A. This relay features internal SCR inverse parallel output, zero switching, and robust protection including RC & MOV, short circuit, open circuit, and error detection functions. It offers insulation with dielectric strength over 4000V rms and can handle surge currents up to 600A for 10ms. Compact and suitable for industrial use, it ensures reliable control of resistive, inductive, or capacitive loads in demanding environments.
MULTICOMP PRO MC002347 Panel Mount Solid State Relay Specifications:
- Rated Current: 25A or 60A
- Output Voltage Range: 240V AC or 480V AC
- Maximum Surge Current: 600A for 10ms
- Output Voltage Range: 150-280V AC (240V model), 150-530V AC (480V model)
- Maximum On/Off Time: 10ms
- Input Control Voltage: - Trigger: 0~12V DC (negative), 18~32V DC (positive)
- Input Power Supply Voltage: 18V DC ~ 32V DC
- Dielectric Input/Output Strength: >4000Vrms
- Insulation Resistance: 1000MQ at 500V DC
- Ambient Operating Temperature: -30°C to +80°C
- Weight: 100g
Buy the Multicomp Series Panel Mount Solid State Relay: MC002347
Purchase the reliable Multicomp SeriesMC002347 panel mount solid state relay online today. Engineered for efficient switching of single-phase AC loads up to 480V, it offers high-current capacity of 25A or 60A, along with SCR inverse parallel output and comprehensive protection features. Its compact design and high dielectric strength make it perfect for industrial applications requiring dependable load control, resistive or reactive loads. Get enhanced performance, robust construction, and fast switching times by buying online now and upgrading your automation systems.
Order your Multicomp SeriesMC002347 panel mount solid state relay today and ensure reliable switching with advanced protection features for industrial automation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002347?
You can click on the BUY or RFQ button to purchase MC002347 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002347?
You can download the MC002347 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002347?
MULTICOMP PRO
