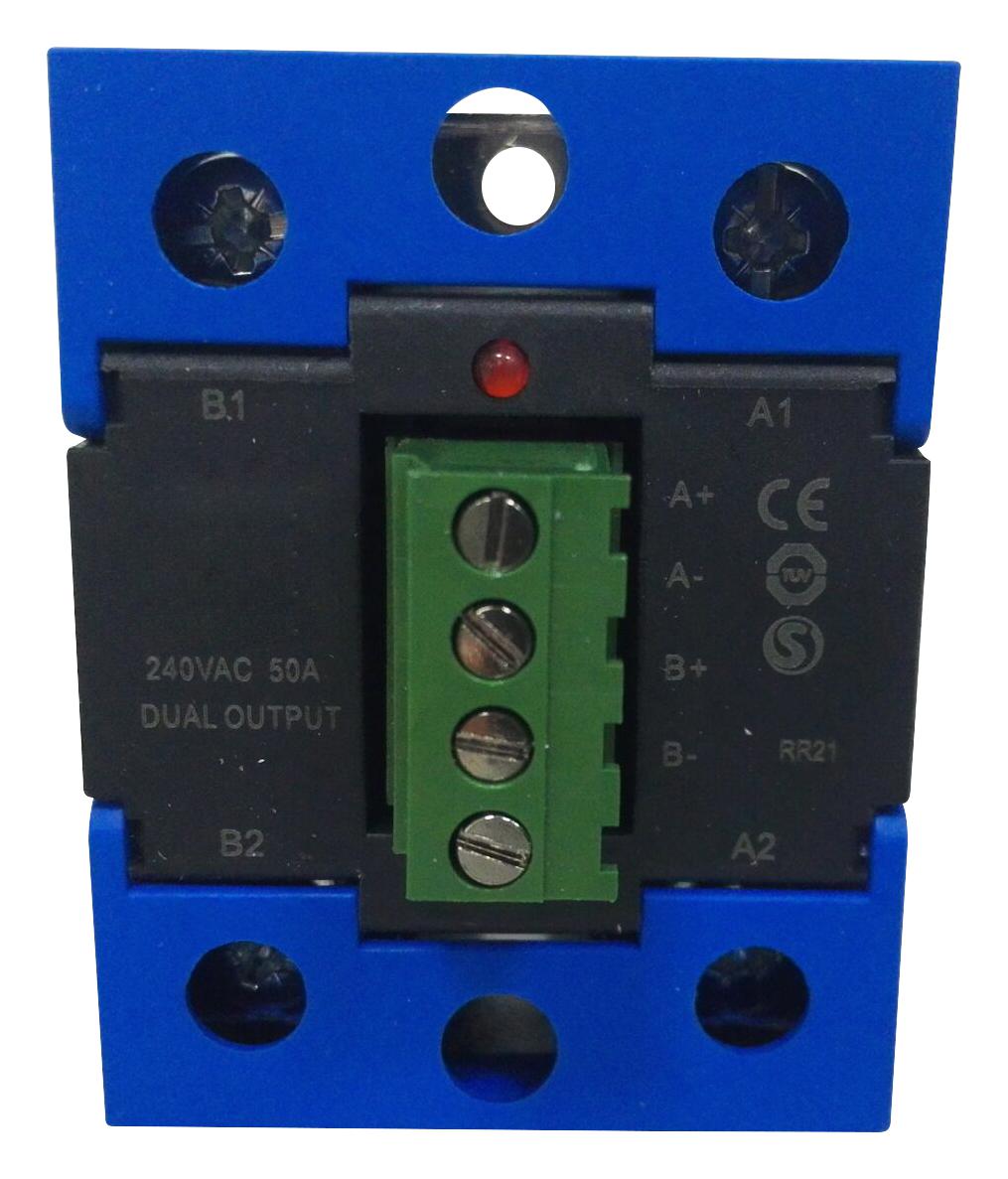

MULTICOMP-PRO MC002350 Solid State Relay
The industrial 2 channel relay with SCR output by Multicomp Pro is designed for reliable switching in various industrial applications. It supports resistive, inductive, or capacitive loads with a voltage range of 24-530V AC and rated output currents of 25A or 50A. Suitable for applications like high-low temperature chambers, HVAC, lighting, and machinery, it features zero crossing or random-on switching, DC input control, and optional safety cover protection, ensuring efficient and safe operation where dependable solid state relays are essential.
MULTICOMP-PRO MC002350 Solid State Relay Specifications:
- Load Voltage Range: 24-530V AC
- Output Current Options: 25A and 50A
- Control Voltage Range: 4-15V DC, 15-32V DC
- Must Turn-on Voltage: 4V DC
- Must Turn-off Voltage: 1V DC
- Maximum Input Current: 20mA
- Maximum Surge Current: 50A (@10 ms), 300A
- Maximum Transient Over Voltage: 1200Vpk
- Maximum Off-State Leakage: 5mA
- Maximum On-State Voltage Drop: 1.5V
- Isolation Voltage: 4000Vrms (Input/Output)
- Ambient Operating Temperature: -30°C to +80°C
- Ambient Storage Temperature: -30°C to +100°C
- Physical: Panel mount with screw terminals (IP20)
- Dimensions: Not specified, external datasheet recommended
- Certifications: RoHS Compliant
Buy the Multicomp Pro MC002350 – Reliable Solid State Relay for Industrial Applications
Enhance your industrial automation setup with the reliable Multicomp Pro MC002350 solid state relay, supporting load voltages up to 530V AC and currents of 50A. Designed for resistive, inductive, and capacitive loads, it offers zero crossing or random-on switching for precise control. Its robust construction and compliance with RoHS standards ensure safety and durability in demanding environments. Purchase online today to ensure your systems operate efficiently and reliably with this high-performance industrial relay, ideal for HVAC, machinery, and lighting controls.
Order your Multicomp Pro MC002350 series solid state relay today and ensure efficient, safe switching for your industrial automation projects.
