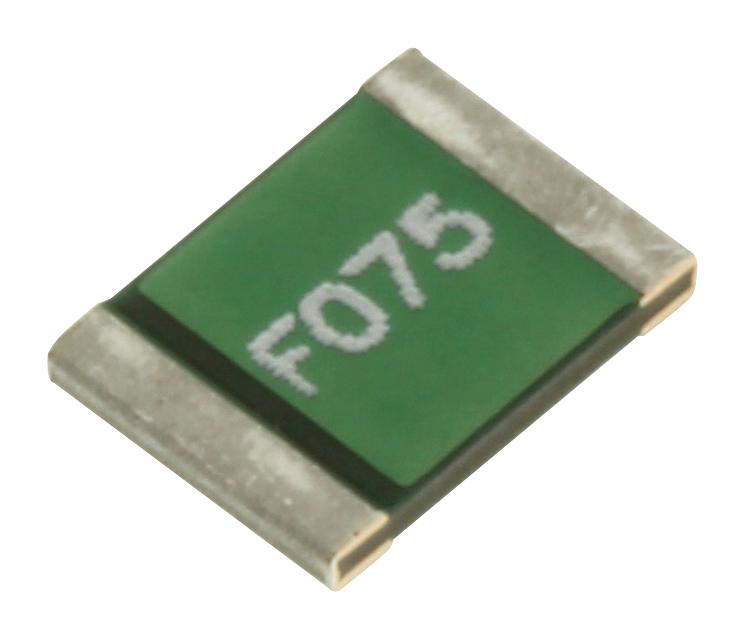

MULTICOMP PRO MC33193 PTC Fuse
This surface mountable PTC resettable fuse from Multicomp Pro provides reliable overcurrent protection in electronic circuits. Designed with lead-free soldering compatibility, it meets EIA and ANSI/J-std-002 standards. Operating currents range from 100mA to 2A, with maximum voltage ratings between 6V and 60V, and a temperature range from -40°C to 85°C. Its robust construction ensures thermal stability and efficient current limiting. Suitable for various compact electronic applications, this fuse offers excellent thermal and electrical performance, making it ideal for modern, RoHS-compliant electronic designs requiring high reliability and safety features.
MULTICOMP PRO MC33193 PTC Fuse Specifications:
- Lead Material: Pure Tin
- Soldering Characteristic: Meets EIA specs. RS 186-9E, ANSI/J-std-002 Category 2
- Operating Current: 100mA to 2A
- Maximum Voltage: 6V to 60V
- Temperature Range: -40°C to 85°C
- Profile Feature: Pb-Free Assembly
- Average Ramp-Up Rate: 3°C/second Max
- Preheat Temperature Min: 150°C, Max: 200°C
- Preheat Time: 60-180 Seconds
- Time Maintained above TL: 217°C
- Peak Temperature: 260°C
- Reflow Profile: Max soldering temperature and profile guidelines
- Dimensions: Length 4.37-4.73mm, Width 3.07-3.41mm, Height 0.35-0.65mm
- Storage Environment: < 30°C/60%RH
Buy the Buy Multicomp Pro PTC Resettable Fuse Part Number MC33193 Online
Purchase the reliable Multicomp Pro PTC Resettable Fuse MC33193 online today. Engineered for high performance and safety, this fuse offers overcurrent protection in compact, RoHS-compliant designs. Its lead-free construction ensures compliance with environmental standards, while the broad current and voltage ratings make it versatile for various electronic applications. Simplify your assembly process with components that meet industry standards for soldering and thermal management. Secure your projects with this trusted protection device, ensuring durability and safe operation in demanding conditions.
Order your Multicomp Pro MC33193 PTC Resettable Fuse today and ensure your electronic circuits are protected with high-reliability safety features.
